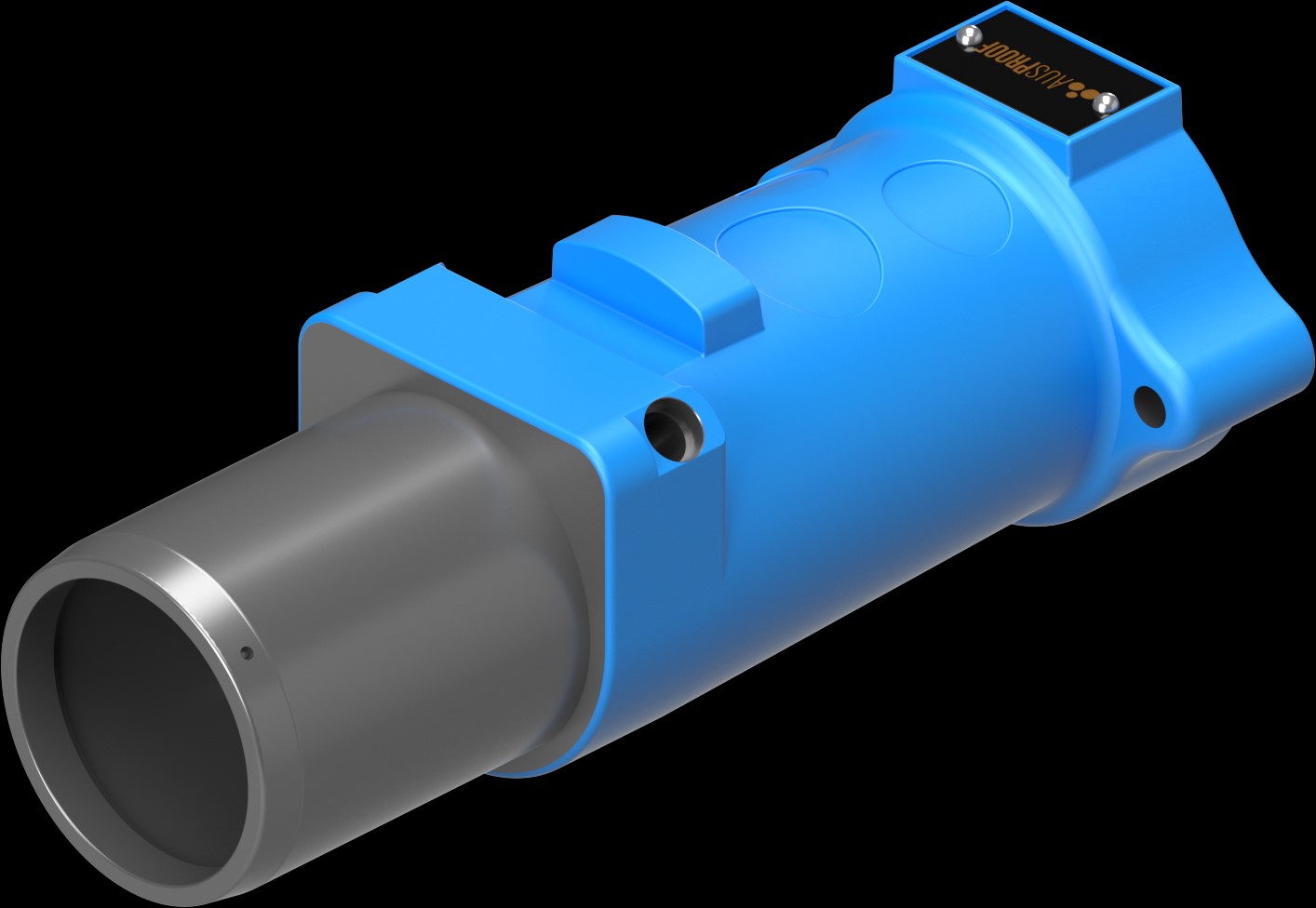

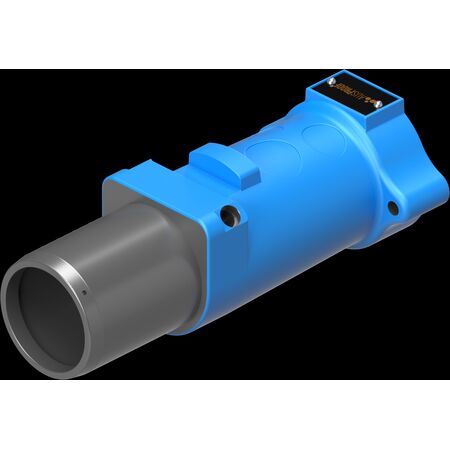

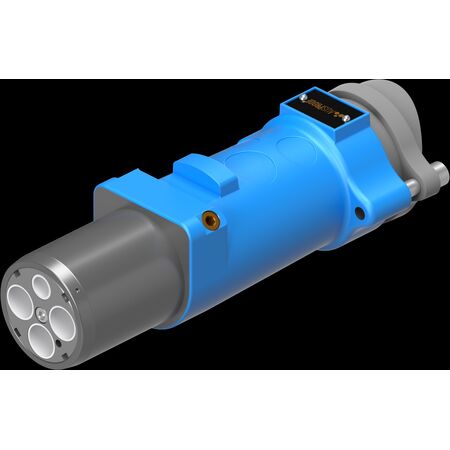

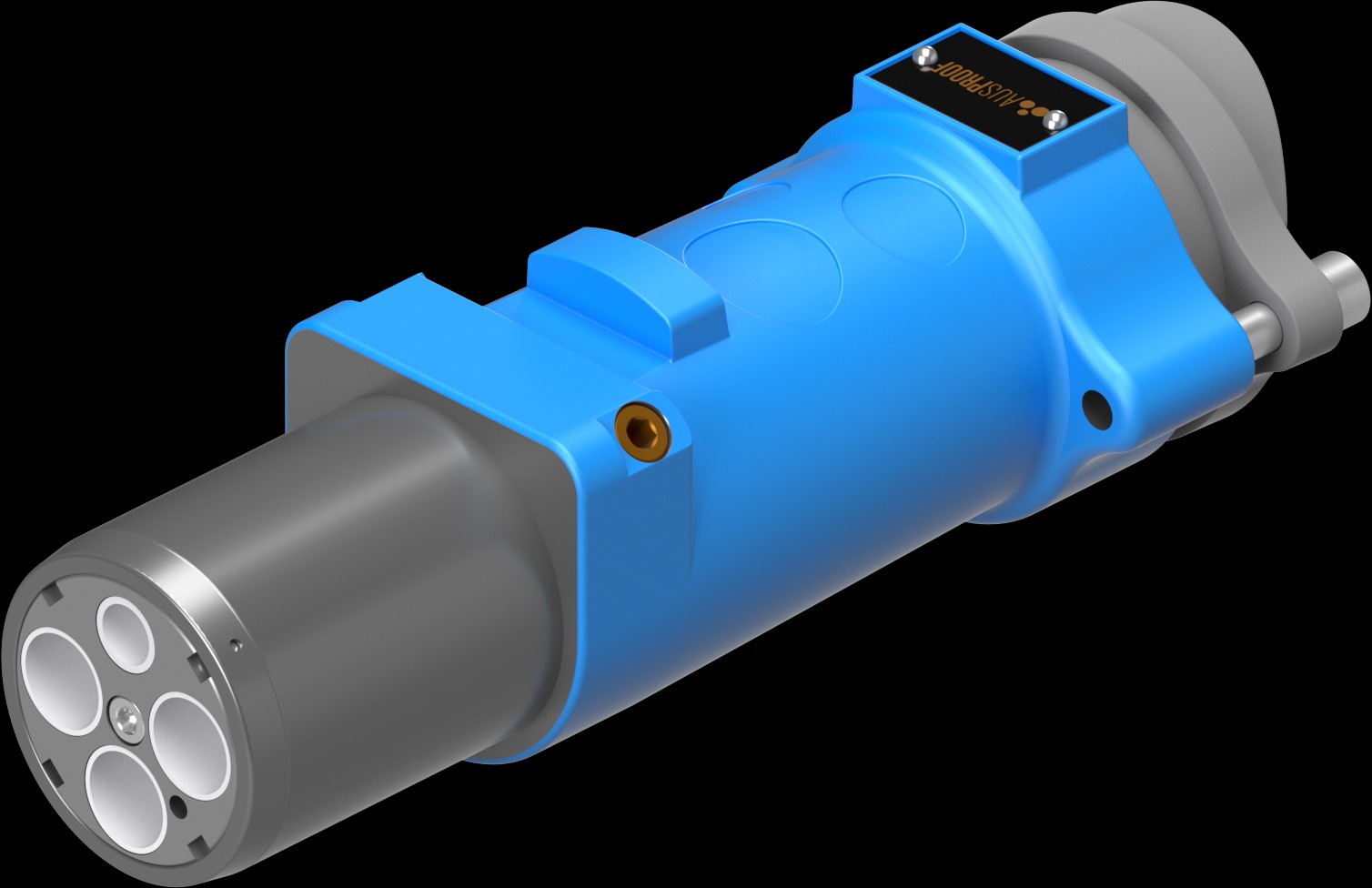

150A 4P Industrial Plug | 660-1100V | IP55 Ingress Protection | Quick Release by Ausproof
150A 4P industrial plug designed for 660-1100V applications, featuring IP55 ingress protection and a quick release mechanism. Ideal for mining, tunnelling, and hazardous commercial installations, this plug ensures safety and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PS 1100V 150A 4P Plug (90) 16-C 30-35-G (275.1)
Brand: Ausproof
SKU: RS2225
Alternatively Known As: 150 Amp 4 Pole Industrial Plug, Flameproof Electrical Plug, Ex-certified Mining Plug, High Voltage Industrial Plug
Technical Specifications
- Voltage Range: 660 to 1,100 Volts
- Current Rating: 150 Amps
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 Tests of 12.5kA for 0.2 seconds
- Through Fault Current (Earth): 2 Tests of 4.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 4.2kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 150A operation
- Dimensions (H x L x W): 250mm x 300mm x 150mm
- Weight: 4.1 kg
Key Features
- Quick Release mechanism for easy disconnection
- Single piece contacts to prevent hot joints
- Easy termination and flameproof repair on-site
- Full solid earth connectivity throughout the product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover included
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation and maintenance must be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance and safety.
Applications
- Mining and tunnelling operations
- Commercial electrical installations
- Group 1 hazardous environments requiring flameproof equipment
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof design enhances safety, reducing risk of environmental hazards
- Easy on-site repair minimizes waste and downtime
Warranty Information
Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.
Available Now
The Ausproof PS 1100V 150A 4P Plug is available for immediate purchase, ideal for mining, tunnelling, and hazardous commercial electrical applications.
