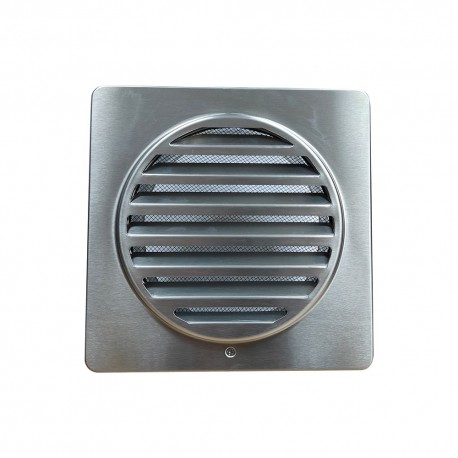

150mm 304 S/S External Wall Vent BAL40 Rated Ventair
150mm 304 S/S External Wall Vent BAL40 Rated by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 150mm BAL40 External Wall Grille, Bushfire-Compliant Wall Vent, Stainless Steel Exhaust Vent
Technical Specifications
- Model: V150BAL40W
- Vent Type: Square external wall vent
- Material: 304 grade stainless steel
- Duct Cut-Out: Ø150mm
- Fascia Size: 203 x 203mm
- Mesh Aperture: 2mm cinder mesh
- Bushfire Rating: BAL40 compliant
- Finish: Stainless steel
- Maintenance: Detachable panel for cleaning and maintenance
- Dimensions (H x L x W): 203mm x 68.1mm x 203mm
- Weight: 0.5 kg
Key Features
- Designed for 150mm ventilation ducting
- 304 grade stainless steel construction
- BAL40 bushfire-compliant design
- 2mm cinder mesh helps restrict ember and debris entry
- Detachable panel supports cleaning and maintenance
- Square fascia with a low-profile external appearance
- Suitable for external wall ventilation applications
Applications
- External termination for 150mm bathroom exhaust systems
- Laundry, toilet and utility-room ventilation
- Residential ventilation in bushfire-prone areas
- Commercial and domestic ducted air-extraction systems
Standards & Compliance
- BAL40 bushfire compliance for applications assessed under AS 3959:2018 Construction of buildings in bushfire-prone areas
Environmental Benefits
- 304 stainless steel is durable and recyclable, supporting extended service life and reduced replacement waste
- Passive ventilation component requiring no electrical power
- Detachable panel supports routine cleaning and maintenance, helping extend product service life
Warranty Information
Ventair warranty terms apply subject to proof of purchase and the manufacturer’s conditions. No product-specific warranty period is published for this passive wall-vent accessory; commercial use may be subject to a reduced warranty period under Ventair’s general policy.
Available Now
Available through authorised Ventair distributors in Australia.
