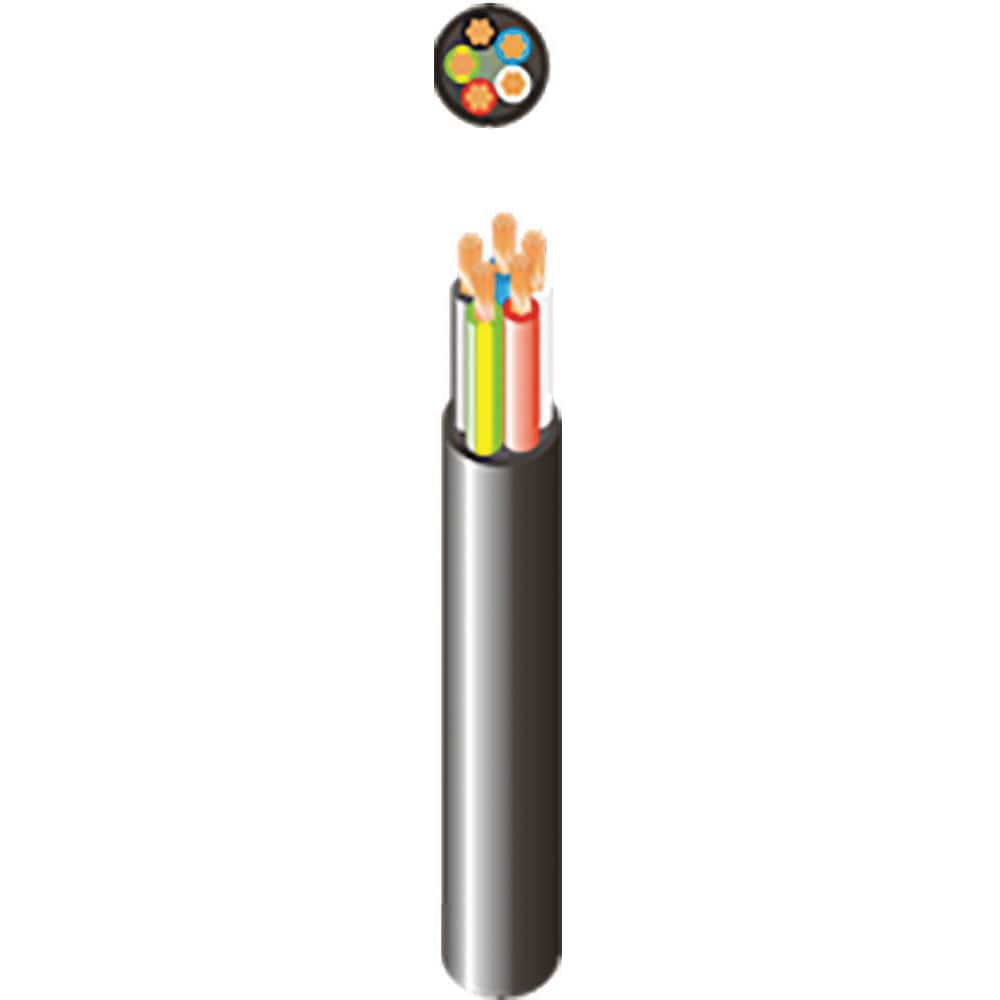

150mm 4 Core & Earth XLPE Cable | High Current Capacity | UV & Chemical Resistant | @Pack of 0.10 | by Electra Cables
The 150mm 4 Core & Earth XLPE Cable is designed for heavy-duty industrial and commercial power distribution. With a high current capacity of approximately 330A and superior XLPE insulation, it ensures excellent thermal and electrical performance. Ideal for direct burial and installation in ducts, this cable is UV, moisture, and chemical resistant, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 150mm 4 Core & Earth XLPE Cable | High Current Capacity | UV & Chemical Resistant | @Pack of 0.10 | by Electra Cables
Brand: Electra Cables
SKU: XLPE41500+E-BOR
Alternatively Known As: 150mm 4C+E XLPE Cable, 4 Core and Earth Power Cable, 150mm Mains Cable, XLPE41500+E-BOR, Heavy Duty Electrical Cable
Technical Specifications
- Conductor Size: 150mm²
- Number of Cores: 4 + Earth
- Insulation: XLPE (Cross-Linked Polyethylene)
- Sheath: PVC/LSZH
- Voltage Rating: 0.6/1kV
- Temperature Rating: -25°C to +90°C
- Current Rating: Approx. 330A (refer to AS/NZS 3008 for installation conditions)
- Standards: AS/NZS 5000.1
- UV Resistant: Yes
- Direct Burial: Yes
- Dimensions (H x L x W): 65mm x 1000mm x 65mm
- Weight: 18.5 kg
Key Features
- 150mm² 4 core plus earth configuration for high current capacity
- XLPE (Cross-Linked Polyethylene) insulation for superior thermal and electrical performance
- Suitable for direct burial and installation in ducts
- UV, moisture, and chemical resistant sheath
- Low smoke, zero halogen (LSZH) for enhanced safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations. Proper cable handling and termination tools are required.
Applications
- Industrial power distribution
- Commercial electrical installations
- Underground and above ground mains power supply
- Mining and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables for working voltages up to and including 0.6/1kV
Environmental Benefits
- Low smoke, zero halogen (LSZH) sheath reduces toxic emissions in case of fire
- Durable construction extends cable lifespan, reducing replacement frequency
- UV and chemical resistance minimizes environmental contamination
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
The Electra 150mm 4 Core & Earth XLPE Cable Per Metre is available for immediate purchase. Ideal for heavy-duty industrial, commercial, and infrastructure power distribution applications.
