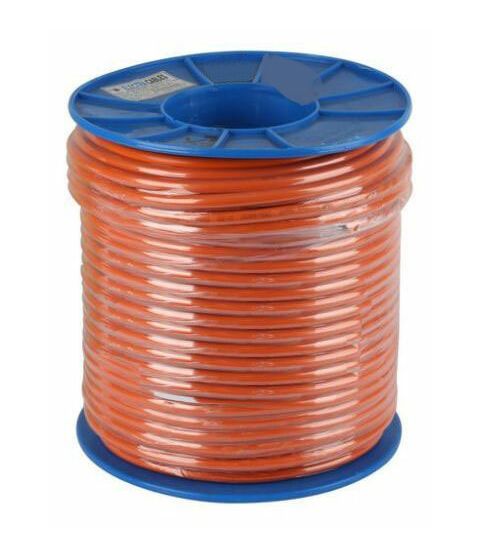

150mm Flexible Single Core XLPE Orange Circular Cable | 100m Roll | UV & Moisture Resistant | by Electra Cables
The 150mm Flexible Single Core XLPE Orange Circular Cable is designed for industrial power distribution, featuring a flexible copper conductor and XLPE insulation for superior thermal and electrical properties. With a high-visibility orange sheath, this cable is perfect for mining, construction, and renewable energy projects, ensuring safety and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 150mm Flexible Single Core XLPE Orange Circular Cable | 100m Roll | UV & Moisture Resistant | by Electra Cables
Brand: Electra Cables
SKU: FXLPE11500-BORE
Alternatively Known As: 150mm XLPE cable, 150mm orange single core cable, flexible XLPE power cable, 150mm industrial cable, 150mm electrical cable roll
Technical Specifications
- Conductor: 150mm² flexible copper
- Insulation: XLPE (Cross-Linked Polyethylene)
- Sheath: Orange PVC, circular
- Voltage Rating: 0.6/1kV
- Temperature Rating: -15°C to +90°C
- Roll Length: 100m
- Flame retardant and UV resistant
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 25mm x 100000mm x 25mm
- Weight: 120 kg
Key Features
- Flexible single core design for easy installation
- XLPE (Cross-Linked Polyethylene) insulation for superior thermal and electrical properties
- Orange circular sheath for high visibility and safety
- Suitable for fixed wiring in industrial and commercial environments
- UV and moisture resistant
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Industrial power distribution
- Mining and construction sites
- Underground and above ground installations
- Switchboards and control panels
- Renewable energy projects
Standards & Compliance
- Complies with AS/NZS 5000.1 for power cables with extruded insulation and their accessories for rated voltages from 1.9/3.3 kV up to and including 19/33 kV
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- XLPE insulation is halogen-free, reducing toxic emissions in case of fire
- Durable construction extends cable lifespan, reducing replacement frequency
- UV and moisture resistance minimizes environmental degradation
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
Available for immediate purchase. Ideal for industrial, mining, and commercial electrical installations requiring high-capacity, flexible power cabling.
