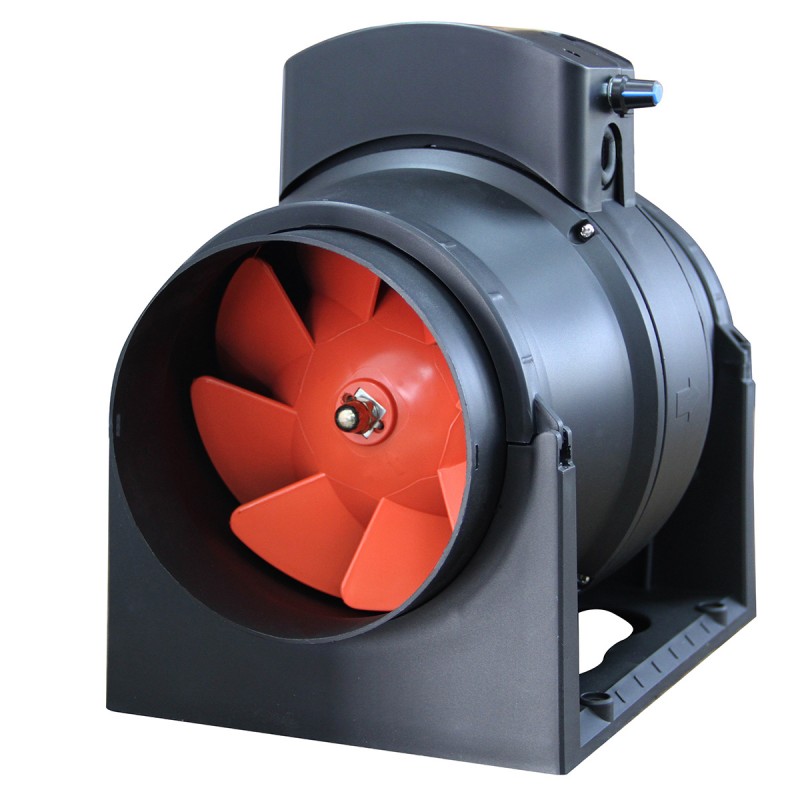

150mm Mixflow Inline Exhaust Fan | Energy Saving & Speed Control | Quiet Operation | by Ventair
The 150mm Mixflow Inline Exhaust Fan is designed for energy-efficient ventilation, featuring a high-capacity DC motor and adjustable speed control. Ideal for both residential and commercial applications, it operates quietly at noise levels as low as 24dB(A), making it perfect for bathrooms, kitchens, and large rooms. With an IPX4 rating, it’s moisture-resistant and built for high humidity areas, ensuring improved indoor air quality and mould prevention.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Motor Power: 2.4W (24/7 mode), 2.4 - 40W (Standard mode)
- Air Delivery: 65m³/h (24/7 mode), 65 - 561m³/h (Standard mode)
- Noise Level: 24dB(A) (24/7 mode), 24-47dB(A) (Standard mode)
- Ball Bearing Motor: Yes
- IP Rating: IPX4
- Duct Outlet Size: 150mm
- Input Power: 220-240V ~50Hz
- Installation Depth: Minimum 265mm
- Motor Type: DC
- Dimensions (H x L x W): 150mm x 265mm x 150mm
- Weight: 1.5 kg
Key Features
- High-capacity DC motor for energy-efficient powerful extraction
- Adjustable speed dial for tailored airflow control
- Quiet operation with noise levels from 24dB(A) to 47dB(A)
- IPX4 rated for moisture resistance
- Suitable for high humidity and mould-prone areas
- Designed for longer ducts and larger rooms
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure safety and compliance with electrical standards.
Applications
- Residential: Bathrooms, ensuites, laundries
- Commercial: Kitchens, offices, high humidity areas
- General: Large rooms and extended duct systems requiring ventilation
Standards & Compliance
- Complies with AS/NZS 60335 for electrical safety of household and similar electrical appliances
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient DC motor reduces power consumption
- Supports continuous ventilation to prevent mould and improve indoor air quality
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Ventair TORPEDO DC 150 Mixflow Inline Exhaust Fan is available now for immediate purchase. Ideal for residential and commercial applications requiring efficient ventilation in large or high humidity spaces.
