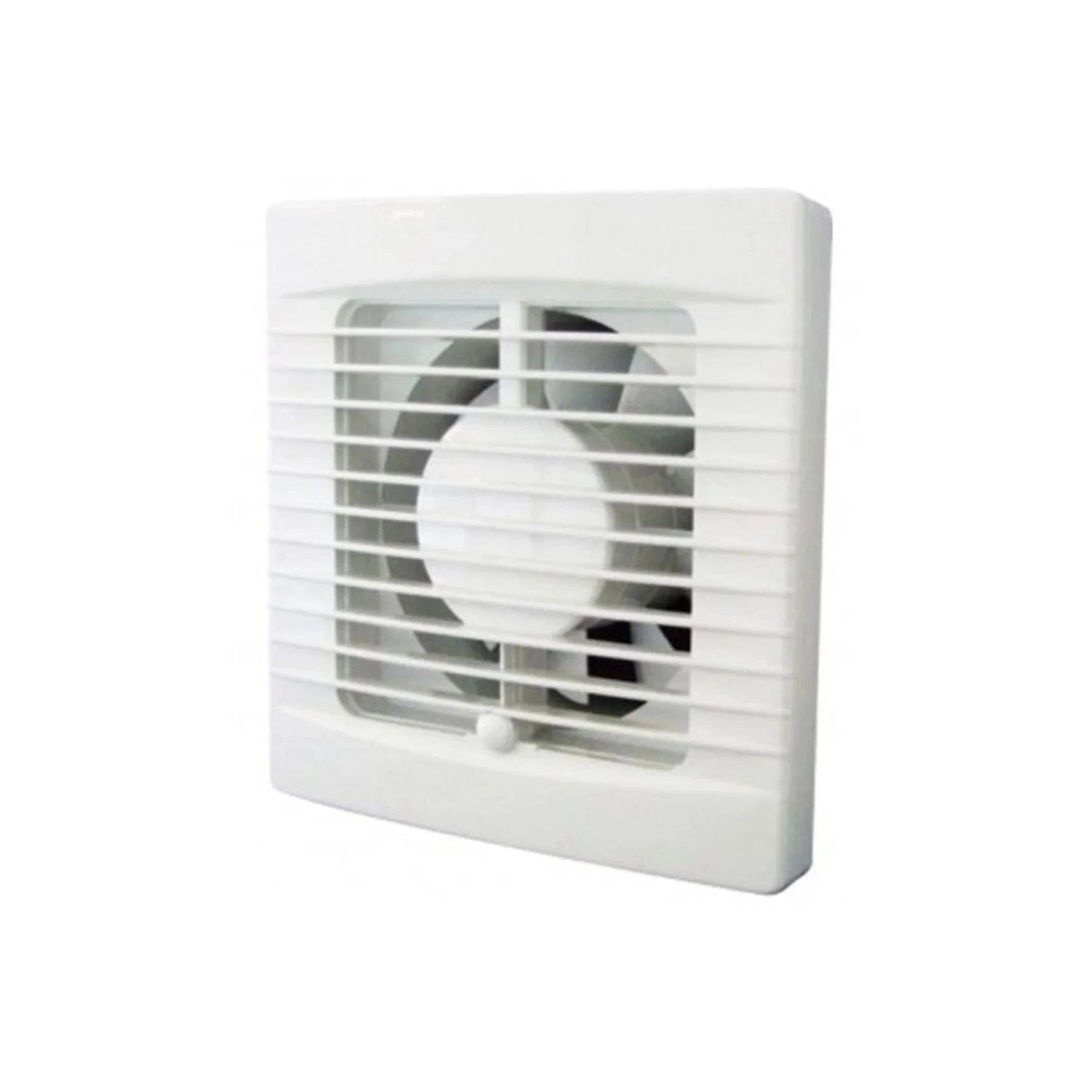

150mm Safety ELV Wall/Ceiling Exhaust Fan 364m³/h White Ventair
150mm Safety Extra Low Voltage Wall/Ceiling Fan Including Transformer 101l/s 364m³/hour by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair XF150LV, Manrose XF150LV, 150mm SELV Exhaust Fan, 12V Low Voltage Wall/Ceiling Fan
Technical Specifications
- Fan Type: Axial fan with ball-bearing motor
- Duct Size: 150mm
- Air Delivery: 364m³/h, equivalent to 101L/s, free-air rating
- Motor Power: 20W
- Maximum Fan Pressure: 60Pa
- Power Supply: 12V AC at 50Hz
- Transformer: 12VAC safety isolating transformer included
- Noise Level: 40dB(A)
- Ingress Protection: IPX4
- Fascia Size: 200mm x 200mm
- Cut-Out Size: Ø160mm
- Switching: Standard remote-switch operation; switch not included
- Maximum Operating Temperature: 50°C
- Dimensions (H x L x W): 200mm x 200mm x 74mm
- Weight: 1.725 kg
Key Features
- Safety Extra Low Voltage design for damp-area installations
- Suitable for wall or ceiling mounting
- 12VAC transformer included for connection to mains supply
- Long-life axial motor with ball bearings
- IPX4 moisture protection
- High airflow performance for a 150mm exhaust fan
- Square white fascia with a standard 160mm circular cut-out
Professional Installation Requirements
- Installation must be carried out by a licensed electrician. The supplied transformer must be used and installed beyond bathroom Zone 2, with all fixed wiring completed in accordance with AS/NZS 3000 and the manufacturer's instructions. Ensure the fan blades are installed more than 2.1m above the floor where required.
Applications
- Bathroom and shower-room ventilation
- Laundry and toilet ventilation
- Moisture and odour extraction in damp areas
- Residential wall or ceiling exhaust ventilation
- Commercial washroom and similar low-voltage ventilation applications
Standards & Compliance
- AS/NZS 60335.2.80:2025 – applicable safety requirements for electric fans
- AS/NZS 3000 – electrical installation and wiring requirements
Environmental Benefits
- Low 20W motor power supports reduced operating energy consumption
- Ball-bearing motor construction can extend service life and reduce replacement waste
- Efficient airflow performance of approximately 0.20W per L/s
- Suitable for targeted moisture extraction, helping reduce condensation-related building damage
Warranty Information
Five-year limited warranty against manufacturing defects, comprising two years of parts and labour followed by an additional three-year replacement warranty on the motor, subject to the manufacturer's terms and licensed installation requirements.
Available Now
Available through authorised Ventair distributors in Australia.
