150mm Standard Gravity Shutter Grille Black Ventair

BRAND: Ventair
SKU: V150GL-BL
$21.00 List price: $28.00
+ −
30 Days Return Electricians Unlock Trade Access

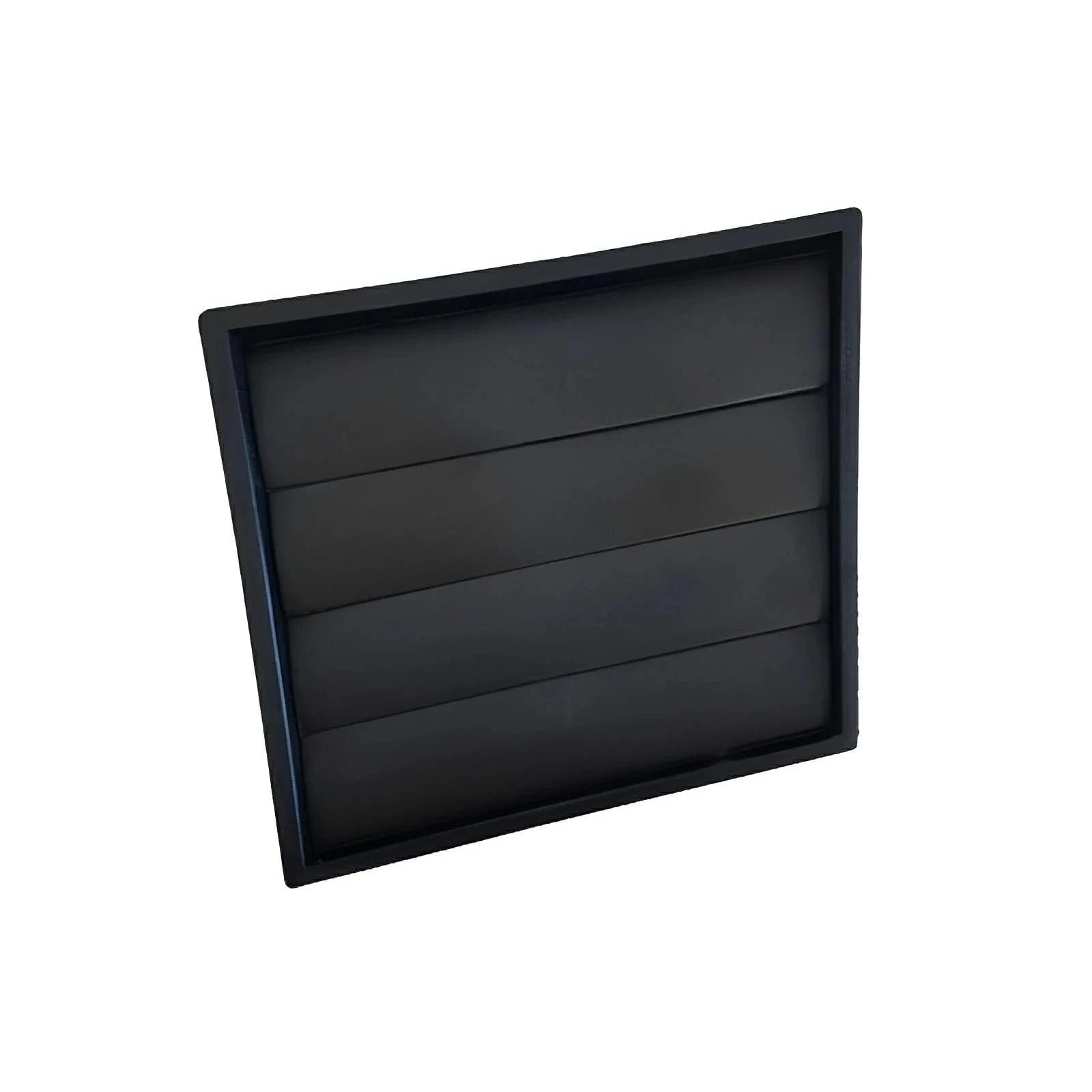

150mm Standard Gravity Shutter Grille Black by Ventair

Alternatively Known As: 150mm Black Gravity Shutter Grille, 150mm External Air Outlet Grille, Gravity Blade Louvre

Technical Specifications
  • Model: V150GL-BL
  • Colour: Black
  • Material: ABS plastic
  • Duct Size: 150mm diameter
  • Cut-Out Size: 157mm diameter
  • Fascia Size: 174mm x 174mm
  • Operation: Gravity-operated shutter louvres
  • Component Type: Passive external air outlet grille
  • Dimensions (H x L x W): 174mm x 45mm x 174mm
  • Weight: 0.1 kg
Key Features
  • Gravity-operated shutters help reduce unwanted backdrafts and air infiltration
  • Designed for use with 150mm diameter ducting
  • Black finish suitable for external wall or eave installations
  • Compact square grille design
  • Suitable for exhaust fan and ducted ventilation systems
  • Requires no electrical connection
Applications
  • External exhaust air outlets
  • Bathroom and laundry exhaust fan systems
  • Residential ducted ventilation
  • Commercial ventilation systems using 150mm ducting
  • Wall or eave-mounted ventilation outlets
Standards & Compliance
  • Relevant to natural-flow ventilation applications covered by AS/NZS 4740:2000; no product-specific certification claim identified.
Environmental Benefits
  • Passive operation requires no electricity during normal use
  • Gravity shutters can reduce unwanted air infiltration when the ventilation system is inactive
  • Durable ABS construction can help extend service life and reduce replacement waste
  • ABS plastic may be recyclable where suitable local recycling facilities accept it
Warranty Information

Ventair warranty terms apply from the original date of purchase. Commercial-use products are covered for one year under Ventair's general warranty policy; confirm the applicable period for this passive accessory against current Ventair terms.

Available Now

Available through authorised Ventair distributors in Australia.
