150mm Through-Roof Exhaust Fan Kit Axial Ventair

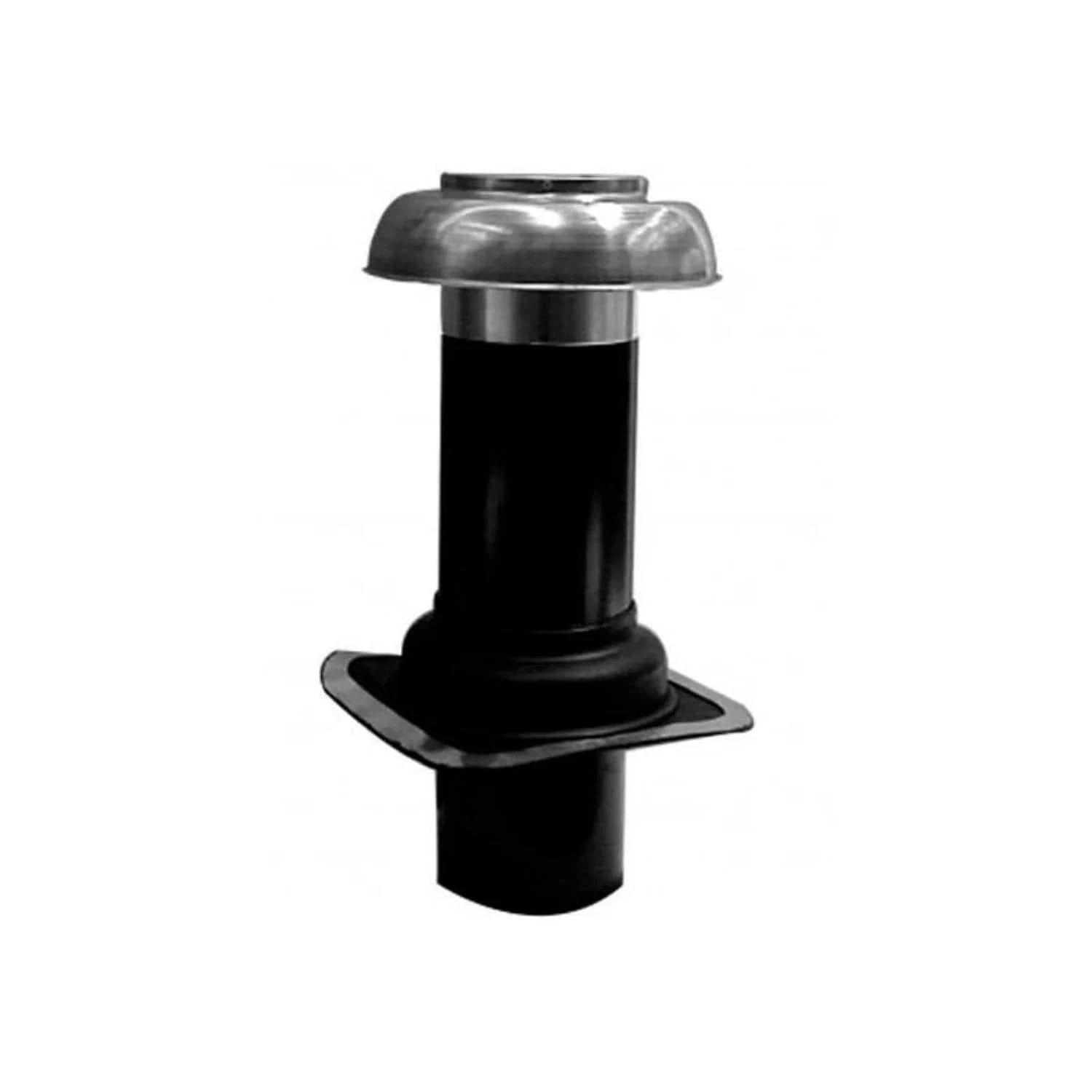

150mm Through Roof Exhaust Fan Kit Axial Includes Hdpe Tube and Flashing -105 l/s 380M³h by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair FAN0532, 150mm Axial Exhaust Cowl Kit, Roof-Mounted Exhaust Fan Kit
Technical Specifications
- Model: FAN0532
- Duct Size: 150 mm
- Fan Type: Axial extraction fan
- Air Delivery: 105 L/s; 380 m³/h free air
- Maximum Fan Pressure: 91 Pa
- Motor Power: 18 W
- Supply Voltage: 220–240 V AC
- Supply Frequency: 50 Hz
- Noise Level: 38 dB(A) at 1 m
- Specific Fan Power: 0.17 W/L/s
- Switching: Standard switching
- Included Components: Aluminium exhaust cowl, metal roof flashing and HDPE tube
- Construction: Aluminium cowl with HDPE duct tube
- Ingress Protection: IP44
- Dimensions (H x L x W): 670mm x 500mm x 275mm
- Weight: 2.5 kg
Key Features
- Through-roof exhaust design for direct discharge outdoors
- 150 mm axial fan for residential ventilation
- Includes roof flashing and HDPE tube
- Low 18 W power consumption
- Free-air performance of 105 L/s or 380 m³/h
- Quiet operation at 38 dB(A)
- Suitable for bathrooms, ensuites, toilets and laundries
- Standard switching configuration
Professional Installation Requirements
- Installation should be performed by a licensed electrical contractor in accordance with AS/NZS 3000 and the manufacturer's instructions. Roof penetration, flashing and weather sealing should be completed by a suitably qualified roofing or building professional. The fan must discharge directly to outdoor air rather than into the roof cavity.
Applications
- Bathroom and ensuite ventilation
- Toilet ventilation
- Laundry ventilation
- Residential roof-mounted exhaust systems
- General moisture and odour extraction
Standards & Compliance
- AS/NZS 60335.2.80 for safety requirements applicable to electric fans
- AS/NZS 3000 for mains electrical installation requirements
Environmental Benefits
- Low 18 W motor power can reduce operating energy consumption
- Aluminium cowl and metal flashing are recyclable at end of service life
- Effective moisture extraction can help reduce condensation, mould and building-material deterioration
- Durable components may extend service life and reduce replacement waste
Warranty Information
Three-year manufacturer warranty for domestic use, subject to Ventair warranty terms, correct installation and proof of purchase. Commercial warranty conditions may differ.
Available Now
Available through authorised Ventair distributors in Australia.
