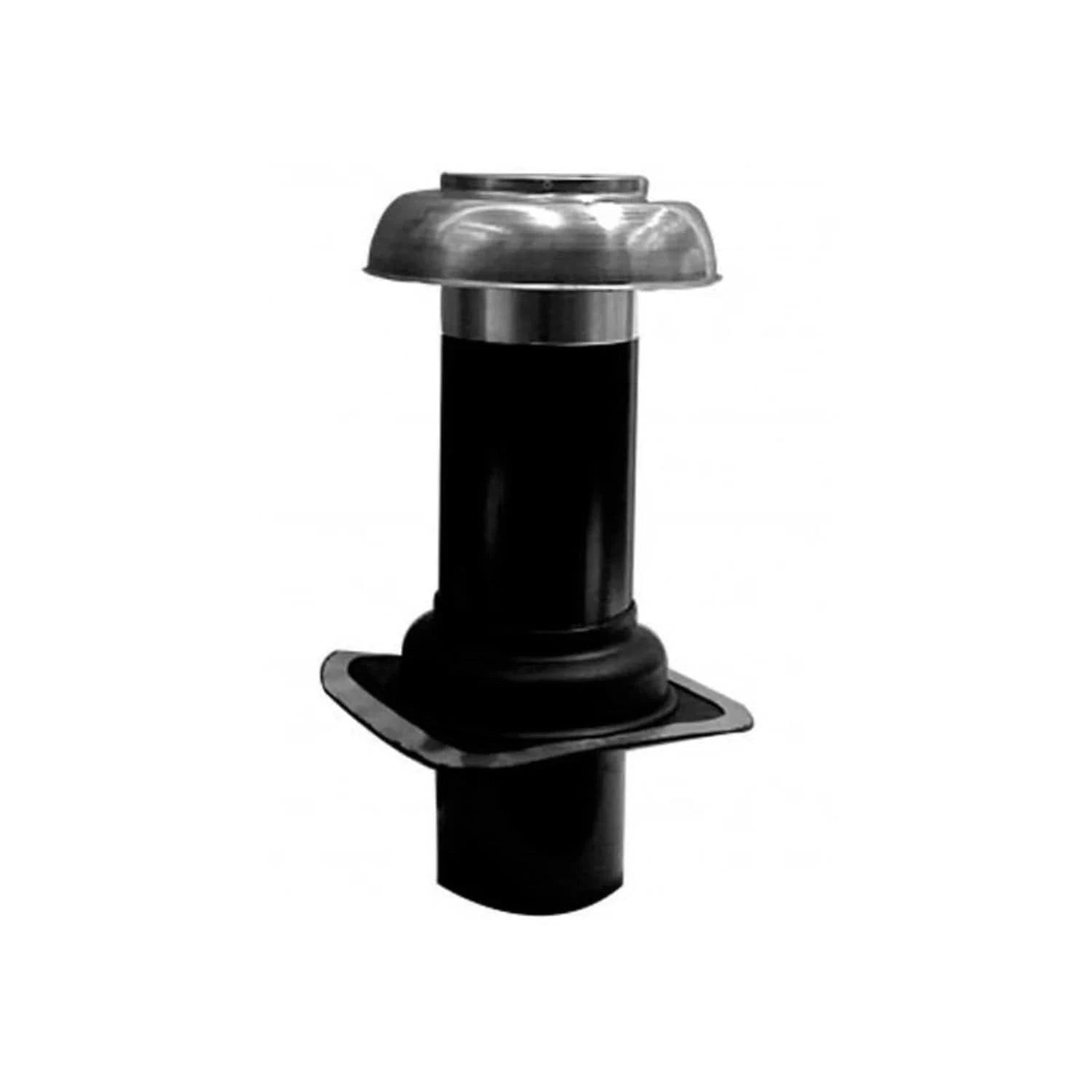

150mm Through-Roof Exhaust Fan Kit Centrifugal 550m³/h Ventair

BRAND: Ventair
SKU: FAN0530
$740.40 List price: $987.20
+ −
30 Days Return Electricians Unlock Trade Access
150mm Through Roof Exhaust Fan Kit Centrifugal Includes Hdpe Tube and Flashing 153 l/s 550m³h by Ventair

Alternatively Known As: 150mm Roof Exhaust Fan Kit, Through-Roof Ventilation Fan, Centrifugal Roof Cowl Fan, FAN0530

Technical Specifications
  • Duct Size: 150mm diameter
  • Fan Type: Centrifugal
  • Air Delivery: 153 l/s, 550m³/h free-air performance
  • Maximum Fan Pressure: 320Pa
  • Motor Power: 70W maximum
  • Specific Fan Power: 0.46W/l/s
  • Sound Level: 62dB(A) at 1m
  • Supply: 220–240V AC, 50Hz
  • Switching: Standard switching
  • Included Components: Roof flashing and HDPE tube
  • Cowl Material: Aluminium
  • Operating Temperature: -25°C to +50°C
  • Dimensions (H x L x W): 500mm x 275mm x 170mm
  • Weight: 2 kg
Key Features
  • High-airflow centrifugal exhaust fan for through-roof installation
  • 150mm duct connection for residential and light commercial ventilation
  • Includes roof flashing and HDPE tube
  • Aluminium roof cowl designed for outdoor exposure and long service life
  • Provides up to 550m³/h free-air extraction performance
  • Standard single-speed operation
  • Suitable for bathrooms, laundries, kitchens and general moisture extraction
Professional Installation Requirements
  • Installation must be performed by a licensed electrician for the electrical connection and by a suitably qualified roofing or ventilation installer for the roof penetration. Mount the cowl vertically, seal the flashing correctly and complete fixed-wiring work in accordance with AS/NZS 3000 and the installation instructions.
Applications
  • Bathroom and ensuite ventilation
  • Laundry moisture extraction
  • Kitchen and general household exhaust ventilation
  • Residential roof-space ventilation
  • Light commercial exhaust-air applications
Standards & Compliance
  • AS/NZS 60335.2.80 for safety requirements applying to household and similar electric fans
  • AS/NZS 3000 for electrical installation and fixed-wiring requirements
Environmental Benefits
  • Specific fan power of 0.46W/l/s supports comparatively efficient air extraction
  • Aluminium roof cowl components are durable and recyclable
  • Effective moisture removal can help reduce mould growth and premature building-material deterioration
  • Long-service ventilation components can reduce replacement waste
Warranty Information

Supported by a 2-year manufacturer warranty against manufacturing defects, subject to Ventair warranty terms and correct installation. Commercial applications may have different warranty conditions.

Available Now

Available through authorised Ventair distributors in Australia.

Exhaust Fan Airflow Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
