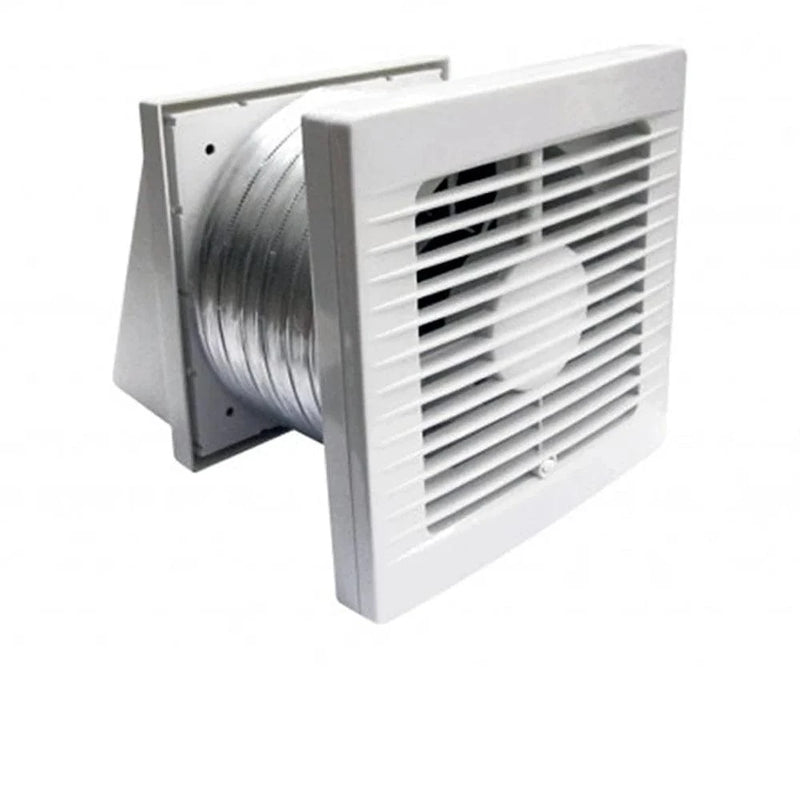

150mm Through-Wall Exhaust Fan Kit 313m³/h White Ventair
150mm Through Wall Fan Kit Standard Model 87l/s 313m³/hour by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair FAN0135, Manrose XP150S, 150mm Standard Through-Wall Fan Kit, Axial Wall Exhaust Fan Kit
Technical Specifications
- Model: FAN0135
- Fan Type: Axial
- Colour: White
- Motor Power: 25W
- Air Delivery: 313m³/h (87L/s)
- Noise Level: 40dB(A)
- Duct Outlet Size: 150mm diameter
- Cut-Out Size: 160mm diameter
- Fascia Size: 200mm x 200mm
- Ducting Length: 375mm
- Motor: Ball-bearing
- Power Input: 220–240V AC, 50Hz
- Ingress Protection: IPX4
- Switching: Standard remote switch, not included
- Minimum Wall Cavity: 110mm
- Kit Contents: Fan, expandable semi-rigid ducting, weatherproof external cowl and fixtures
- Dimensions (H x L x W): 200mm x 110mm x 200mm
- Weight: 1.8 kg
Key Features
- Designed for direct extraction through an exterior wall
- Suitable for wall or ceiling mounting
- Includes expandable semi-rigid ducting and weatherproof external cowl
- Ball-bearing motor supports reliable long-term operation
- Standard switching configuration for connection to a remote switch
- IPX4-rated construction for suitable damp-area applications
- Suitable for bathrooms, ensuites, laundries and utility areas
Professional Installation Requirements
- Installation and fixed electrical connection must be performed by a licensed electrician in accordance with the installation instructions and applicable Australian electrical requirements. The fan should be ducted directly to outdoor air through the wall.
Applications
- Bathroom and ensuite ventilation
- Laundry and utility-room air extraction
- Residential wall-mounted exhaust ventilation
- Small commercial and light-duty ventilation installations
Standards & Compliance
- AS/NZS 60335.2.80:2025 safety requirements for household and similar electric fans
- AS/NZS 3000 electrical installation requirements applicable to fixed-wired fan installations
Environmental Benefits
- 25W motor helps limit operating energy consumption compared with higher-powered extraction equipment
- Ventilation helps reduce moisture accumulation and associated mould growth in damp areas
- Ball-bearing motor construction can extend service life and reduce replacement waste
- Plastic, aluminium and steel kit components may be recyclable subject to local recycling facilities
Warranty Information
Five-year warranty against manufacturing defects for residential use, subject to Ventair warranty terms. Installation faults, misuse and unauthorised modifications are excluded; commercial use may have a one-year warranty period.
Available Now
Available through authorised Ventair distributors in Australia.
Exhaust Fan Airflow Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
