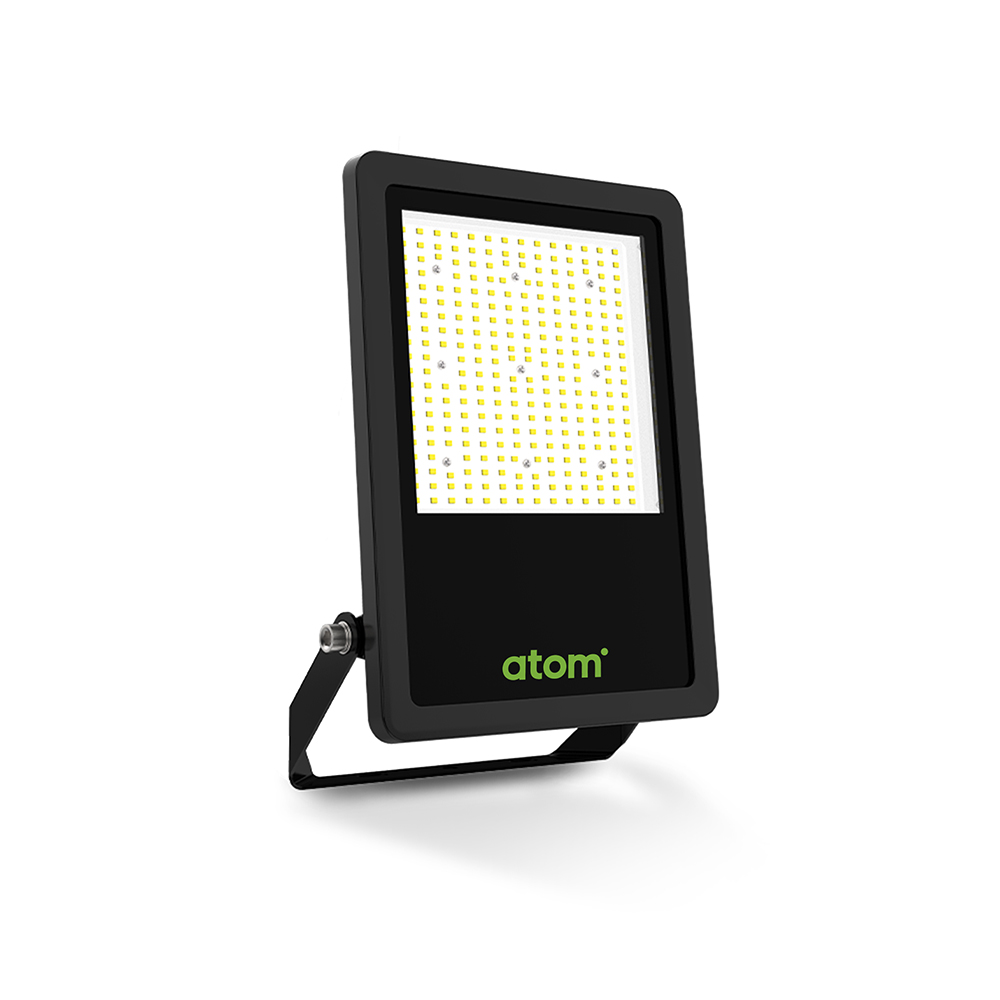

150W LED Floodlight | 5000K Daylight | IP66 Rated | Adjustable Fitting | by atom
The 150W LED Floodlight delivers a powerful 23850 lumens output with a daylight 5000K color temperature, making it perfect for outdoor commercial and security lighting. With an IP66 rating for dust and water resistance and an adjustable fitting for directional lighting, this floodlight is designed for durability and efficiency, ensuring optimal performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 150W LED Floodlight, Outdoor LED Floodlight, High Power LED Floodlight, Daylight LED Floodlight 5000K
Technical Specifications
- Power: 150 W
- Lumens Output: 23850 lm
- Colour Temperature: 5000 K (Daylight)
- LED Type: Diffused
- Beam Angle: 110°
- CRI: >80
- Input Voltage: 230 Vac (216-253 Vac range)
- Power Factor: 0.95
- Inrush Current: 80 A
- Inrush Duration: 250 µS (50%)
- IP Rating: IP66
- IK Rating: IK08
- Operating Temperature: 0 to 45 °C
- Driver Type: Fixed output, constant current
- Driver Current: 750 mA
- Dimmable: No
- Wiring: Flying leads (3 wire), 1500 mm flex and plug
- Surge Protection: 6 kV L-N and L/N-PE
- LED Lifetime: 60000 hours (L70 B10)
- Macadam Steps: 5-step SDCM
- Dimensions (H x L x W): 250mm x 350mm x 300mm
- Weight: 5 kg
Key Features
- High total system efficiency of 160 lm/W
- IP66 rated for dust and water resistance
- IK08 impact resistance rating
- Adjustable fitting for directional lighting
- Powdercoated black aluminium body with glass diffuser
- Surface mount installation
- High power factor of 0.95
- Surge protection of 6kV for L-N and L/N-PE
- Colour Rendering Index (CRI) greater than 80
- 110° beam angle with diffused LED type
- LED lifetime of 60,000 hours (L70 B10 rating)
- Non-dimmable fixed output driver included
- Operating temperature range 0 to 45 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Outdoor lighting for commercial and industrial areas
- Security lighting
- Architectural and landscape lighting
- Sports and recreational facilities
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.5 – Floodlights
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- IEC 62031 – LED Modules for General Lighting
- IEC/TR 62778 – Photobiological Safety of Lamps and Lamp Systems
- IEC 62471 – Photobiological Safety of Lamps and Lamp Systems
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Surge protection enhances product longevity and reliability
Warranty Information
Standard warranty is 3 years return-to-base. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Zenix 150W LED Floodlight by atom is available for immediate purchase, ideal for outdoor commercial, industrial, and security lighting applications.
