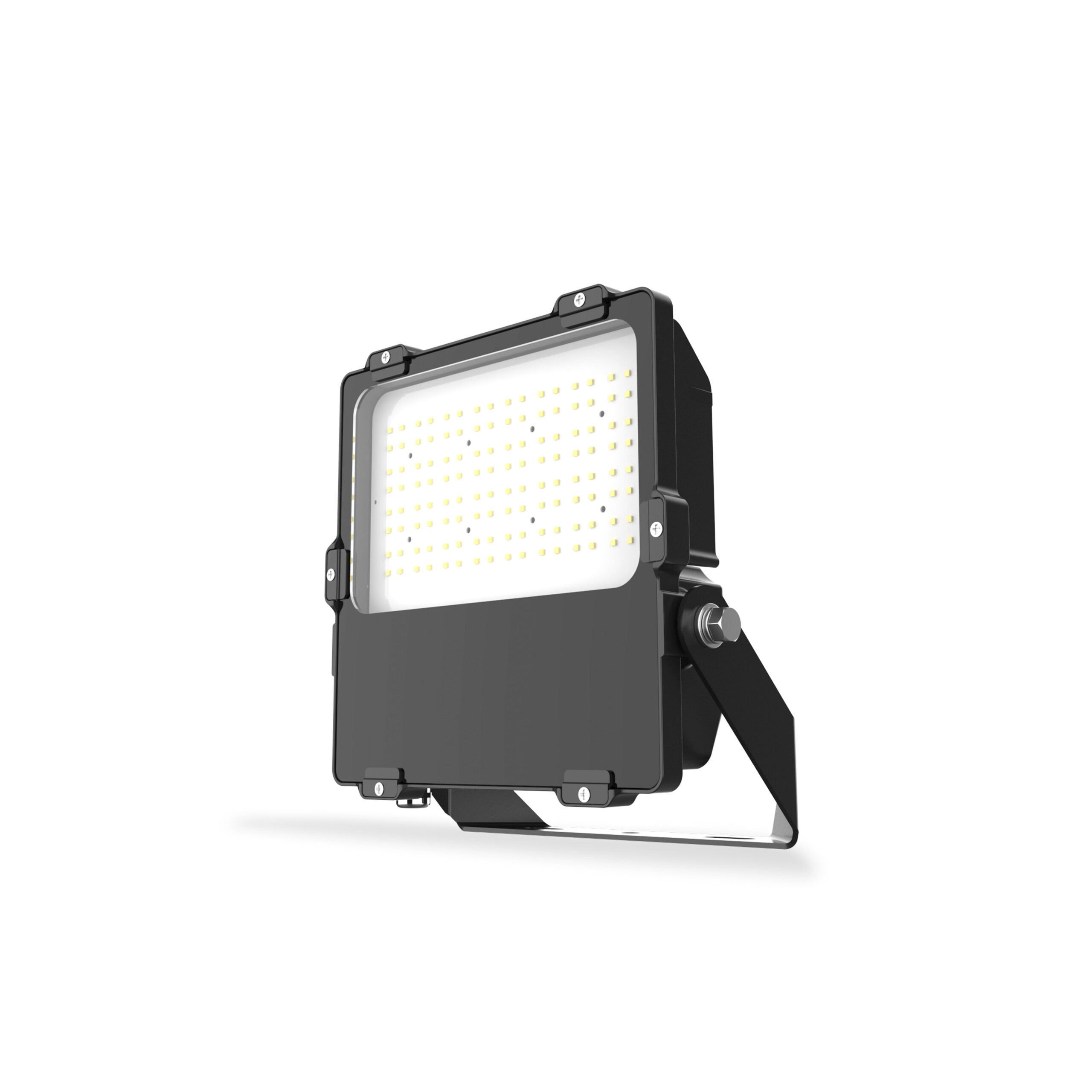

150W LED IP66 Floodlight Ser III | 5000K Daylight | 148 lm/W Efficiency | Adjustable Fitting | by atom
The 150W LED IP66 Floodlight Ser III is designed for outdoor lighting, providing a powerful 5000K daylight output with an impressive efficiency of 148 lm/W. Ideal for commercial, industrial, and security applications, this floodlight features an adjustable fitting and a durable powdercoated black aluminium body, ensuring long-lasting performance even in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 150 Watt LED Floodlight, IP66 Outdoor LED Floodlight, Daylight LED Floodlight 5000K, Atom LED Floodlight 150W
Technical Specifications
- Total System Efficiency: 148 lm/W
- IP Rating: IP66
- IK Rating: IK08
- Adjustability: Adjustable fitting
- Body Material: Aluminium with powdercoated finish
- Diffuser Material: Glass
- Installation Type: Surface mount
- Working Temperature Range: -30 to 45 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Power Factor: 0.94
- Inrush Current: 100 A
- Maximum Wattage: 150 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Surge Protection L-N and L/N-PE: 4kV
- Earth Leakage: 0.75 mA
- Colour Rendering Index (CRI): >70
- LED Type: Diffused
- CCT Configuration: Single, 5000 K daylight
- Macadam Steps: 5-step MacAdam Ellipse
- Beam Angle: 120°
- LED Lifetime: 54,000 hours (L70 B10 rating)
- Driver Type: Fixed output, constant current
- Driver Included: Yes
- Dimmable: No
- Flex & Plug or Lead Length: 1500 mm flying leads (3 wire)
- Driver Current: 660 mA
- Dimensions (H x L x W): 250mm x 350mm x 300mm
- Weight: 6 kg
Key Features
- High total system efficiency of 148 lm/W
- IP66 rated for dust and water ingress protection
- IK08 rated for impact resistance
- Adjustable fitting for directional lighting
- Powdercoated black aluminium body with glass diffuser
- Operating temperature range from -30 to 45 °C
- High power factor of 0.94
- Surge protection of 4kV for L-N and L/N-PE
- Long LED lifetime of 54,000 hours (L70 B10 rating)
- Non-dimmable fixed output driver included
- 1500 mm flying leads for easy wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety regulations.
Applications
- Outdoor lighting for commercial and industrial areas
- Security lighting
- Sports grounds and recreational areas
- Architectural and landscape lighting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598 – Luminaires Safety Standards
Environmental Benefits
- High energy efficiency reduces electricity consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- Surge protection enhances product longevity, reducing electronic waste
Warranty Information
Standard warranty is 3 years return-to-base. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Atom 150W LED IP66 Floodlight Ser III - 5000K is available for immediate purchase, ideal for outdoor commercial, industrial, and security lighting applications.
