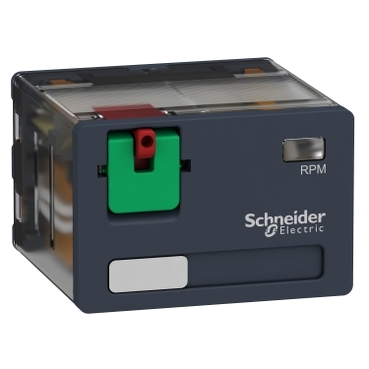

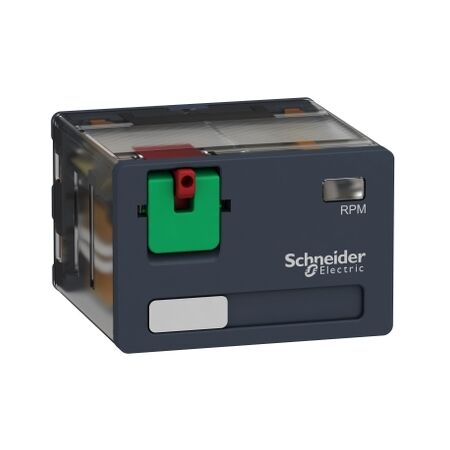

15A Power Relay 4C/O 120VAC | 4 Changeover Contacts | Plug-in Design | by Clipsal
The 15A Power Relay 4C/O 120VAC is designed for versatile control in industrial automation and building management systems. With a robust 15A switching capacity and 4 changeover contacts, this plug-in relay ensures easy installation and reliable performance. Ideal for HVAC systems and lighting control, it meets Australian safety standards and offers a long operational life, reducing energy consumption and electronic waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 15A Power Relay 4C/O 120VAC | 4 Changeover Contacts | Plug-in Design | by Clipsal
Brand: Clipsal
SKU: SCHRPM41F7
Alternatively Known As: 120V AC Power Relay, Harmony RPM Relay, 4C/O Plug-in Relay, Industrial Control Relay, SCHRPM41F7
Technical Specifications
- Contact configuration: 4 changeover (4C/O)
- Rated current: 15A
- Coil voltage: 120VAC
- Contact material: Silver alloy
- Dielectric strength: 2000V AC between coil and contacts
- Mechanical durability: 10,000,000 operations
- Electrical durability: 100,000 operations at rated load
- Operating temperature: -40°C to +55°C
- Mounting: Plug-in socket
- Dimensions (H x L x W): 35mm x 28mm x 21mm
- Weight: 0.1 kg
Key Features
- 15A switching capacity for high power loads
- 4 changeover (4C/O) contacts for versatile control
- Plug-in relay design for easy installation and replacement
- 120VAC coil voltage for compatibility with standard control circuits
- Reliable Harmony RPM series construction
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical safety standards.
Applications
- Industrial automation control panels
- Building management systems
- HVAC systems
- Lighting control
- General electrical switching applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control of electrical loads, reducing unnecessary energy consumption.
- Long operational life reduces electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 15A Power Relay 4C/O 120VAC (SCHRPM41F7) is available for immediate purchase. Ideal for industrial automation, building management, and electrical control applications.
