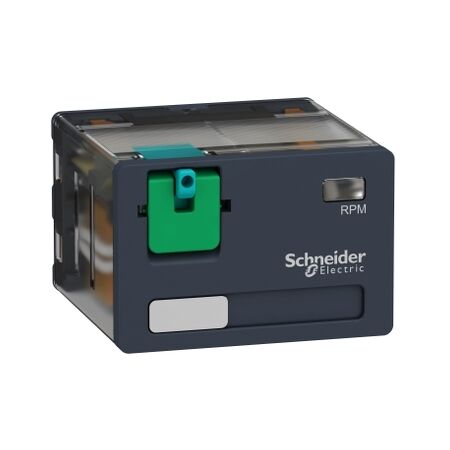

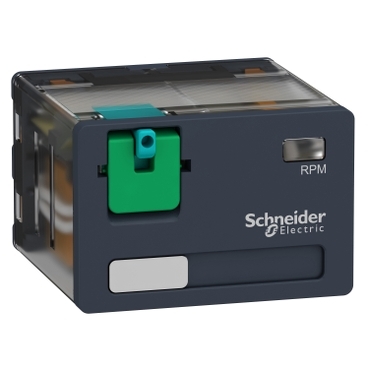

15A Power Relay 4C/O 12VDC | 4 Changeover Contacts | Plug-in Design | Lockable Test Button | @1 | by Clipsal
The 15A Power Relay 4C/O 12VDC is designed for high power loads, featuring 4 changeover contacts for versatile control. Ideal for industrial automation and HVAC systems, this plug-in relay ensures easy installation and includes a lockable test button for manual operation. With a robust mechanical life of 10 million operations, it’s perfect for reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 15A Power Relay 4C/O 12VDC | 4 Changeover Contacts | Plug-in Design | Lockable Test Button | @1 | by Clipsal
Brand: Clipsal
SKU: SCHRPM41JD
Alternatively Known As: Clipsal 12VDC 15A Relay, Harmony 4C/O Power Relay, SCHRPM41JD, Industrial Plug-in Relay, 4 Pole Changeover Relay
Technical Specifications
- Contact configuration: 4C/O (4 changeover contacts)
- Rated current: 15A
- Coil voltage: 12V DC
- Plug-in relay type
- Lockable test button for manual operation
- Mechanical life: 10,000,000 operations
- Electrical life: 100,000 operations at rated load
- Dielectric strength: 2,000V AC (between coil and contacts)
- Operating temperature: -40°C to +55°C
- Dimensions (H x L x W): 35mm x 28mm x 21mm
- Weight: 0.1 kg
Key Features
- 15A switching capacity for high power loads
- 4 changeover (4C/O) contacts for versatile control
- 12V DC coil voltage for low voltage control circuits
- Plug-in relay design for easy installation and replacement
- Lockable test button for manual operation and testing
- Part of the Harmony Electromechanical Relays range
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and optimal performance.
Applications
- Industrial automation control panels
- Building management systems
- HVAC systems
- Lighting control
- General switching applications requiring high current switching
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control of high power loads, reducing unnecessary energy consumption
- Long operational life reduces replacement frequency and electronic waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal 15A Power Relay 4C/O 12VDC (SCHRPM41JD) is available for immediate purchase. Ideal for industrial automation, building management, and high current switching applications.
