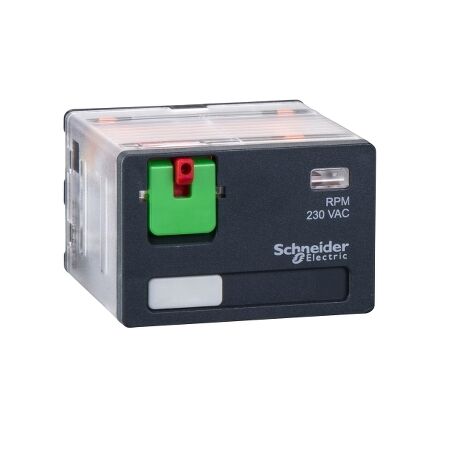

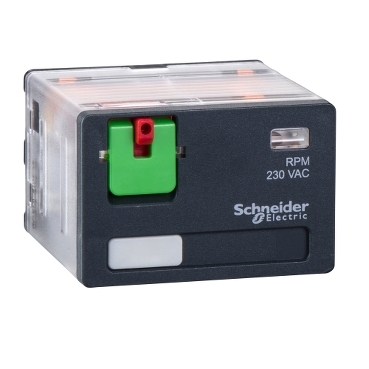

15A Power Relay 4C/O 230VAC | 4 Changeover Contacts | Plug-in Design | by Clipsal
The 15A Power Relay 4C/O 230VAC is designed for high power loads, featuring 4 changeover contacts for versatile control. Ideal for industrial automation and HVAC systems, this relay ensures reliable performance with a 230VAC coil voltage and a robust plug-in design for easy installation and replacement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 15A Power Relay 4C/O 230VAC | 4 Changeover Contacts | Plug-in Design | by Clipsal
Brand: Clipsal
SKU: SCHRPM41P7
Alternatively Known As: Clipsal Harmony RPM relay, 15A plug-in relay, 4C/O relay 230VAC, industrial power relay, SCHRPM41P7
Technical Specifications
- Contact configuration: 4 C/O (4PDT)
- Rated current: 15A
- Coil voltage: 230VAC
- Contact material: Silver alloy
- Dielectric strength: 2000V AC (between coil and contacts)
- Mechanical life: 10,000,000 operations
- Electrical life: 100,000 operations at rated load
- Operating temperature: -40°C to +55°C
- Mounting: Plug-in socket
- Dimensions (H x L x W): 35mm x 28mm x 21mm
- Weight: 0.12 kg
Key Features
- 15A switching capacity for high power loads
- 4 changeover (C/O) contacts for versatile control
- 230VAC coil voltage for direct mains operation
- Plug-in design for easy installation and replacement
- Reliable Harmony RPM series construction
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical safety standards.
Applications
- Industrial automation panels
- Building management systems
- HVAC control
- Lighting control circuits
- General electrical switching applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control of electrical loads, reducing unnecessary energy consumption.
- Long operational life reduces electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 15A Power Relay 4C/O 230VAC (SCHRPM41P7) is available for immediate purchase. Ideal for industrial automation, building management, and high-power switching applications.
