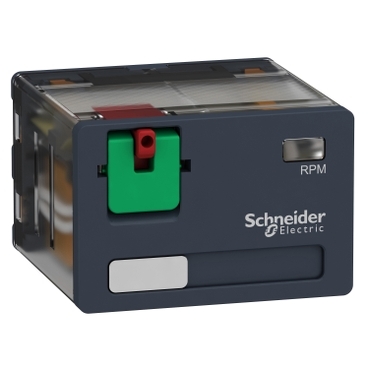

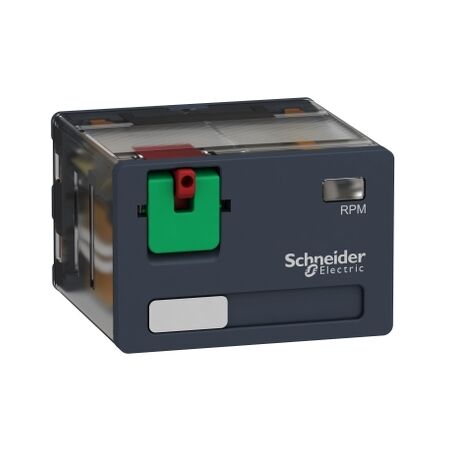

15A Power Relay 4C/O 48VAC | 4 Changeover Contacts | Plug-in Design | Lockable Test Button | by Clipsal
The 15A Power Relay 4C/O 48VAC is designed for efficient control in industrial automation and building management systems. With a robust 15A switching capacity and versatile 4 changeover contacts, this plug-in relay ensures easy installation and reliable performance. Ideal for HVAC systems and general switching applications, it features a lockable test button for manual operation, making it a perfect choice for commercial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 15A Power Relay 4C/O 48VAC | 4 Changeover Contacts | Plug-in Design | Lockable Test Button | by Clipsal
Brand: Clipsal
SKU: SCHRPM41E7
Alternatively Known As: Clipsal Harmony Power Relay, 4CO 15A Relay, 48VAC Plug-in Relay, SCHRPM41E7, Industrial Control Relay
Technical Specifications
- Contact configuration: 4C/O (4 changeover)
- Rated current: 15A
- Coil voltage: 48VAC
- Plug-in mounting
- Lockable test button
- Mechanical durability: 30,000,000 cycles
- Electrical durability: 100,000 cycles at rated load
- Operating temperature: -40°C to +55°C
- Dimensions (H x L x W): 35mm x 28mm x 21mm
- Weight: 0.1 kg
Key Features
- 15A switching capacity for high power loads
- 4 changeover (4C/O) contacts for versatile control
- Plug-in relay design for easy installation and replacement
- Lockable test button for manual operation and testing
- 48V AC coil voltage
- Part of the Harmony Electromechanical Relays range
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Industrial automation control panels
- Building management systems
- HVAC systems
- Lighting control
- General switching applications in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control of electrical loads, reducing unnecessary energy consumption
- Long operational life reduces electronic waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 15A Power Relay 4C/O 48VAC (SCHRPM41E7) is available for immediate purchase. Ideal for industrial automation, building management, and commercial switching applications.
