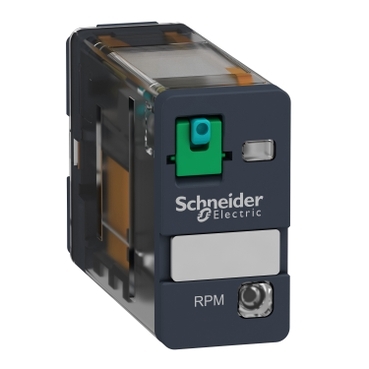

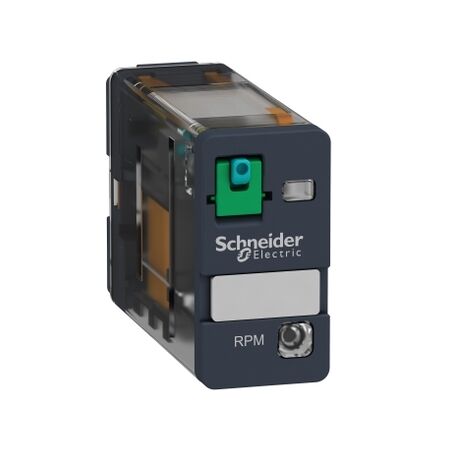

15A Power Relay LED 1 C/O 24VDC | 15A Switching Capacity | Integrated LED Indicator | Plug-in Design | @Each of 1 | by Clipsal
The 15A Power Relay LED 1 C/O 24VDC is designed for reliable control in industrial automation and HVAC systems. With a robust 15A switching capacity and an integrated LED indicator for coil status, this plug-in relay ensures easy installation and maintenance. Ideal for building management systems and lighting control circuits, it offers a long operational life and compliance with Australian safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 15A Power Relay LED 1 C/O 24VDC | 15A Switching Capacity | Integrated LED Indicator | Plug-in Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRPM12BD
Alternatively Known As: 24VDC Power Relay, Harmony RPM Relay, SCHRPM12BD, 15A Plug-in Relay, Clipsal Industrial Relay
Technical Specifications
- Contact configuration: 1 C/O (SPDT)
- Coil voltage: 24V DC
- Contact current rating: 15A
- Contact voltage rating: 250V AC / 30V DC
- LED indicator for coil status
- Plug-in mounting
- Mechanical life: 10,000,000 operations
- Electrical life: 100,000 operations at rated load
- Operating temperature: -40°C to +70°C
- Dimensions (H x L x W): 35mm x 28mm x 21mm
- Weight: 0.1 kg
Key Features
- 15A switching capacity for high power loads
- Single changeover (1 C/O) contact configuration
- 24V DC coil voltage
- Integrated LED indicator for coil status
- Plug-in relay design for easy installation and replacement
- Reliable Harmony RPM series construction
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical safety standards.
Applications
- Industrial automation control panels
- Building management systems
- Lighting control circuits
- HVAC systems
- General electrical switching applications
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control of high-power circuits, reducing energy waste.
- Long operational life reduces replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 15A Power Relay LED 1 C/O 24VDC (SCHRPM12BD) is available for immediate purchase. Ideal for industrial automation, lighting, and HVAC control applications.
