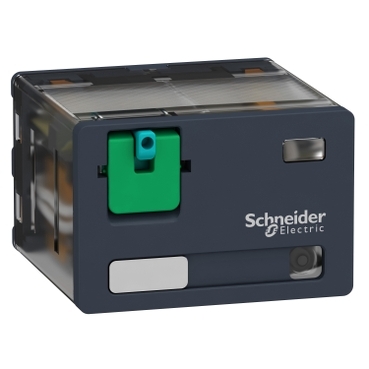

15A Power Relay LED 4C/O 12VDC | 15A Switching Capacity | DIN Rail Mountable | LED Indicator | @Pack of 1 | by Clipsal
The 15A Power Relay LED 4C/O 12VDC is designed for efficient control in industrial automation and building management systems. With a robust 15A switching capacity and versatile 4 changeover contacts, it ensures reliable operation in various electrical applications. The LED indicator allows for easy status monitoring, making it ideal for HVAC and lighting control circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 15A Power Relay LED 4C/O 12VDC | 15A Switching Capacity | DIN Rail Mountable | LED Indicator | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRPM42JD
Alternatively Known As: Clipsal 12VDC Power Relay, 4C/O DIN Rail Relay, 15A Industrial Relay, SCHRPM42JD Relay, Clipsal Automation Relay
Technical Specifications
- Contact Configuration: 4 Changeover (4C/O)
- Contact Rating: 15A at 250VAC/30VDC
- Coil Voltage: 12VDC
- LED Indicator: Yes
- Mounting: DIN rail
- Insulation Resistance: 1000 MΩ min (at 500VDC)
- Dielectric Strength: 4000VAC between coil and contacts
- Operating Temperature: -40°C to +70°C
- Mechanical Life: 10,000,000 operations
- Electrical Life: 100,000 operations at rated load
- Dimensions (H x L x W): 78mm x 85mm x 21mm
- Weight: 0.1 kg
Key Features
- 15A switching capacity for high power loads
- 4 changeover (4C/O) contacts for versatile control
- 12VDC coil voltage for low voltage control circuits
- LED indicator for easy status monitoring
- Compact DIN rail mountable design
- Reliable electromechanical operation
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical safety standards.
Applications
- Industrial automation panels
- Building management systems
- HVAC control
- Lighting control circuits
- General electrical switching applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control of electrical loads, reducing unnecessary energy consumption.
- Long operational life reduces replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 15A Power Relay LED 4C/O 12VDC (SCHRPM42JD) is available for immediate purchase. Ideal for industrial automation, building management, and electrical control applications.
