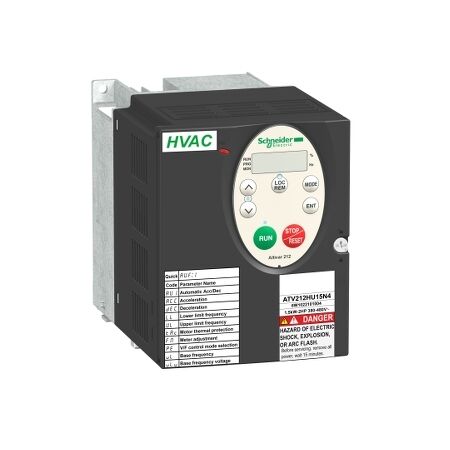

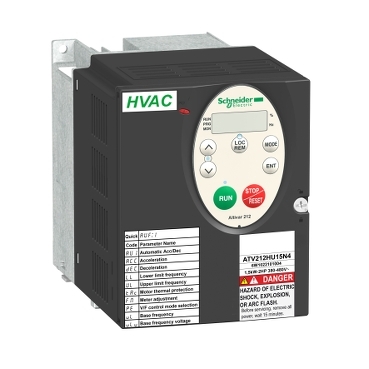

15kW Variable Speed Drive 20HP Power Rating Integrated EMC Filter IP54 Enclosed Clipsal

BRAND: Clipsal
SKU: SCHATV212HU15N4
$1,143.70 List price: $1,425.20
+ −
30 Days Return Electricians Unlock Trade Access
The 15kW Variable Speed Drive is designed for robust motor control in HVAC and industrial applications.

Product Name/Title: 15kW Variable Speed Drive | 20HP Power Rating | Integrated EMC Filter | Optimized for HVAC | @Each of 1 | by Clipsal

Brand: Clipsal

SKU: SCHATV212HU15N4

Alternatively Known As: ATV212HU15N4, Schneider ATV212, Variable Speed Drive 15kW, 20HP VSD, HVAC Drive, Clipsal VSD, Schneider Electric ATV212

Technical Specifications
  • Power Rating: 15kW (20HP)
  • Input Voltage: 380-480V AC, 3-phase
  • Output Voltage: 0-480V AC, 3-phase
  • Input Frequency: 50/60Hz
  • Output Frequency: 0.5-200Hz
  • Integrated EMC filter (CEM I)
  • Control Type: V/F, Sensorless Vector Control
  • Communication: Modbus, BACnet, Metasys N2, APOGEE FLN
  • Protection: IP21 (standard), Overload, Overvoltage, Undervoltage, Short Circuit
  • Operating Temperature: -10°C to +50°C (derating above 40°C)
  • Display: Built-in keypad and LCD
  • Dimensions (H x L x W): 350mm x 232mm x 180mm
  • Weight: 11 kg
Key Features
  • 15kW (20HP) power rating for robust motor control
  • Three-phase 380-480V input for industrial applications
  • Optimized for HVAC applications with energy-saving features
  • Integrated EMC filter for reduced electrical noise
  • Compact design for easy panel integration
  • Built-in display and keypad for easy configuration
  • Multiple communication options including Modbus and BACnet
Professional Installation Requirements
  • Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations.
Applications
  • HVAC systems in commercial buildings
  • Pumps and fans in industrial environments
  • Water treatment plants
  • General motor control for energy efficiency
Standards & Compliance
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Reduces energy consumption by optimizing motor speed
  • Minimizes CO2 emissions through efficient operation
  • Supports sustainable building management
Warranty Information

Standard 18-month warranty from date of invoice or 12 months from commissioning, whichever comes first.

Available Now

The Clipsal ATV212 15kW 20HP 480V 3-Phase Variable Speed Drive (SCHATV212HU15N4) is available for immediate purchase. Ideal for HVAC, industrial, and commercial motor control applications.
