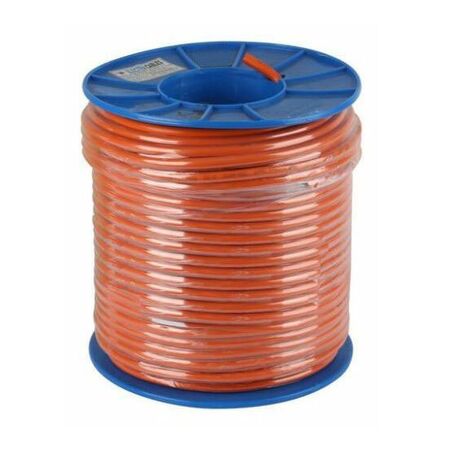

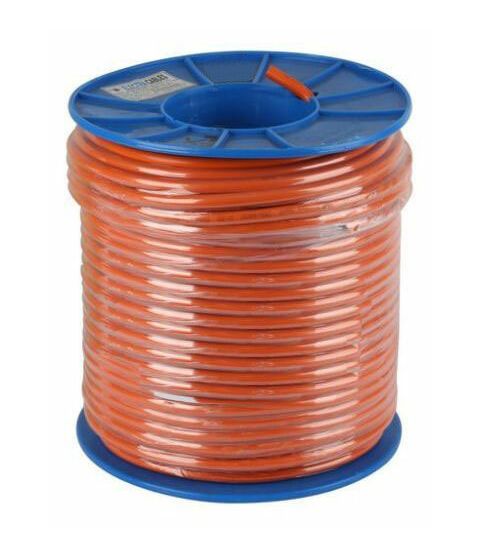

1.5mm² 3 Core + Earth Power Cable | Orange Circular | 450/750V Rated | by Electra Cables
The 1.5mm² 3 Core + Earth Power Cable is designed for reliable electrical wiring in residential, commercial, and industrial applications. With a durable orange circular design and rated for 450/750V, this cable features plain annealed copper conductors and PVC insulation, ensuring safety and longevity. Ideal for mains, sub mains, and sub circuits, it meets AS/NZS 5000.2 standards for quality and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 1.5mm² 3 Core + Earth Power Cable, Orange Circular Cable 450/750V, SRCV3015 Cable
Technical Specifications
- Conductor: Plain annealed copper (AS/NZS 1125)
- Insulation: PVC V90
- Sheath: PVC 5V-90
- Voltage Rating: 450/750V
- Operating Temperature: 90°C
- Standards: AS/NZS 5000.2
- Dimensions (H x L x W): 15mm x 100000mm x 15mm
- Weight: 11.5 kg
Key Features
- 1.5mm² 3 core + Earth configuration
- Orange circular cable
- Rated for 450/750V
- Conductor made of plain annealed copper (AS/NZS 1125)
- PVC V90 insulation
- PVC 5V-90 sheath
- Normal operating temperature of 90°C
Professional Installation Requirements
- Installation should be performed by a licensed electrician following local electrical codes and standards.
Applications
- Mains, sub mains and sub circuits in buildings and industrial plants
- Unenclosed or enclosed in conduit
- Buried direct or in underground ducts
- Suitable for glanding
Standards & Compliance
- AS/NZS 5000.2 – Electric cables – Polyvinyl chloride (PVC) insulated cables of rated voltages up to and including 450/750 V
Environmental Benefits
- Durable PVC insulation and sheath reduce environmental impact by extending cable life
- Copper conductor is recyclable
Warranty Information
Warranty details available upon request from Electra Cables.
Available Now
The Electra Cables SRCV3015 1.5mm² 3 core + Earth orange circular power cable is available for immediate purchase, ideal for electrical wiring in residential, commercial, and industrial applications.
