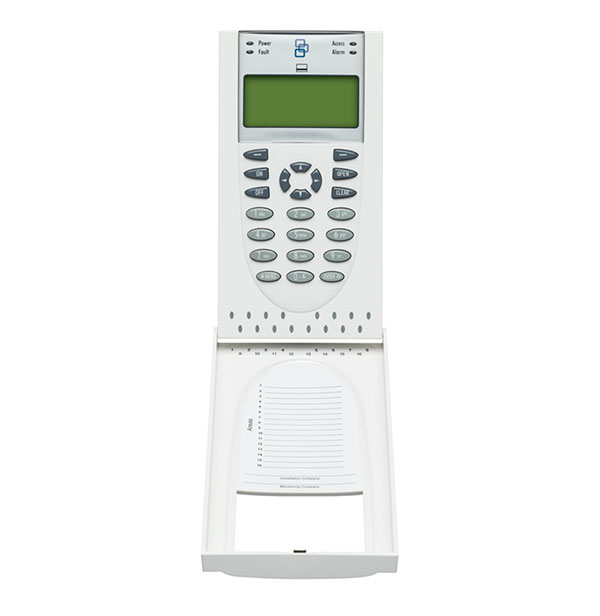

16 Area RAS Keypad 4x16 LCD with Proximity Reader Tecom

BRAND: Ness
SKU: 120-103
$847.90 List price: $1,130.50
+ −
30 Days Return Electricians Unlock Trade Access
Tecom 16 area RAS keypad features a 4x16 LCD, proximity reader and tamper detection. Ideal for alarm and access control systems.

Alternatively Known As: Tecom 16-Area Remote Arming Station, Tecom LCD RAS Keypad, Challenger CA1116, Tecom Smart Card Reader Keypad

Technical Specifications
  • Model: CA1116
  • Display: 4-line, 16-character LCD
  • Area Indication: 16 status LEDs
  • Reader: Integrated proximity/smart card reader
  • Security: Integrated tamper detection
  • User Interface: Keypad with customisable beeper tone
  • Construction: Rugged metal mounting bracket with multiple wiring conduits
  • Dimensions: 150 x 30 x 200 mm (H x L x W)
  • Weight: 1.0 kg
  • Dimensions (H x L x W): 150mm x 30mm x 200mm
  • Weight: 1.0 kg
Key Features
  • Supports operation across 16 alarm areas
  • Backlit four-line LCD for system status, alarm messages and access-control information
  • Integrated proximity reader for card-based authentication
  • Sixteen LEDs indicate armed, disarmed, fault and alarm conditions
  • Integrated tamper detection helps protect against unauthorised removal
  • Customisable idle display for site or emergency information
  • Suitable for Tecom Challenger intrusion and access-control systems
Professional Installation Requirements
  • Installation, wiring and commissioning should be performed by a suitably qualified security technician. System installation should follow the manufacturer’s instructions and applicable requirements of AS/NZS 2201.1.
Applications
  • Intrusion alarm system arming and disarming
  • Multi-area commercial security systems
  • Integrated alarm and access-control installations
  • Office, retail, institutional and industrial security sites
  • Replacement or expansion of compatible Tecom Challenger RAS keypads
Standards & Compliance
  • AS/NZS 2201.1:2007 — relevant to the design, installation, commissioning and maintenance of intruder alarm systems at client premises; verify complete system compliance for the installation.
Environmental Benefits
  • Durable construction can support extended service life and reduce replacement waste
  • Integrated keypad, LCD and proximity reader combine multiple user-interface functions in one device
  • Suitable for maintaining and extending existing Challenger installations, which may reduce the need for full system replacement
Warranty Information

Tecom Challenger hardware is covered by a 5-year warranty from the date of manufacture under the published Ness warranty statement. Warranty claims are subject to the manufacturer’s terms and return-to-base procedures. ([ness.com.au](https://ness.com.au/images/uploaded/Ness_warranty_statement23b.pdf?utm_source=openai))

Available Now

Available through Tecom Challenger and authorised Australian security-equipment distributors. The CA1116 is also marketed under the Ness SKU 120-103.
