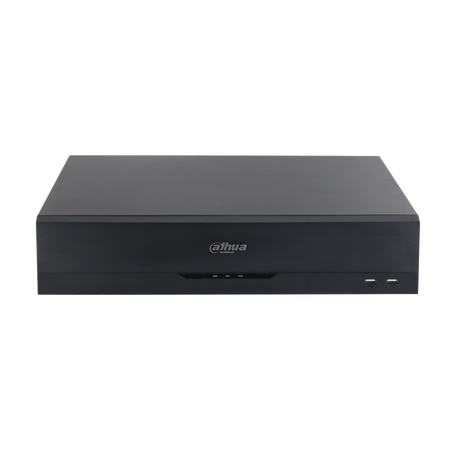

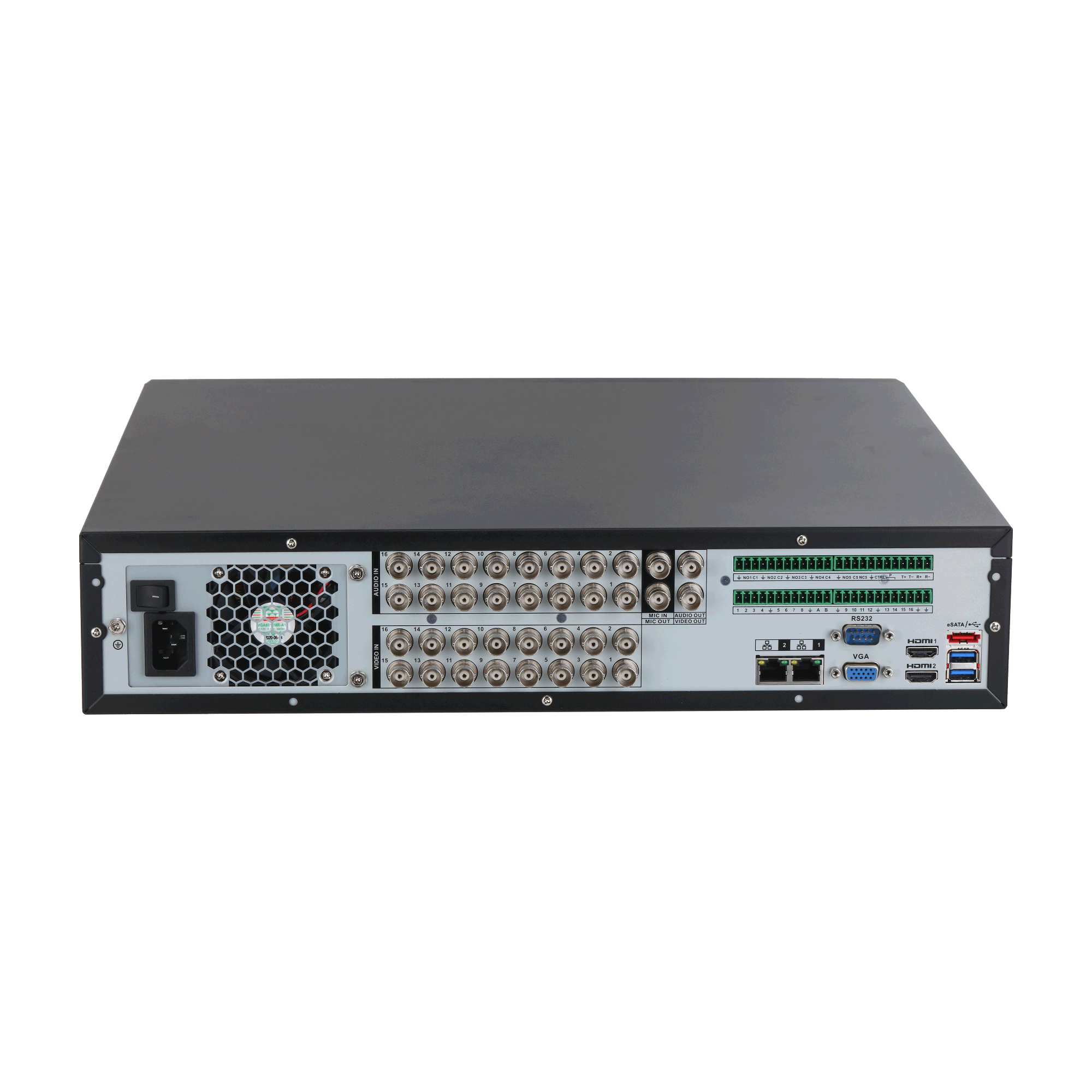

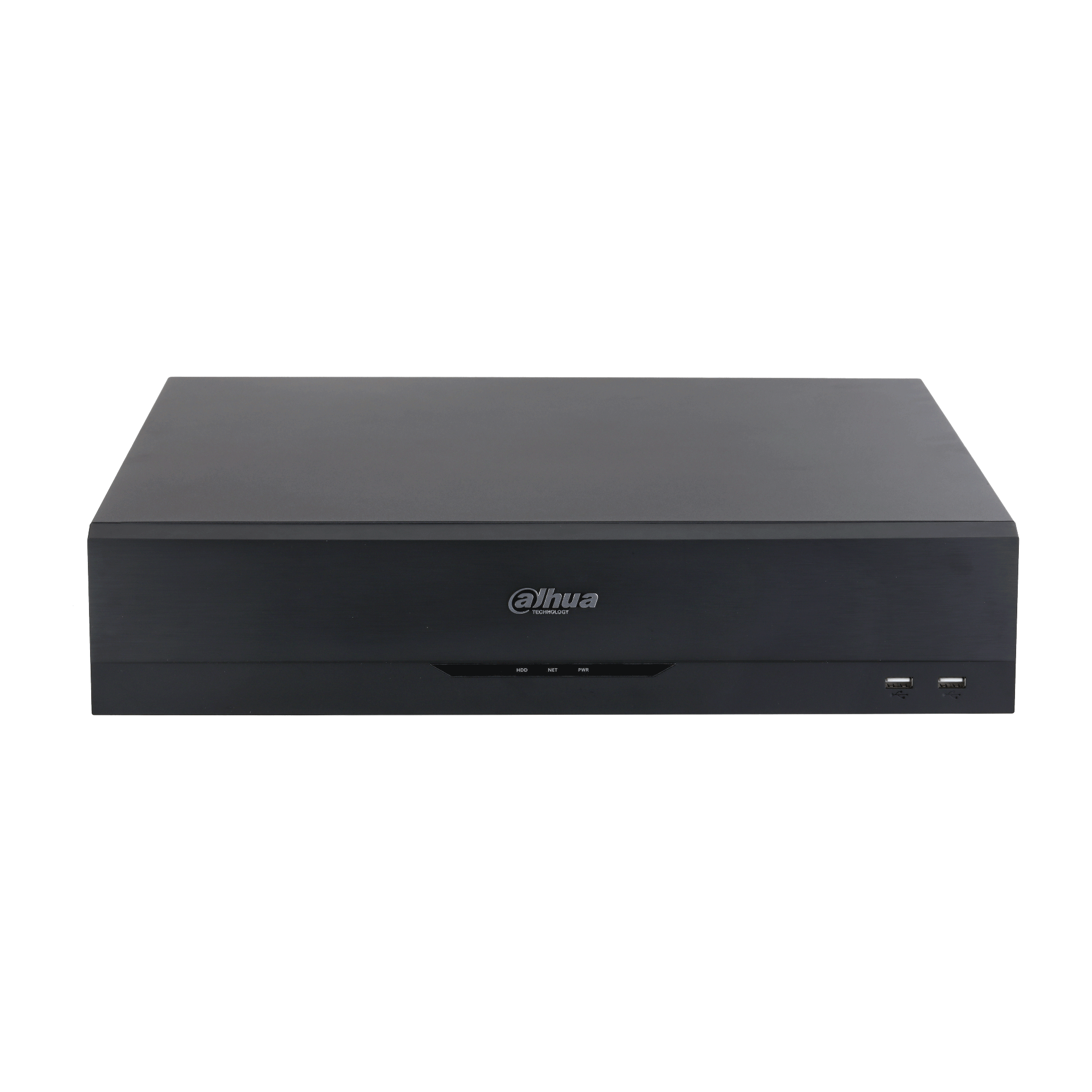

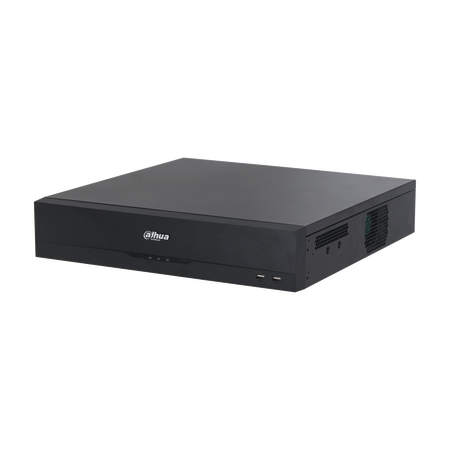

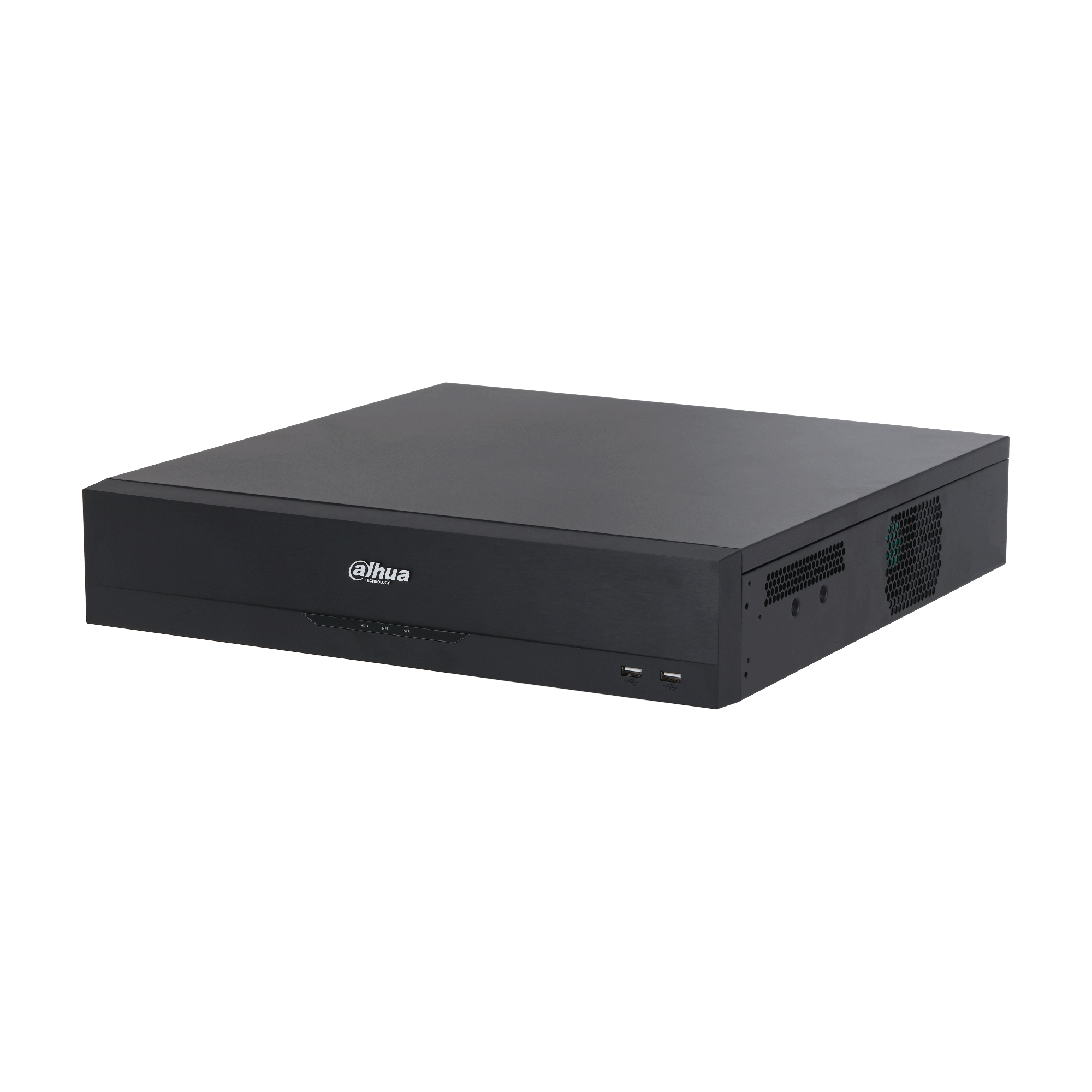

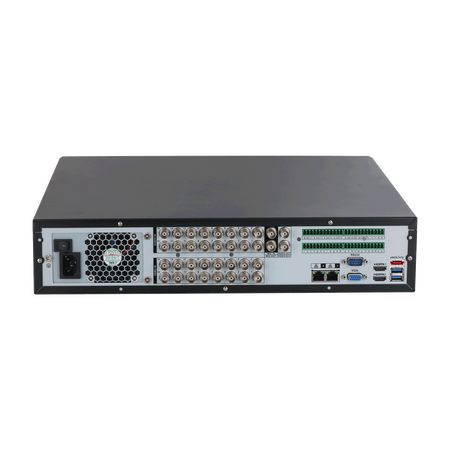

16 Channel 4K DVR | 128 Mbps Bandwidth | AI Perimeter Protection & Face Recognition | 8 SATA by Dahua Technology
This 16 channel 4K DVR offers 128 Mbps bandwidth and advanced AI perimeter protection with face recognition—ideal for commercial and residential surveillance. Built for security professionals, it ensures high-resolution recording and efficient monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 16 Channel 4K DVR | 128 Mbps Bandwidth | AI Perimeter Protection & Face Recognition | 8 SATA by Dahua Technology
Brand: Dahua Technology
SKU: XVR5816S-4KL-I3
Alternatively Known As: Dahua 16 Channel 4K DVR, Dahua XVR 16ch 8 HDD Recorder, Dahua 4K Penta-brid DVR
Technical Specifications
- 16-channel Penta-brid 4K/5MP recording
- Supports HDCVI, AHD, TVI, CVBS, and IP video inputs
- Up to 32 IP camera inputs, each up to 12 MP
- 128 Mbps incoming bandwidth
- 2-channel QuickPick 2.0 for analog channels
- 1-channel Privacy Protection with real-time face masking
- 16-channel SMD Plus or 32-channel SMD by camera
- 8-channel AI perimeter protection with tripwire and intrusion detection
- 2-channel face recognition with face comparison
- Smart H.265+ and H.265 dual-stream video compression
- Dimensions (H x L x W): 88mm x 400mm x 445mm
- Weight: 4 kg
Key Features
- 2-channel QuickPick 2.0 for efficient target retrieval on analog channels
- 1-channel Privacy Protection with real-time face masking and restoration
- 16-channel SMD Plus or 32-channel SMD by camera for accurate human and vehicle alarms
- 8-channel AI-powered perimeter protection with tripwire and intrusion detection
- 2-channel face recognition with face comparison support
- 16-channel AI Coding for storage and bandwidth savings while maintaining video detail
- Supports HDCVI, AHD, TVI, CVBS, and IP video inputs
- Up to 32-channel IP camera input with each channel supporting up to 12 MP
- Incoming bandwidth up to 128 Mbps
- Smart H.265+ and H.265 dual-stream video compression
Professional Installation Requirements
- Professional installation by a qualified security system technician or licensed electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Surveillance for commercial buildings
- Security monitoring for residential complexes
- Industrial site video recording
- Retail store security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Smart H.265+ compression reduces storage needs and energy consumption
- Efficient AI coding minimizes bandwidth usage
Warranty Information
3 years warranty provided by Dahua Technology against manufacturing defects.
Available Now
The Dahua XVR 16ch 8sata i3 4K Output NEW is available now for immediate purchase. Ideal for commercial and residential surveillance applications requiring advanced AI features and high-resolution recording.
