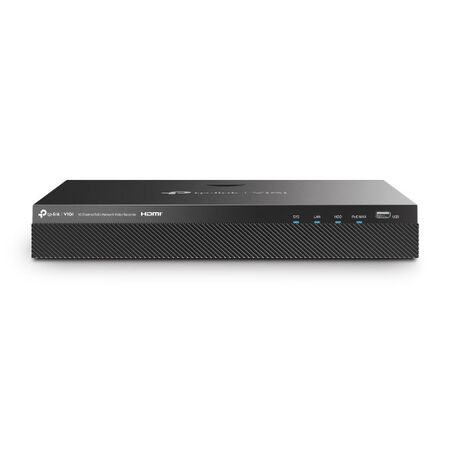

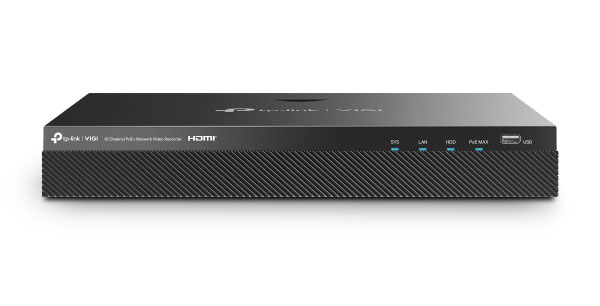

16 Channel Network Video Recorder 4K HDMI 90W PoE Ness

BRAND: Ness
SKU: 126-580
$580.90 List price: $774.60
+ −
30 Days Return Electricians Unlock Trade Access
Ness network video recorder features 16 channels, 4K HDMI output, 16MP decoding and a 90W PoE budget. Ideal for CCTV installs.

Alternatively Known As: 16-Channel NVR, CCTV Network Video Recorder, PoE+ NVR, VIGI NVR2016H-16P

Technical Specifications
  • Model: VIGI NVR2016H-16P
  • IP Video Input: 16 channels
  • HDMI Output: 3840 × 2160 at 30 Hz maximum
  • Decoding Capacity: Up to 16MP total
  • Decoding Performance: 2-channel 8MP, 4-channel 4MP or 8-channel 2MP at 25 fps
  • PoE Ports: 16 × RJ-45 10/100 Mbps
  • PoE Standard: IEEE 802.3af/at
  • PoE Budget: 90W total, up to 30W per port
  • Video Compression: H.265+, H.265, H.264+ and H.264
  • Network Bandwidth: 80 Mbps incoming, 60 Mbps outgoing
  • Storage: 2 × SATA interfaces, up to 10TB per HDD
  • Network Interface: 1 × RJ-45 10/100/1000 Mbps Ethernet
  • Outputs: HDMI and VGA simultaneous output
  • Audio: 1-channel audio input and 1-channel audio output
  • Interoperability: ONVIF and CGI
  • Power Supply: 53.5V DC, 2.43A
  • Power Consumption: 6.2W without disk; 40W with disk
  • Operating Temperature: -10°C to 55°C
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC and HDMI
  • Dimensions (H x L x W): 45mm x 330mm x 285mm
  • Weight: 1.9 kg
Key Features
  • 16-channel IP video recording and live viewing
  • 4K HDMI video output
  • 16MP total decoding capacity
  • 16 integrated PoE+ ports with a 90W shared power budget
  • Supports H.265+ compression for reduced storage and bandwidth requirements
  • Two SATA bays supporting up to 10TB per hard disk
  • 16-channel synchronous playback capability
  • HDMI and VGA simultaneous output
  • ONVIF compatibility for integration with compatible IP cameras
  • Remote monitoring through the VIGI mobile app and client software
  • Motion, intrusion, line-crossing and video tampering detection
  • HDD not included
Professional Installation Requirements
  • Install and configure as part of a CCTV system by a competent security or surveillance installer. Any fixed 230–240V electrical work must be completed by a licensed electrician in accordance with applicable Australian requirements.
Applications
  • Commercial CCTV installations
  • Small business and retail surveillance systems
  • Warehouses, workshops and industrial premises
  • Office and multi-site security monitoring
  • IP camera systems requiring integrated PoE power
  • Remote video monitoring and event recording
Standards & Compliance
  • RCM certification is listed by the manufacturer for the Australian/New Zealand market
  • AS/NZS CISPR 32 is the applicable EMC emissions standard for information technology and multimedia equipment; confirm the product declaration for the exact supply configuration
Environmental Benefits
  • H.265+ video compression can reduce network bandwidth and storage requirements compared with less efficient codecs
  • Replaceable hard-disk storage can extend the service life of the recorder and reduce whole-unit replacement
  • Lower storage requirements may reduce the number and capacity of hard disks required for a given recording duration
Warranty Information

3 years from date of purchase under the Ness Corporation warranty for Ness manufactured or supplied products, unless otherwise specified. Warranty claims are subject to Ness terms and conditions.

Available Now

Available through Ness and authorised Australian security-equipment distributors.
