16 Channel NVR 140W PoE No HDD VIGI Ness

BRAND: Ness
SKU: 126-580B
$685.80 List price: $914.40
+ −
30 Days Return Electricians Unlock Trade Access

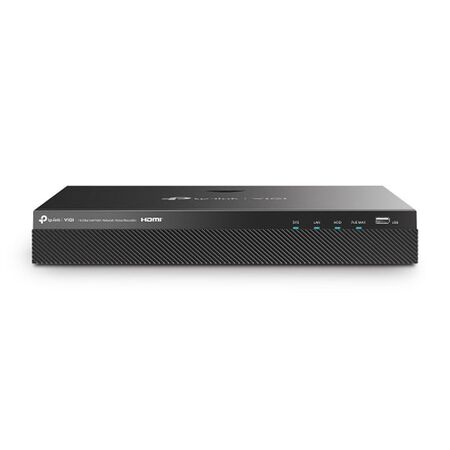

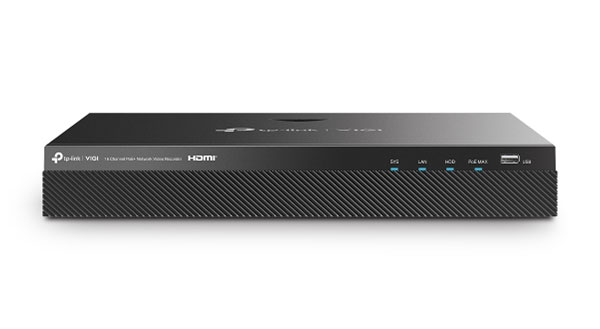

Ness VIGI network video recorder features 16 channels, 16MP support and a 140W PoE budget. Supplied without HDD. Ideal for CCTV installs.

Alternatively Known As: TP-Link VIGI NVR2016H-16MP V1, VIGI 16-Channel NVR, 16-Channel PoE NVR

Technical Specifications
  • Model: VIGI NVR2016H-16MP V1
  • Video Input: 16 IP channels
  • Maximum Recording Resolution: Up to 8MP/4K
  • Incoming Bandwidth: 80 Mbps
  • Outgoing Bandwidth: 60 Mbps
  • PoE Ports: 16 × 10/100 Mbps RJ-45
  • PoE Standard: IEEE 802.3af/at compliant
  • PoE Budget: 140 W total; 30 W maximum per port
  • Video Compression: H.265+, H.265, H.264+, H.264
  • Storage Interfaces: 2 × SATA
  • Maximum Storage: Up to 16 TB per HDD
  • Video Output: HDMI 4K and VGA
  • Network Interface: 1 × Gigabit Ethernet
  • Operating Temperature: -10°C to 55°C
  • Power Supply: 53.5 V DC, 3.37 A
  • Maximum Power Consumption: 6.2 W without disk; 40 W with disk
  • Hard Disk: Not included
  • Certifications and Markings: RCM, CE, EAC, UKCA, BSMI, VCCI, FCC, IC and HDMI listed by TP-Link
  • Dimensions (H x L x W): 45mm x 330mm x 285mm
  • Weight: 2.1 kg
Key Features
  • Supports 16-channel live viewing and synchronous playback
  • Sixteen integrated PoE+ ports simplify direct connection of compatible IP cameras
  • 140 W total PoE budget with up to 30 W available per port
  • Supports cameras and recording resolutions up to 16MP input capability, with recording up to 8MP/4K
  • 4K HDMI video output for high-resolution monitoring
  • H.265+ compression helps reduce recording bandwidth and storage requirements
  • Two SATA interfaces support expandable surveillance storage
  • ONVIF compatibility supports integration with compatible third-party cameras
  • Motion, intrusion, line-crossing, human and vehicle detection functions when supported by the connected camera
  • Supplied without a pre-installed HDD for application-specific storage selection
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security, data or electrical installer. Mains power, PoE cabling and network configuration must be completed in accordance with applicable Australian requirements and the manufacturer's instructions.
Applications
  • Commercial CCTV and security surveillance systems
  • Retail, warehouse and industrial video monitoring
  • Office and multi-site IP camera installations
  • Residential and strata surveillance systems
  • Direct PoE connection of compatible VIGI and ONVIF IP cameras
  • Centralised recording and remote monitoring of network cameras
Standards & Compliance
  • RCM certification is listed for the VIGI NVR2016H-16MP by TP-Link for the Australian market
  • AS/NZS 62368.1 is the applicable Australian/New Zealand safety standard category for audio, video and information and communication technology equipment; verify the supplied unit's declaration of conformity for the exact edition and model revision
Environmental Benefits
  • H.265+ video compression can reduce recording bandwidth and storage demand compared with less efficient codecs
  • Selectable HDD capacity allows storage to be matched to the installation, avoiding unnecessary hardware
  • Low stated recorder power consumption of 6.2 W without a disk can reduce operating energy use
  • The rack-mountable recorder is designed for long-term centralised surveillance operation, reducing replacement frequency when maintained correctly
Warranty Information

Ness Corporation's published warranty provides 3 years from the date of purchase for Ness manufactured or supplied products. Warranty claims require proof of purchase and product details; removal, reinstallation and transport costs may not be covered.

Available Now

Available through Ness and authorised Australian security and electrical distributors, subject to distributor stock.
