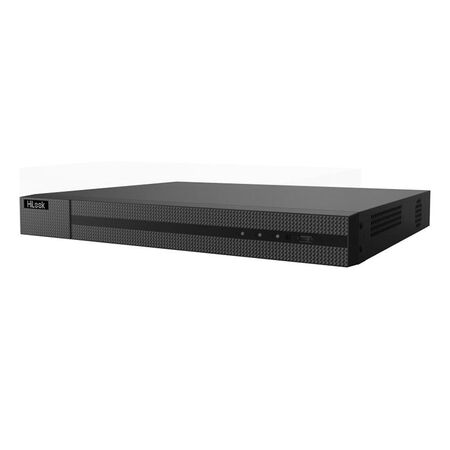

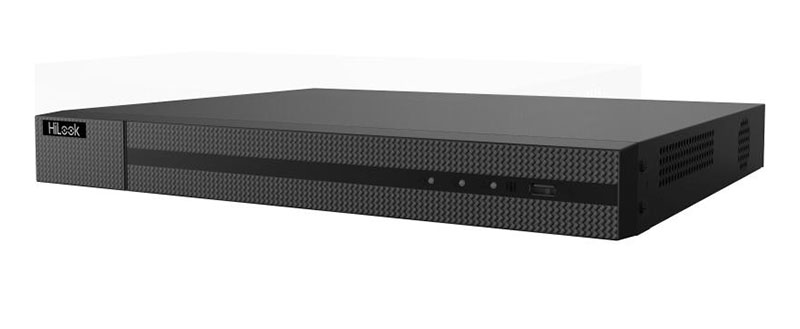

16 Channel NVR 16 PoE No HDD HiLook Hikvision
Hikvision HiLook NVR features 16 channels, 16 PoE ports and no HDD included. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: HiLook 16CH NVR, 16-Port PoE NVR, CCTV Network Video Recorder, HiLook Pro NVR
Technical Specifications
- Model: NVR-216MH-K/16P
- Channels: Up to 16 IP camera channels
- PoE Ports: 16 x RJ45 10/100 Mbps interfaces
- Incoming Bandwidth: Up to 160 Mbps
- Video Compression: H.265+, H.265, H.264+ and H.264
- Decoding Capacity: Up to 2-channel 12 MP, 4-channel 8 MP, 8-channel 4 MP or 16-channel 1080p
- Storage: 2 x SATA interfaces, up to 16 TB per HDD
- HDD Provision: No hard drive included
- PoE Standard: IEEE 802.3af/at
- PoE Budget: Up to 200 W
- Network Interface: 1 x RJ45 10/100/1000 Mbps Ethernet
- Video Outputs: 1 x HDMI and 1 x VGA
- Alarm Interfaces: 4 alarm inputs and 1 alarm output
- USB: 1 x USB 2.0 front and 1 x USB 2.0 rear
- Power Supply: 100–240 VAC, 50–60 Hz
- Operating Temperature: -10 °C to 55 °C
- Operating Humidity: 10% to 90% RH
- Certifications and Markings: CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA and BIS
- Dimensions (H x L x W): 52mm x 385mm x 315mm
- Weight: 3 kg
Key Features
- Supports up to 16 IP cameras
- 16 integrated PoE ports provide power and network connectivity to compatible cameras
- 4K recording and playback support
- H.265+ compression reduces storage and bandwidth requirements
- Two internal HDD bays allow flexible surveillance storage expansion
- Plug-and-play connection for compatible HiLook and Hikvision PoE cameras
- HDMI and VGA outputs support local monitor connection
- Supports remote viewing, playback and alarm management through compatible Hikvision software and applications
- Supplied without an HDD for customer-selected storage capacity
Professional Installation Requirements
- Installation and configuration should be performed by a suitably qualified CCTV or security technician. Fixed mains electrical work must be completed by a licensed electrician where required, with installation carried out in accordance with manufacturer instructions and applicable Australian regulations.
Applications
- Commercial CCTV surveillance systems
- Retail shops and shopping centres
- Warehouses and industrial facilities
- Offices, schools and healthcare premises
- Residential security installations requiring up to 16 PoE cameras
- Small-to-medium business IP camera systems
Standards & Compliance
- AS/NZS 62368.1:2022 – applicable audio, video, information and communication technology equipment safety standard
- AS/NZS CISPR 32:2015+A1:2020 – applicable electromagnetic compatibility emissions standard for multimedia and ICT equipment
- RCM requirements for Australian electrical and electronic equipment; verify the RCM marking on the supplied Australian model
Environmental Benefits
- H.265+ video compression can reduce required storage capacity and associated energy consumption compared with less efficient codecs
- RoHS compliance restricts specified hazardous substances in electrical and electronic equipment
- REACH and WEEE-related environmental markings support responsible product stewardship
- No HDD is included, allowing the installer to select an appropriately sized surveillance drive and avoid unnecessary component supply
- Durable rack-style metal chassis supports extended service life and can reduce replacement waste
Warranty Information
Australian Hikvision NVRs are commonly supplied with a 3-year back-to-base manufacturer warranty through authorised distributors; confirm the applicable warranty period and conditions at purchase, as coverage depends on model, channel and original proof of purchase.
Available Now
Available through Hikvision HiLook and authorised Australian security-system distributors, subject to distributor stock.
