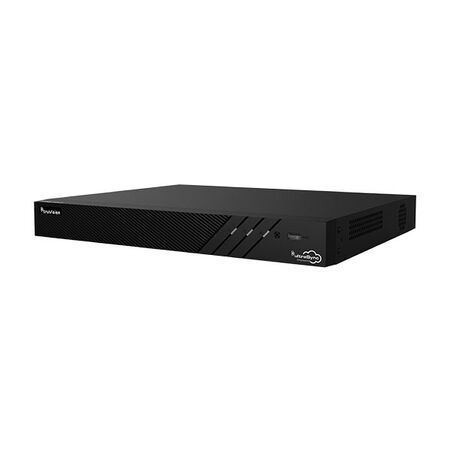

16 Channel NVR with 4TB HDD 4K PoE and Mobile App TruVision
TruVision 16 channel NVR features a 4TB HDD, 4K resolution, PoE and mobile app support. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TruVision NVR 12 16-Channel PoE Recorder, TVN-1216S-4T, 16-Channel CCTV Network Video Recorder
Technical Specifications
- Camera Channels: 16 IP channels
- Camera Bandwidth: 160 Mbps
- Storage Capacity: 4TB HDD
- Maximum Recording Resolution: 4K
- Video Compression: H.264, H.265 and H.265+
- PoE Ports: 16
- PoE Standards: PoE-af and PoE-at
- Total PoE Budget: 150 W
- Maximum PoE Power per Port: 30 W
- Network Interface: RJ-45 10/100/1000 Mbps Ethernet
- Local Video Output: HDMI and VGA, up to 4K
- Storage Interfaces: 2 SATA interfaces, up to 8TB per HDD
- Remote Access: Embedded UltraSync support and TVRmobile compatibility
- Recording Modes: Continuous, event and manual
- Operating Temperature: -10°C to +55°C
- Regulatory Compliance: CE, FCC, RCM, REACH, RoHS, UKCA, UL and WEEE
- Dimensions (H x L x W): 52mm x 385mm x 315mm
- Weight: 2.5 kg
Key Features
- Supports up to 16 IP cameras
- Integrated 16-port Plug and Play PoE switch
- 4K local output and maximum recording resolution
- H.265 and H.265+ compression for reduced storage and bandwidth requirements
- 160 Mbps incoming camera bandwidth
- 4TB installed hard drive capacity
- UltraSync remote access without port forwarding
- TVRmobile and TruVision Navigator software compatibility
- ONVIF and RTSP support
- Rack-mountable 1U chassis
- NAS and edge failover recording support
- Alarm inputs and output for security system integration
Professional Installation Requirements
- Installation and commissioning should be carried out by a suitably qualified CCTV/security installer. Mains power connection, structured cabling and any associated electrical work must comply with applicable Australian requirements, including AS/NZS 3000 where relevant.
Applications
- Commercial CCTV surveillance systems
- Retail, warehouse and industrial security monitoring
- Office and business premises surveillance
- Residential and multi-dwelling IP camera systems
- Remote CCTV monitoring through mobile devices
- PoE-powered IP camera installations requiring up to 16 channels
Standards & Compliance
- AS/NZS 62676.1.1:2020 for general video surveillance system requirements
- AS/NZS 62676.1.2:2020 for video transmission performance requirements
- AS/NZS 62676.2.1:2020 for video transmission protocols and IP interoperability
- AS/NZS 3000:2018 may apply to the associated mains electrical installation
Environmental Benefits
- H.265 and H.265+ compression can reduce storage and network bandwidth requirements compared with H.264-only systems
- RoHS compliance restricts the use of specified hazardous substances
- Replaceable HDD architecture can extend service life and reduce electronic waste
- Supports efficient centralised video recording across PoE-connected cameras, reducing the need for separate camera power supplies
Warranty Information
Carrier/TruVision warranty terms apply subject to the sales region, authorised distributor and product conditions. Confirm the applicable Australian warranty period with the supplier before purchase.
Available Now
Available through TruVision/Carrier Fire & Security channels and authorised Australian security-system distributors, subject to current product range and distributor stock.
