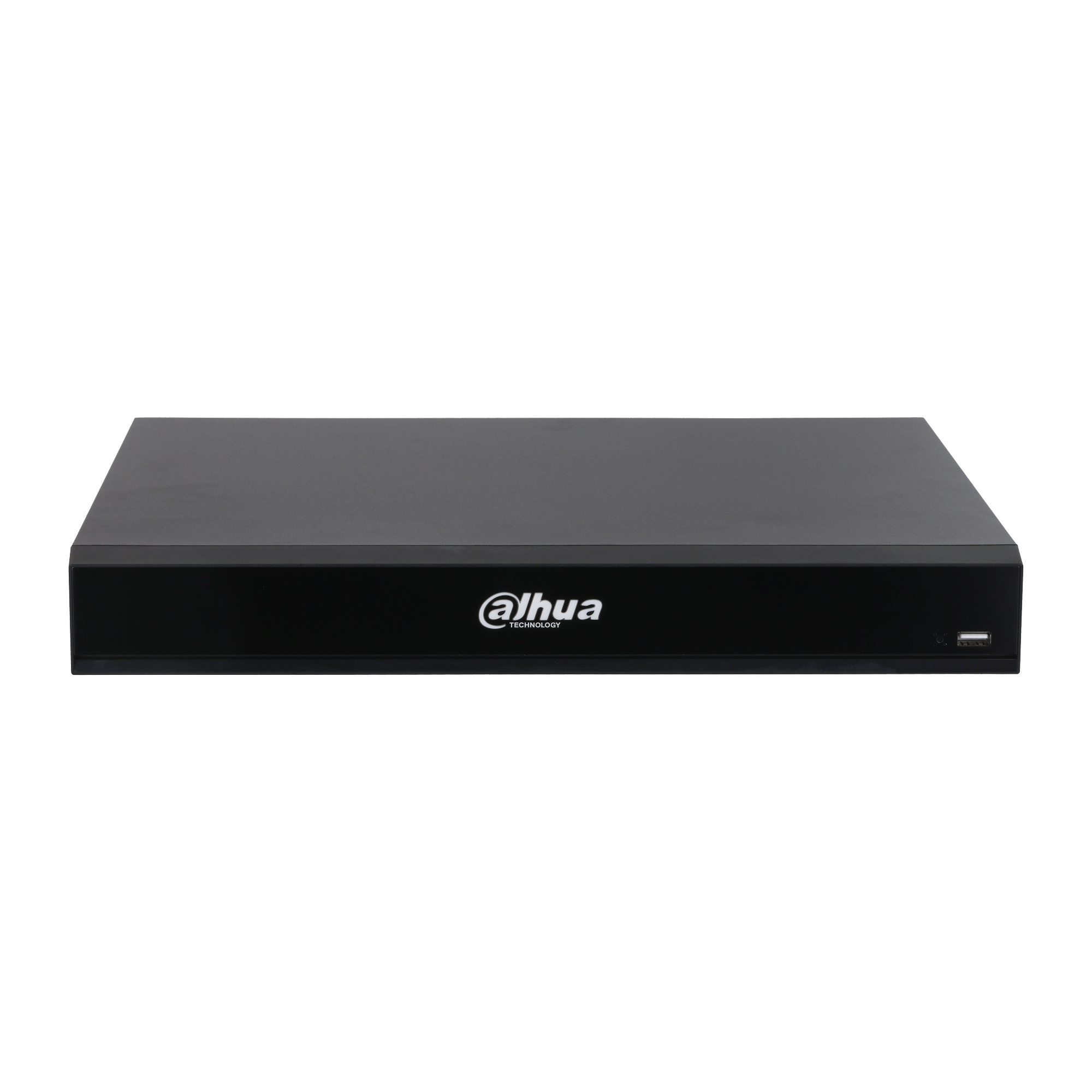

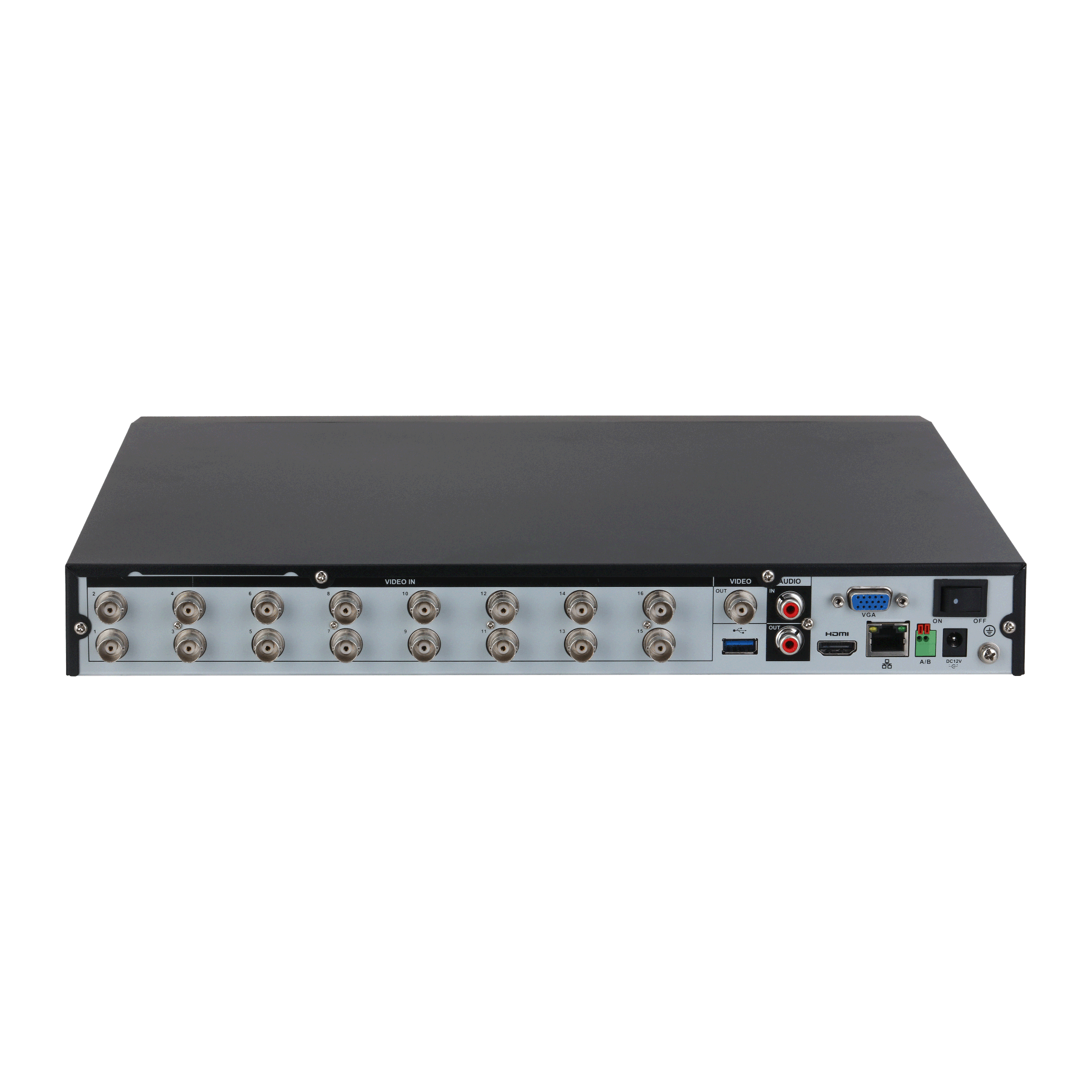

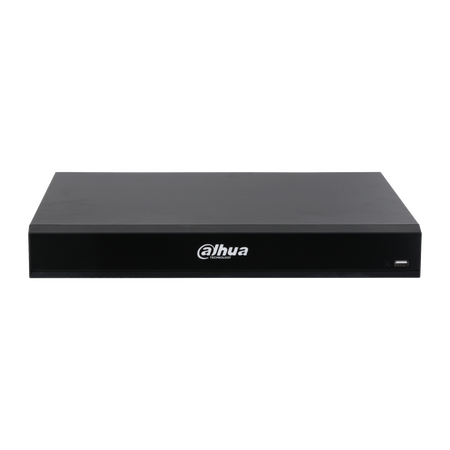

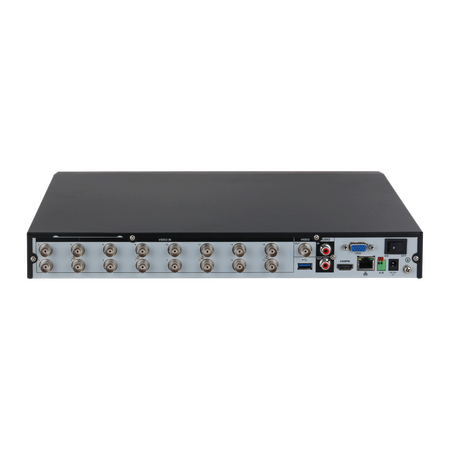

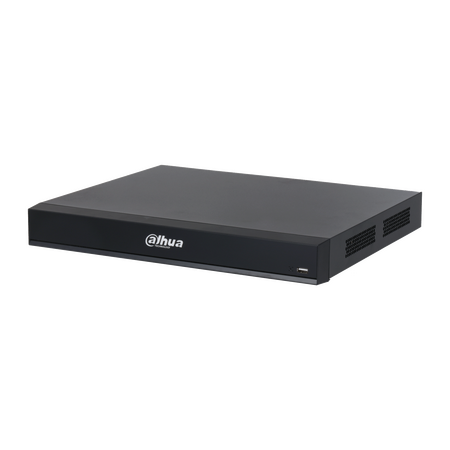

16 Channel Pentabrid DVR | 4K Video Input | AI Perimeter Protection & Face Recognition | 2 SATA by Dahua Technology

SKU: XVR7216AN-4K-I3
$1,021.70 List price: $1,277.10
+
This 16 channel Pentabrid DVR offers 4K video input and advanced AI perimeter protection, making it ideal for commercial and residential security surveillance. Built for efficient monitoring, it supports multiple camera types and features real-time face recognition for enhanced security.

Product Name/Title: 16 Channel Pentabrid DVR | 4K Video Input | AI Perimeter Protection & Face Recognition | 2 SATA by Dahua Technology

Brand: Dahua Technology

SKU: XVR7216AN-4K-I3

Alternatively Known As: Dahua 16 Channel Pentabrid DVR, Dahua XVR 16ch 4K Recorder, Dahua 2 SATA DVR, Dahua AI Video Recorder

Technical Specifications
  • 16-channel Penta-brid 4K video input
  • Supports HDCVI, AHD, TVI, CVBS, and IP cameras
  • Up to 32-channel IP camera input, max 8 MP per channel
  • Incoming bandwidth: 128 Mbps
  • 6-channel QuickPick 2.0 for analog channels
  • 1-channel Privacy Protection with real-time face masking
  • 16-channel SMD Plus for human and vehicle detection
  • 12-channel AI perimeter protection with tripwire and intrusion detection
  • 6-channel face recognition with comparison
  • Smart H.265+ and Smart H.265 dual-stream compression
  • Supports 2 SATA hard drives
  • Dimensions (H x L x W): 45mm x 400mm x 440mm
  • Weight: 3.5 kg
Key Features
  • 6-channel QuickPick 2.0 for improved target retrieval efficiency on analog channels
  • 1-channel Privacy Protection with real-time masking and restoring of human faces
  • 16-channel SMD Plus for accurate human and vehicle alarm triggering
  • 12-channel AI-powered perimeter protection with tripwire and intrusion detection
  • 6-channel face recognition with face comparison support
  • 16-channel AI Coding for storage and bandwidth savings while maintaining video detail
  • Supports HDCVI, AHD, TVI, CVBS, and IP video inputs
  • Supports up to 32-channel IP camera input with up to 8 MP resolution per channel
  • Incoming bandwidth up to 128 Mbps
  • Smart H.265+ and Smart H.265 dual-stream video compression
Professional Installation Requirements
  • Professional installation by a qualified security system technician or licensed electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
  • Commercial security surveillance
  • Industrial monitoring
  • Retail store video recording
  • Residential security systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Smart H.265+ compression reduces storage needs and energy consumption
  • Efficient AI coding optimizes bandwidth usage, lowering network energy demand
Warranty Information

3 years warranty against manufacturing defects.

Available Now

The Dahua XVR 16ch 2sata i3 Pentabrid 4K Digital Video Recorder is available now for immediate purchase. Ideal for commercial and residential security surveillance applications.
