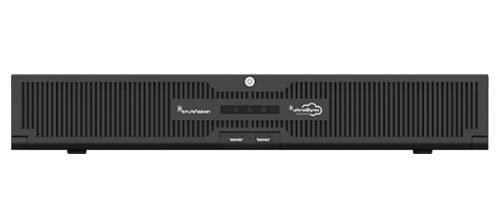

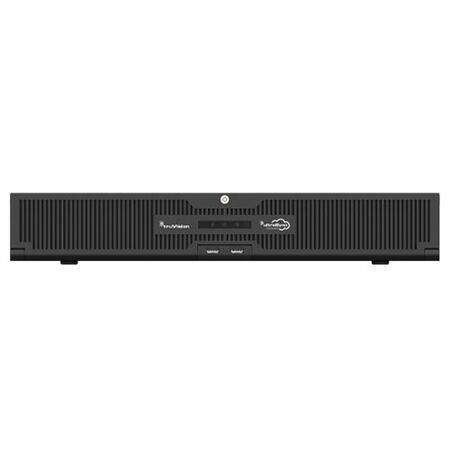

16 Channel Pro NVR No HDD TruVision

BRAND: Ness
SKU: 121-116
$2,177.70 List price: $2,903.50
+ −
30 Days Return Electricians Unlock Trade Access
TruVision 16 channel Pro NVR supplied without a hard drive. Ideal for CCTV installs where the HDD is specified separately.

Alternatively Known As: TruVision NVR 23 16-Channel PoE NVR, TruVision TVN23 16CH Network Video Recorder

Technical Specifications
  • Model: TVN-2316S-000
  • Recorder Type: Linux embedded network video recorder
  • IP Camera Channels: 16
  • Camera Recording Bandwidth: 256 Mbps
  • Video Compression: H.264, H.264+, H.265 and H.265+
  • Supported Streaming: ONVIF, RTSP and custom protocols
  • Storage Interfaces: 4 SATA interfaces
  • Maximum HDD Capacity: 10 TB per SATA drive
  • Maximum Embedded Storage: 40 TB with four 10 TB drives
  • PoE Ports: 16
  • PoE Standards: IEEE 802.3af and IEEE 802.3at
  • Total PoE Budget: 200 W
  • Video Outputs: 2 x HDMI, 1 x VGA and 1 x BNC
  • Synchronous Playback: Up to 16 channels
  • Network Interface: RJ-45 10/100/1000 Mbps self-adaptive Ethernet
  • Alarm Inputs: 16
  • Alarm Outputs: 9
  • Power Supply: 100–240 VAC
  • Power Consumption: 15 W without HDD and with PoE disabled
  • Operating Temperature: -10 to +55 °C
  • Relative Humidity: 10–90%
  • Regulatory Marking: RCM
  • Hard Drive: Not included
  • Dimensions (H x L x W): 70mm x 469mm x 442mm
  • Weight: 5 kg
Key Features
  • Records and manages up to 16 IP camera channels
  • Integrated 16-port PoE switch for compatible camera connections
  • Supports H.264/H.265 compression and up to 256 Mbps incoming camera bandwidth
  • Four SATA interfaces support configurable surveillance storage
  • Supports ONVIF Profile S third-party camera integration
  • UltraSync connectivity enables remote access without port forwarding
  • Compatible with TruVision Navigator, TVRMobile and web browsers
  • Motion detection, video analytics, privacy masking and tamper detection
  • Hard drive redundancy, grouping, auto-archiving and recorder failover support
  • Rack-mountable 1.5U chassis with lockable flip-open front panel
Professional Installation Requirements
  • Installation should be performed by suitably qualified security-system and electrical personnel. Mains connection, network configuration, PoE camera installation and commissioning should follow applicable Australian electrical and security installation requirements.
Applications
  • Commercial CCTV surveillance systems
  • Retail stores, warehouses and offices
  • Small to medium-sized industrial facilities
  • Multi-camera IP security installations
  • Installations requiring separately specified surveillance-grade hard drives
Environmental Benefits
  • H.265 compression can reduce recording storage requirements, network bandwidth and associated energy use compared with less efficient codecs
  • Configurable HDD capacity allows storage to be sized to the application, helping avoid unnecessary hardware use
  • Replaceable and expandable SATA storage can extend the recorder system's service life and reduce premature equipment replacement
  • Supplied without a hard drive, allowing the installer to select an appropriate surveillance-rated drive and avoid unsuitable storage hardware
Warranty Information

TruVision recorders are covered by a 3-year warranty from date of manufacture under the Australian distributor warranty information; terms and claim requirements should be confirmed with the supplying distributor.

Available Now

Available through TruVision and authorised Australian security and CCTV distributors, subject to current product range and distributor stock.
