Trade Discount 17%

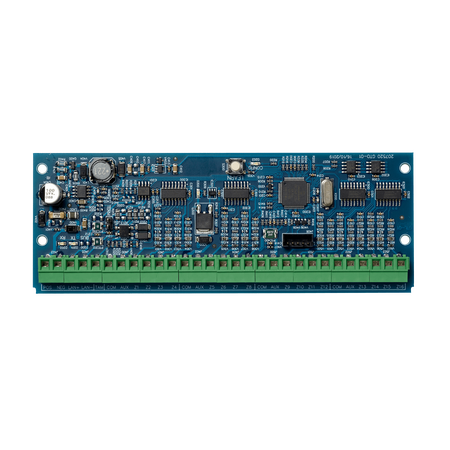

16 Input Expander PCB | Supervised Hardwired Zone Inputs | Firmware Upgradeable | by Reliance XR
The 16 Input Expander PCB is designed for expanding Aritech Reliance XR Series alarm systems, featuring 16 supervised hardwired zone inputs and a separate box tamper input. Ideal for both commercial and residential security applications, this firmware upgradeable expander ensures compliance with EN50131-3 CLASS II GRADE 2 standards, providing reliable performance and efficient system upgrades.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 16 Input Expander PCB | Supervised Hardwired Zone Inputs | Firmware Upgradeable | by Reliance XR
Brand: Reliance XR
SKU: NXG-216N
Alternatively Known As: XR Series 16 Zone Expander, NXG-216N Input Expander, Aritech Reliance Zone Expander PCB
Technical Specifications
- 16 supervised hardwired zone inputs
- Separate box tamper input
- NetworX/Reliance form factor
- Firmware upgrade via DLX900 over the network
- Compliance: EN50131-3 CLASS II GRADE 2, INCERT T031
- Dimensions (H x L x W): 100mm x 30mm x 150mm
- Weight: 0.5 kg
Key Features
- 16 supervised hardwired zone inputs
- Separate box tamper input
- NetworX/Reliance form factor
- Firmware upgradeable via DLX900 over the network
- Complies with EN50131-3 CLASS II GRADE 2, INCERT T031
Professional Installation Requirements
- Installation by a qualified security system technician or licensed electrician is recommended to ensure compliance and optimal performance.
Applications
- Security systems expansion for Aritech Reliance XR Series alarm panels
- Commercial and residential alarm system installations requiring additional zone inputs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports efficient security system upgrades without full panel replacement, reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Reliance XR for specific warranty terms.
Available Now
The RELIANCE S116108 XR SERIES 16 INPUT EXPANDER PCB is available for immediate purchase, ideal for expanding Aritech Reliance XR Series alarm systems in commercial and residential security applications.
