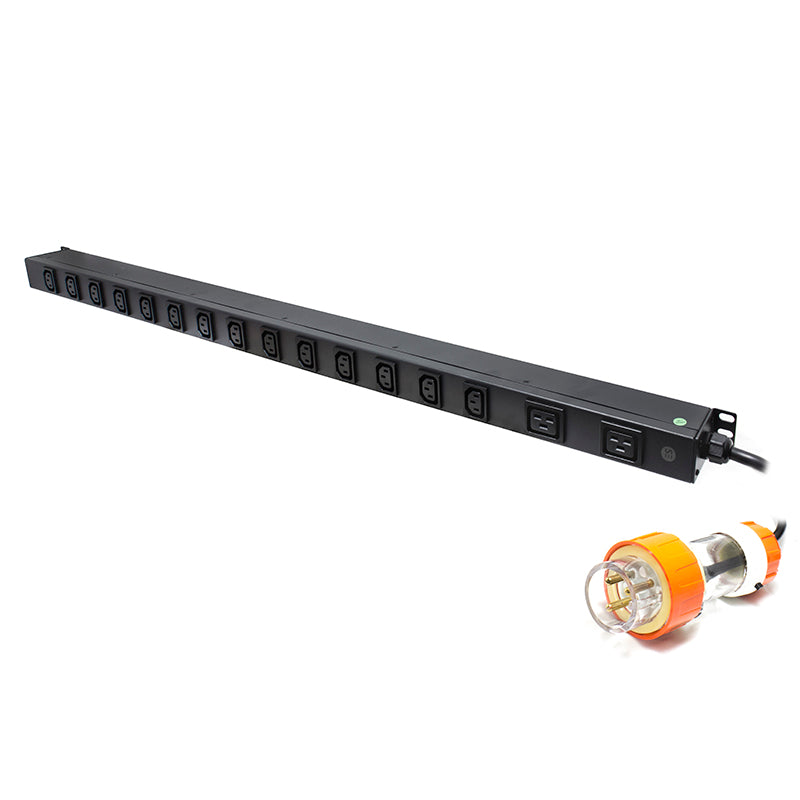

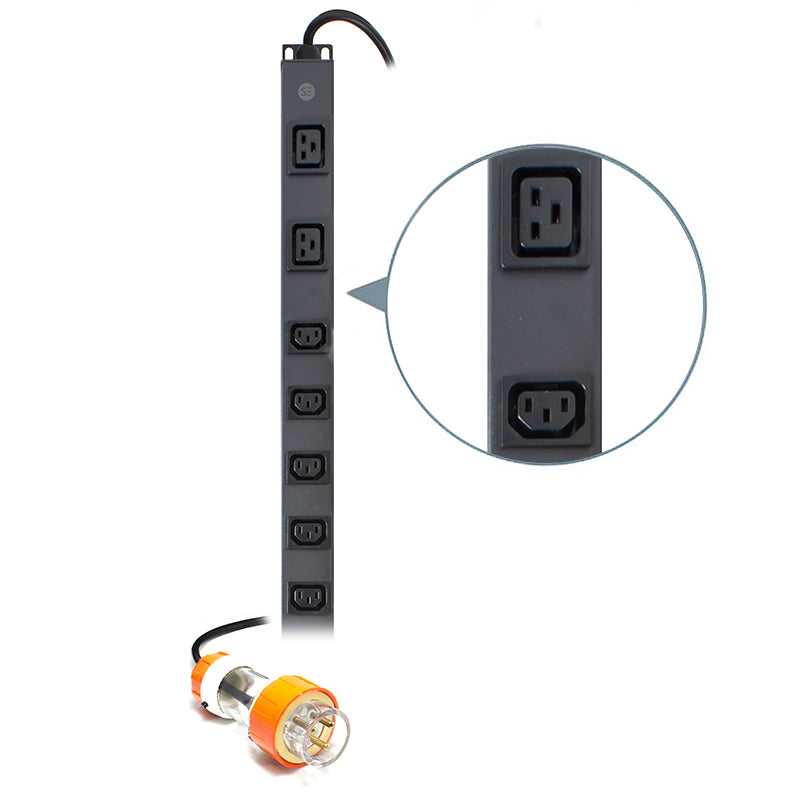

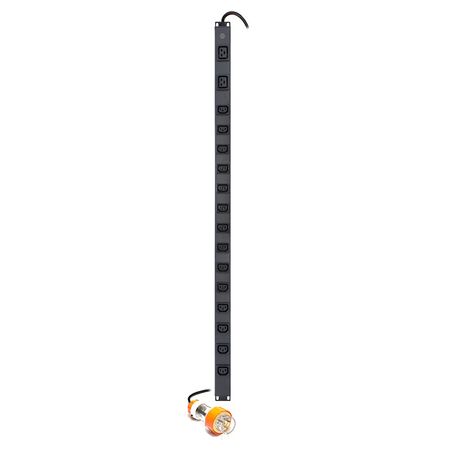

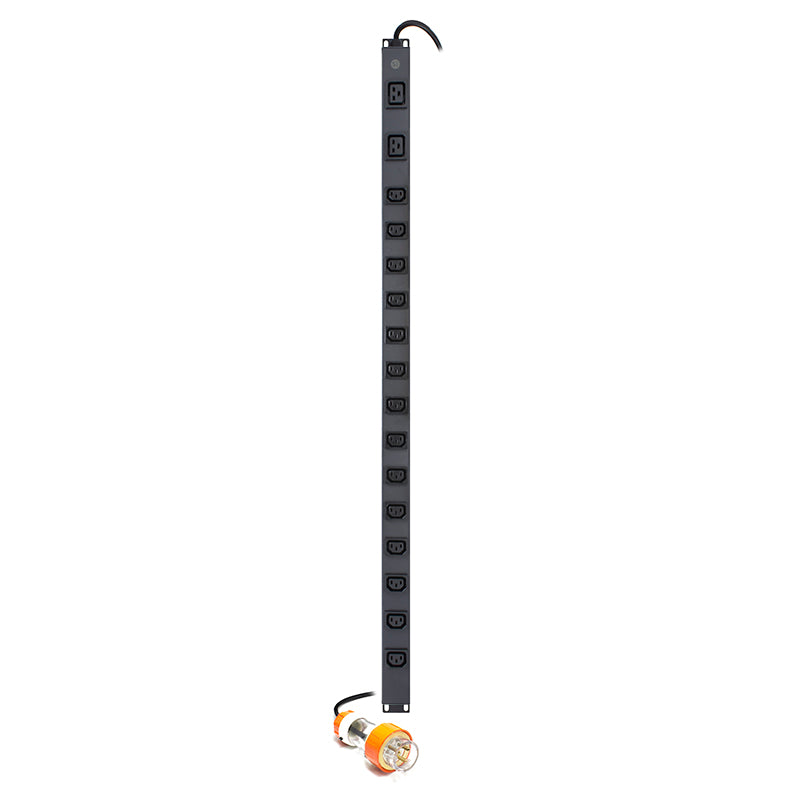

16 Port Basic PDU | 14 C13 10A & 2 C19 16A Outputs | IP56 Rated | by SERVEREDGE
The 16 Port Basic PDU from Serveredge features 14 IEC C13 outputs rated at 10A and 2 IEC C19 outputs rated at 16A, making it ideal for data centers and server rooms. Designed for reliable power distribution, this vertical rack mount unit supports up to 32A input current and is equipped with an IP56 rated 3-pin round captive plug, ensuring optimal performance in network-critical environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 16 Port Basic PDU | 14 C13 10A & 2 C19 16A Outputs | IP56 Rated | by SERVEREDGE
Brand: SERVEREDGE
SKU: SEDG-16PV-C13C19-32A
Alternatively Known As: 16 Port IEC PDU, Server Power Distribution Unit, Rack Mount PDU, IEC C13 PDU, IEC C19 PDU
Technical Specifications
- Ports: 16 total (14 x IEC C13 10A, 2 x IEC C19 16A)
- Input Plug: IP56 3-pin round captive plug, 32A
- Mounting: Vertical rack mount
- Power Rating: Supports up to 32A input current
- Dimensions (H x L x W): 900mm x 80mm x 60mm
- Weight: 3.5 kg
Key Features
- Vertical 16 port IEC Power Distribution Unit (PDU)
- Includes 14 IEC C13 outputs rated at 10A
- Includes 2 IEC C19 outputs rated at 16A
- Equipped with IP56 3-pin round captive plug rated at 32A
- Designed for reliable power distribution in network-critical environments
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Data centers and server rooms for power distribution
- Network cabinets and racks
- IT infrastructure requiring multiple IEC power outputs
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient power distribution reduces energy waste in data center environments
- Durable design extends product lifecycle, reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please contact Serveredge for detailed warranty terms and conditions.
Available Now
The Serveredge 16 Port Basic PDU is available for immediate purchase, ideal for data centers, server rooms, and network infrastructure requiring reliable power distribution.
