16-port Cloud Managed Fast PoE Switch | 240W Power Budget | Hi-PoE Support | Rackmount Tabs | by Cornick
The 16-port Cloud Managed Fast PoE Switch is designed for enterprise and SMB network infrastructure, featuring 16 x 10/100Mbps PoE ports with a total power budget of 240W. Ideal for security camera systems and VoIP deployments, this switch supports cloud management via a mobile app for easy remote configuration and monitoring, ensuring reliable performance and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 16-port Cloud Managed Fast PoE Switch | 240W Power Budget | Hi-PoE Support | Rackmount Tabs | by Cornick
Brand: Cornick
SKU: VSPOE-SWA16C
Alternatively Known As: 16-port PoE Switch, Cloud Managed PoE Switch, Fast Ethernet PoE Switch, VIP Vision VSPOE-SWA16C
Technical Specifications
- Ports: 16 x 10/100Mbps PoE ports, 2 x Hi-PoE ports
- PoE Standards: PoE, PoE+, Hi-PoE up to 90W per port
- Total PoE Power Budget: 240W
- Data Rate: 100Mbps per PoE port
- Management: Cloud managed via mobile app
- Switch Type: L2 managed switch with VLAN, QoS support
- Extend Mode: Supports Ethernet cable runs up to 250m
- Enclosure: Full metal
- Protection: Lightning overvoltage protection up to 4kV
- Mounting: Rackmount tabs included

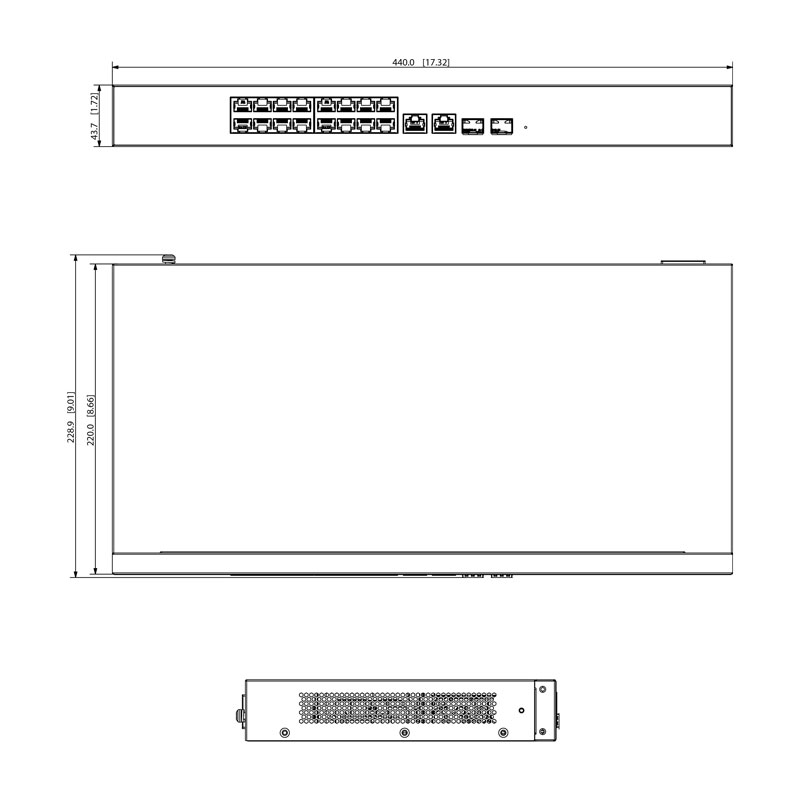

- Dimensions (H x L x W): 44mm x 220mm x 440mm
- Weight: 3.5 kg
Key Features
- 16 10/100Mbps PoE ports with PoE, PoE+ and Hi-PoE support up to 90W per port
- 2 Hi-PoE uplink ports
- Total PoE power budget of 240W
- Cloud managed via mobile app for remote configuration and monitoring
- Supports VLAN, QoS, and L2 managed switch features
- Extend mode supports Ethernet cable runs up to 250m
- Rackmount tabs for cabinet installation
- Full metal enclosure with professional appearance
- Lightning overvoltage protection up to 4kV
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure proper rack mounting, power supply, and network configuration.
Applications
- Enterprise and SMB network infrastructure
- Security camera systems requiring PoE power
- VoIP phone systems
- Wireless access point deployments
- Data centers and server rooms
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient PoE technology reduces power consumption by delivering power only to connected devices
- Cloud management reduces the need for on-site maintenance visits, lowering carbon footprint
Warranty Information
3 years warranty covering manufacturing defects and hardware failures.
Available Now
The Cornick 16-port Cloud Managed Fast PoE Switch VSPOE-SWA16C is available for immediate purchase, ideal for enterprise and security network deployments requiring reliable PoE power and cloud management.
