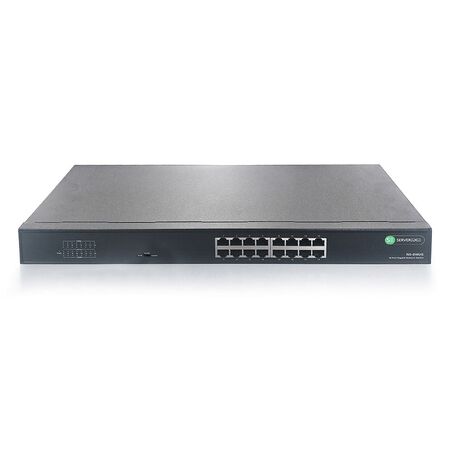

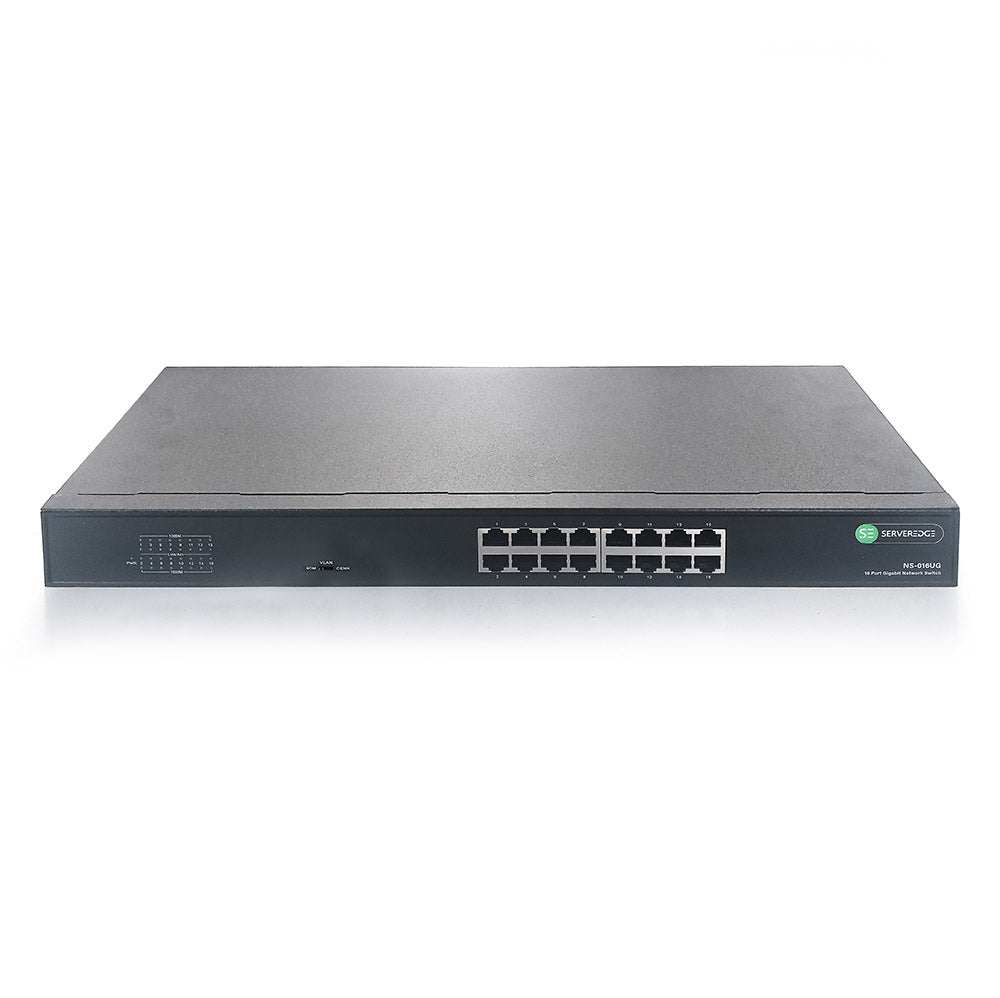

16-Port Gigabit Network Switch | 56Gbps Bandwidth | Energy-Efficient Technology | Non-Blocking Architecture | by SERVEREDGE
The 16-Port Gigabit Network Switch is designed for small to medium business networks, offering 56Gbps bandwidth and innovative energy-efficient technology that reduces power consumption by up to 40%. With a non-blocking switching architecture and plug-and-play installation, it’s perfect for office desktop networking and rack-mounted setups, ensuring maximum throughput and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 16-Port Gigabit Network Switch | 56Gbps Bandwidth | Energy-Efficient Technology | Non-Blocking Architecture | by SERVEREDGE
Brand: SERVEREDGE
SKU: NS-16UG
Alternatively Known As: 16-Port Gigabit Ethernet Switch, 16-Port Network Switch, Gigabit LAN Switch, Rackmount Network Switch
Technical Specifications
- Port Count: 16 Gigabit Ethernet ports
- Bandwidth: 56Gbps
- Switching Architecture: Non-blocking
- Flow Control: IEEE 802.3x for Full Duplex, Backpressure for Half Duplex
- Auto-MDI/MDIX: Supported
- MAC Address Table: Auto-learning and auto-aging
- Negotiation: Port N-Way Auto-Negotiation
- Forwarding Method: Store and Forward
- Installation: Desktop or Rack mountable
- Plug and Play: Yes
- Dimensions (H x L x W): 44mm x 140mm x 220mm
- Weight: 1.2 kg
Key Features
- Innovative energy-efficient technology saves power up to 40%
- 100% Data filtering rate eliminates all error packets
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
- 56Gbps Bandwidth
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Supports port N-Way Auto-Negotiation, Store and Forward
- Compact size design for desktops, Rack mountable
- Plug and Play design simplifies installation
Professional Installation Requirements
- Installation is straightforward with Plug and Play design; however, professional setup is recommended for rack mounting and network configuration.
Applications
- Small to medium business networks
- Office desktop networking
- Rack-mounted network infrastructure
- Home office and professional networking setups
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient technology reduces power consumption by up to 40%, lowering environmental impact.
Warranty Information
3 years warranty covering manufacturing defects and hardware failures.
Available Now
The Serveredge 16-Port Gigabit Network Switch is available now for immediate purchase. Ideal for enhancing network performance in office and professional environments.
