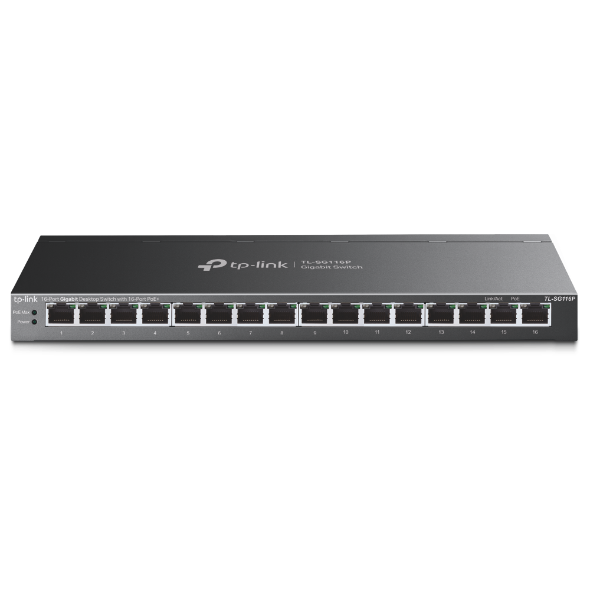

16-Port Unmanaged Gigabit PoE+ Switch | 120W Power Budget | Metal Case | by TP-LINK
The 16-Port Unmanaged Gigabit PoE+ Switch is designed for small to medium business networks, featuring 16× 10/100/1000 Mbps RJ45 ports and a total PoE power budget of 120W. With plug-and-play functionality and no configuration required, it’s perfect for powering IP cameras, VoIP phones, and wireless access points, ensuring reliable connectivity and performance in commercial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Gigabit PoE Switch, 16-Port PoE+ Network Switch, Unmanaged PoE Switch, TP-LINK PoE Switch
Technical Specifications
- 16× 10/100/1000 Mbps RJ45 ports
- Supports IEEE 802.3af/at PoE+ standard
- Maximum PoE power per port: 30 W
- Total PoE power budget: 120 W
- Data and power transmission range up to 250 m in Extend Mode
- Priority Mode for ports 1–4
- Isolation Mode for client traffic separation
- PoE Auto Recovery feature
- Plug and play, no configuration required
- Dimensions (H x L x W): 45mm x 180mm x 250mm
- Weight: 1.5 kg
Key Features
- 16× 10/100/1000 Mbps RJ45 ports with PoE+ support
- Supports IEEE 802.3af/at PoE+ standard
- Up to 30 W power per PoE port and 120 W total PoE power budget
- Extended data and power transmission up to 250 m in Extend Mode
- Priority Mode for ports 1–4 to ensure quality for sensitive applications
- Isolation Mode for client traffic separation enhancing security and performance
- PoE Auto Recovery to reboot unresponsive PoE-powered devices automatically
- Plug and play with no configuration required
- Durable metal case housing
- 5-year warranty
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Small to medium business networks
- IP cameras and surveillance systems
- VoIP phones and wireless access points
- Network expansion for offices and commercial spaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces the need for separate power cables, lowering material use and installation impact
- Energy-efficient design minimizes power consumption during operation
Warranty Information
5 years warranty provided by the manufacturer.
Available Now
The TP-LINK 16-Port Unmanaged Gigabit PoE+ Switch is available for immediate purchase, ideal for expanding network infrastructure in commercial and business environments.
