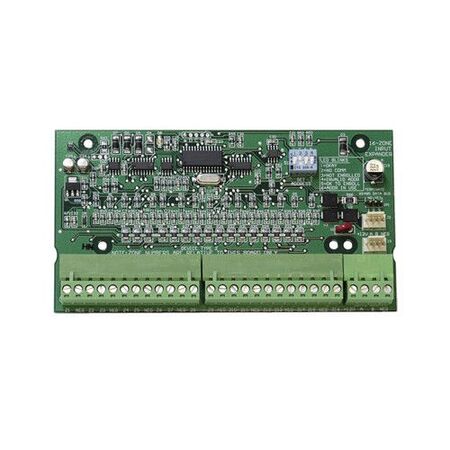

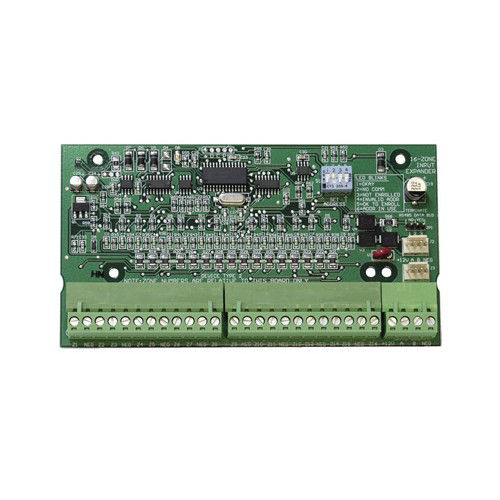

16 Zone Input Expander 9-14VDC EOL Supervised Ness

BRAND: Ness
SKU: 101-210
$243.20 List price: $324.30
+ −
30 Days Return Electricians Unlock Trade Access
Ness input expander features 16 zones, 9-14VDC operation, EOL supervision and flash memory. Ideal for expanding alarm systems.

Alternatively Known As: Ness 101-210, M1 16 Zone Input Expander, ELK-M1XIN Zone Expander

Technical Specifications
  • Model: M1XIN
  • SKU: 101-210
  • Inputs: 16 hardwired zones
  • Zone supervision: End-of-line resistor supervised
  • Operating voltage: 9–14 VDC
  • Current draw: 65 mA
  • Data connection: Four-wire data bus
  • Memory: Flash memory for field firmware updates
  • Addressing: DIP switch address settings
  • Connections: Plug-in terminal strips with elevator-style wire clamps and screws
  • Indicators: Status and diagnostic LED
  • Compatibility: Ness M1, M1 Gold and EZ-24 control boards
  • Expansion capacity: Up to 12 input expanders, supporting up to 208 total zones
  • Dimensions (H x L x W): 19.05mm x 152.4mm x 82.5mm
  • Weight: 0.2 kg
Key Features
  • Adds 16 hardwired alarm zones to compatible Ness M1 control systems
  • Supports end-of-line resistor supervision for zone wiring
  • Operates through the four-wire data bus
  • Flash memory supports field firmware updating
  • DIP switch addressing for system expansion
  • Plug-in terminal strips simplify field wiring
  • On-board data bus termination jumper
  • Status and diagnostic LED for service checks
  • Suitable for vertical mounting using compatible circuit-board glides
Professional Installation Requirements
  • Installation, addressing, bus termination and commissioning should be performed by a suitably qualified security alarm technician in accordance with the control panel documentation and AS/NZS 2201.1:2007. Isolate control-panel power before wiring or servicing.
Applications
  • Expanding hardwired zones on Ness M1 security alarm systems
  • Residential intrusion alarm installations
  • Commercial security and access-control installations
  • Connecting additional sensors, contacts, detectors and supervised alarm inputs
  • Retrofit security systems requiring additional wired inputs
Standards & Compliance
  • Applicable installation framework: AS/NZS 2201.1:2007 Intruder alarm systems — client’s premises — design, installation, commissioning and maintenance
Environmental Benefits
  • Flash-memory firmware updating can extend service life and reduce replacement of otherwise functional hardware
  • Low-voltage operation supports integration with energy-efficient alarm power supplies
  • Durable modular construction can reduce electronic waste by allowing zone expansion without replacing the main control panel
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions.

Available Now

Available through Ness Corporation and authorised Australian security-system distributors; check current stock with the supplying distributor.
