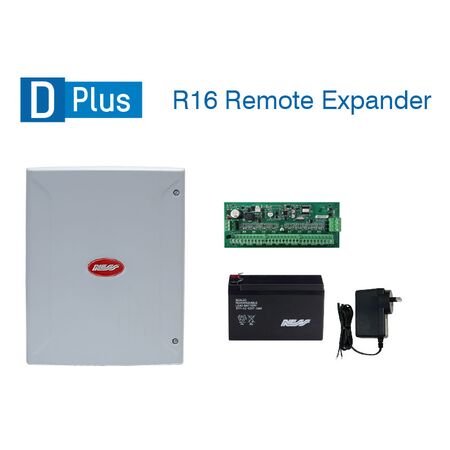

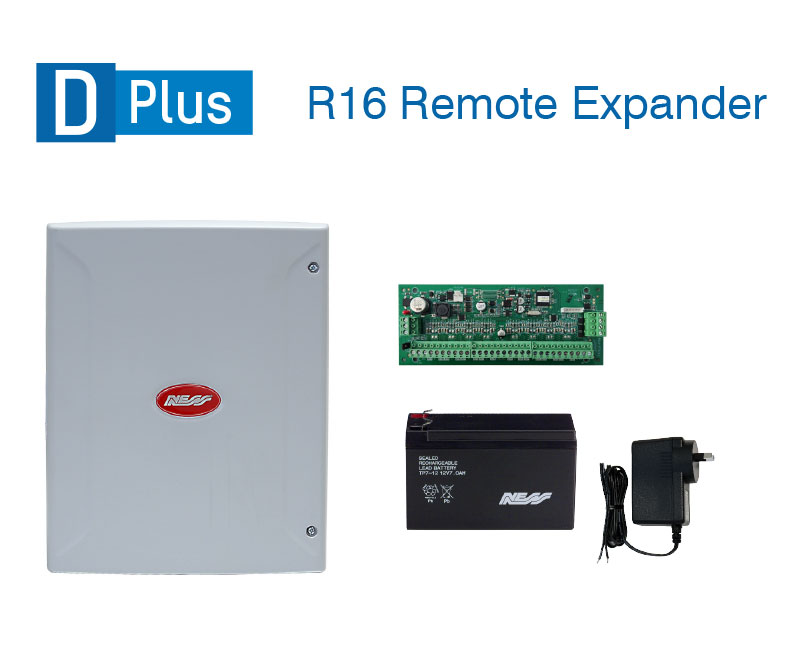

16 Zone Remote Expander Kit DPlus-R16 Cat5/6 Plastic Box Ness
Ness 16 zone remote expander kit features Cat5/6 compatibility and a plastic box. Ideal for expanding DPlus alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness DPlus R16 Remote Expander, 16-Zone Alarm Expander, DPlus Remote Zone Expansion Module
Technical Specifications
- Model: DPlus-R16
- SKU: 106-984-P
- Additional Zones: 16 hardwired zones
- System Capacity: Up to 32 hardwired zones when used with a DPlus base panel and L16 expander
- Connection: 4-wire bus via Cat5/6 cable
- Maximum Cable Distance: Up to 100 m from the main panel
- Recommended Power Supply: 20 VDC plug pack at the remote location
- Backup Battery: 12 V 7 Ah sealed lead-acid rechargeable battery
- Housing: Plastic enclosure
- Included Accessories: Plug pack and backup battery
- Manufacturing: Made in Australia
- Dimensions (H x L x W): 300mm x 235mm x 90mm
- Weight: 4 kg
Key Features
- Adds 16 remote hardwired zones to a compatible Ness DPlus alarm system
- Supports decentralised zone expansion without routing all zone wiring to the main panel
- Connects to the DPlus base panel through a 4-wire Cat5/6 bus
- Supports cable runs of up to 100 m
- Supplied as a complete kit with plastic housing, plug pack and backup battery
- Designed for use with the DPlus L16 local expander and zones 17–32
- Includes local backup power capability at the remote location
Professional Installation Requirements
- Installation should be performed by a qualified security alarm technician. The kit includes a 20 VDC plug pack and rechargeable backup battery, and installation should follow the manufacturer's instructions and applicable wiring requirements.
Applications
- Residential security alarm systems
- Commercial security alarm systems
- Small business and office intruder alarm installations
- DPlus systems requiring additional remote hardwired zones
- Distributed alarm installations where zone wiring is located away from the main panel
Standards & Compliance
- Applicable installation reference: AS/NZS 2201.1:2007 for the design, installation, commissioning and maintenance of intruder alarm systems at client premises
Environmental Benefits
- Extends the service life of an existing DPlus alarm system by adding zones without replacing the base panel
- Uses a rechargeable sealed lead-acid backup battery rather than disposable primary batteries
- Plastic housing and electronic components should be disposed of through appropriate electrical and battery recycling channels at end of life
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness Corporation's product warranty terms.
Available Now
Available through Ness and authorised Australian security and electrical distributors.
