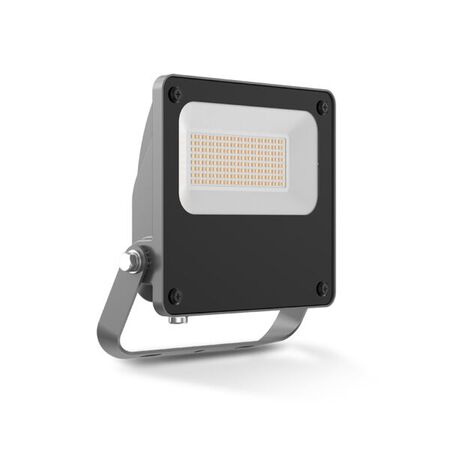

160W Power Switch Flood Light | Tri-CCT | IP66 Rated | Adjustable | by Ektor
The 160W Power Switch Flood Light is designed for versatile outdoor lighting, featuring adjustable tri-colour temperature options (3000K, 4000K, 5000K) and an impressive total system efficiency of up to 173 lm/W. With an IP66 rating for dust and water resistance, this flood light is perfect for commercial and industrial applications, ensuring reliable performance in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tri-CCT Flood Light, Adjustable LED Floodlight, Outdoor Power Switch Floodlight, Photocell Flood Light
Technical Specifications
- Total System Efficiency: up to 173 lm/W
- Colour Rendering Index (CRI): >70
- Beam Angle: 120°
- Colour Temperature Options: 3000K (Warm White), 4000K (Cool White), 5000K (Daylight)
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Power Factor: 0.95
- Inrush Current: 40 A
- Inrush Duration: 200 µS (50%)
- Surge Protection: 4kV L-N and 4kV L/N-PE
- Earth Leakage: 0.75 mA
- Driver Type: Fixed output, constant current
- Driver Included: Yes, integrated
- Wiring Type: Flying leads (3 wire)
- Working Temperature Range: up to 50 °C
- Dimensions (H x L x W): 250mm x 350mm x 300mm
- Weight: 5 kg
Key Features
- Adjustable flood light with tri-colour temperature (3000K, 4000K, 5000K)
- High total system efficiency up to 173 lm/W
- IP66 rated for dust and water resistance
- IK08 impact resistance rating
- Powdercoated black aluminium body with glass diffuser
- Surface mount installation
- Inline switch type with 1500 mm flying leads
- Surge protection of 4kV L-N and L/N-PE
- Power factor of 0.95
- Constant current fixed output driver included
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Outdoor lighting for commercial and industrial areas
- Security lighting
- Building facades and landscape illumination
- Sports grounds and parking lots
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.5 – Floodlights
- AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
Environmental Benefits
- High efficiency LED technology reduces energy consumption
- Long lifespan reduces waste and replacement frequency
- Surge protection enhances durability and reduces electronic waste
Warranty Information
5 years return to base warranty for commercial use.
Available Now
The Ektor 160W Power Switch Flood Light with Photocell and Tri-CCT is available for immediate purchase, ideal for commercial and industrial outdoor lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
