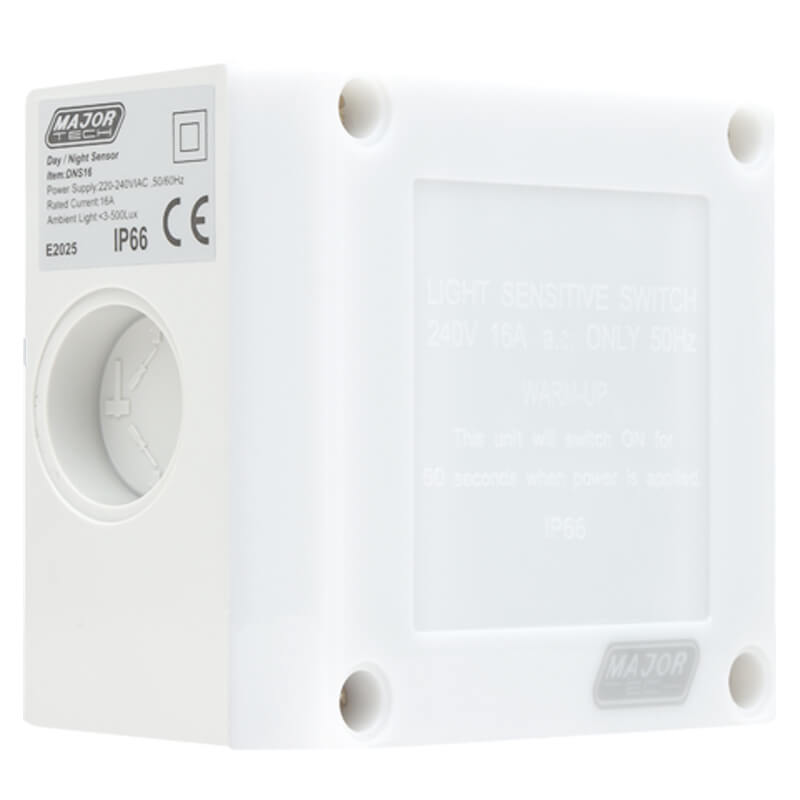

16A Day/Night Light Sensor | IP66 Waterproof | Adjustable Lux Level | Timer Settings | by Majortech
The 16A Day/Night Light Sensor is designed to automatically control lighting based on ambient light levels, making it perfect for outdoor and industrial applications. With an adjustable lux range from 3 to 50 Lux and customizable timer settings, this sensor enhances energy efficiency by activating lights only when needed. Its robust IP66 waterproof rating ensures reliable performance in harsh environments, making it ideal for security and commercial lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Day Night Sensor, Light Sensor Switch, Automatic Light Controller, Dusk to Dawn Sensor
Technical Specifications
- Function: Automatic on/off based on ambient light and timer.
- Ambient Light Range: 3 to 50 Lux (Adjustable).
- Voltage: 220 to 240V AC.
- Power Frequency: 50/60Hz.
- Rated Current: 16A.
- Timer Settings: 1 to 9 hours or Dusk to Dawn.
- Mounting: Walls and Ceilings.
- Working Temperature: -20°C to 40°C.
- Working Humidity: <93% RH.
- IP Rating: IP66 waterproof.
- Standards: IEC 60669-1 / 60669-2-1, AS/NZS 60669.1 / 60669.2.1.
- Dimensions (H x L x W): 70mm x 60mm x 100mm
- Weight: 0.3 kg
Key Features
- Automatically turns lighting on or off at dusk and dawn based on ambient light levels.
- Adjustable lux level settings from 3 to 50 Lux.
- Customizable timer settings from 1 to 9 hours or dusk to dawn.
- Robust 16A rated current suitable for various lighting loads.
- IP66 waterproof rating for outdoor and harsh environment use.
- Unique wall-box design with six knockouts for flexible installation.
- Includes adaptors and covers for easy setup.
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure safety and compliance with electrical standards.
Applications
- Entrances
- Gates
- Offices
- Warehouses
- Outdoor lighting
- Industrial lighting
- Commercial lighting
- Housing applications
- Security lighting
Standards & Compliance
- AS/NZS 60669.1 – Switches for household and similar fixed electrical installations
- AS/NZS 60669.2.1 – Particular requirements for automatic electrical controls
Environmental Benefits
- Enhances energy efficiency by activating lights only when needed at night.
- Reduces unnecessary power consumption and light pollution.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Majortech 16A Day/Night Light Sensor (IP66) is available now for immediate purchase. Ideal for outdoor, industrial, commercial, and security lighting applications.
