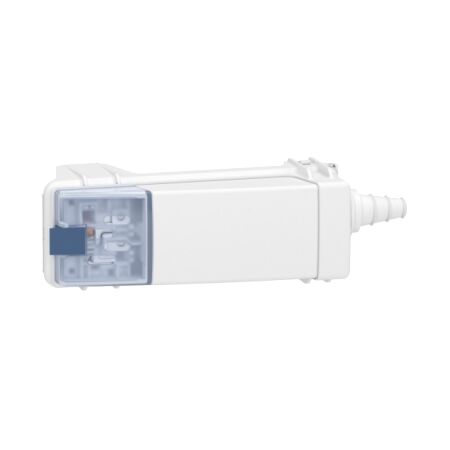

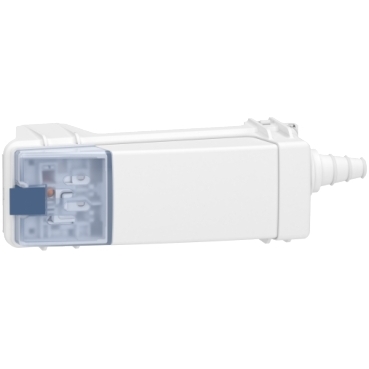

16A Tap-Off Units | 400V AC | IP55 Rated | Integrated Circuit Protection | by Clipsal
The 16A Tap-Off Units are designed for safe and reliable power tapping from Canalis busbar systems, featuring a 400V AC rating and IP55 protection. Ideal for commercial and industrial electrical distribution, these units ensure quick installation with a plug-in connection and integrated circuit protection for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 16A Tap-Off Units | 400V AC | IP55 Rated | Integrated Circuit Protection | by Clipsal
Brand: Clipsal
SKU: SCHKBC16DCB21
Alternatively Known As: Canalis Tap-Off Unit, Schneider Electric Tap-Off, 16A Busbar Tap-Off, Busbar Tap Off Box, Tap Off Plug
Technical Specifications
- Rated current: 16A
- Voltage: 400V AC
- Frequency: 50/60Hz
- Compatible with Canalis KBA/KBB busbar trunking
- Protection: Integrated circuit breaker
- Connection: Plug-in type
- Enclosure material: High-impact thermoplastic
- IP rating: IP55
- Dimensions (H x L x W): 120mm x 250mm x 80mm
- Weight: 2.5 kg
Key Features
- 16A rated tap-off unit for Canalis busbar trunking
- Provides safe and reliable power tapping from busbar systems
- Factory-assembled and tested for quality assurance
- Quick and easy installation with plug-in connection
- Integrated circuit protection for enhanced safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Power distribution in factories, warehouses, and large buildings
- Suitable for use with Schneider Electric Canalis busbar trunking systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient power distribution, reducing energy losses
- Modular design minimizes material waste during installation and upgrades
- Durable construction extends product lifespan, reducing replacement frequency
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 16A Tap-Off Unit SCHKBC16DCB21 is available for immediate purchase. Ideal for commercial and industrial power distribution applications.
