16CH H.265 ONVIF NVR | 4K Resolution | Motion Detection | IP20 Rated | by AJAX
The 16CH H.265 ONVIF NVR is designed for high-performance indoor video surveillance, supporting up to 4K resolution at 25/30 FPS. Ideal for both residential and commercial properties, it seamlessly integrates with ONVIF compliant IP cameras, offering built-in motion detection and advanced video management features. With a bandwidth capacity of up to 100 Mbps, this NVR ensures efficient monitoring and recording for your security needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 16CH H.265 ONVIF NVR | 4K Resolution | Motion Detection | IP20 Rated | by AJAX
Brand: AJAX
SKU: 80216.122.WH
Alternatively Known As: Network Video Recorder, 16 Channel NVR, ONVIF NVR, H.265 NVR, NDAA Compliant NVR
Technical Specifications
- NVR Model: 16-channel with up to 4K resolution (25/30 FPS)
- IP Cameras: ONVIF (Profile S/T), RTSP compatible
- Storage: Supports up to 16 TB SATA HDD (3.5 inch) - HDD not included
- Decoding Formats: H.265, H.264
- Bandwidth: Up to 100 Mbps
- Power: 110–240 V~ operating voltage, indoor installation only
- Ethernet: Up to 100 Mbps
- Bluetooth: BLE frequency band 2.400–2.4835 GHz for Ethernet setup
- Radio Signal Power: 2.5 mW (100 mW limit)
- Motion Detection: Built-in software with image analysis options
- In-app Video Management: Videowall, event filters, timeline preview
- Operating Temperature: 0°C to +40°C
- Operating Humidity: Up to 75%
- Protection Class: IP20
- Dimensions (H x L x W): 47mm x 193mm x 193mm
- Weight: 0.7 kg
Key Features
- Supports 16 channels with up to 4K resolution at 25/30 FPS
- Compatible with ONVIF (Profile S/T) and RTSP IP cameras
- Supports H.265 and H.264 video decoding formats
- Bandwidth capacity up to 100 Mbps
- Built-in motion detection with software analysis options
- In-app video management system with videowall, event filters, and timeline preview
- Bluetooth BLE for Ethernet connection setup

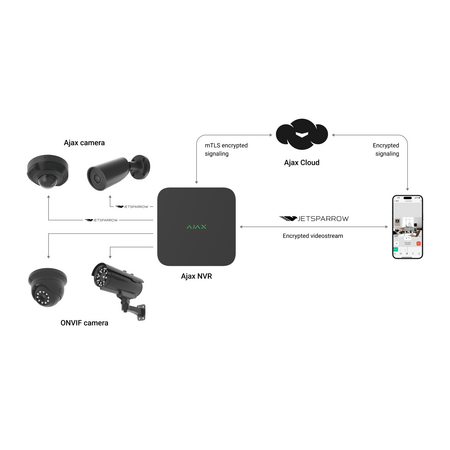

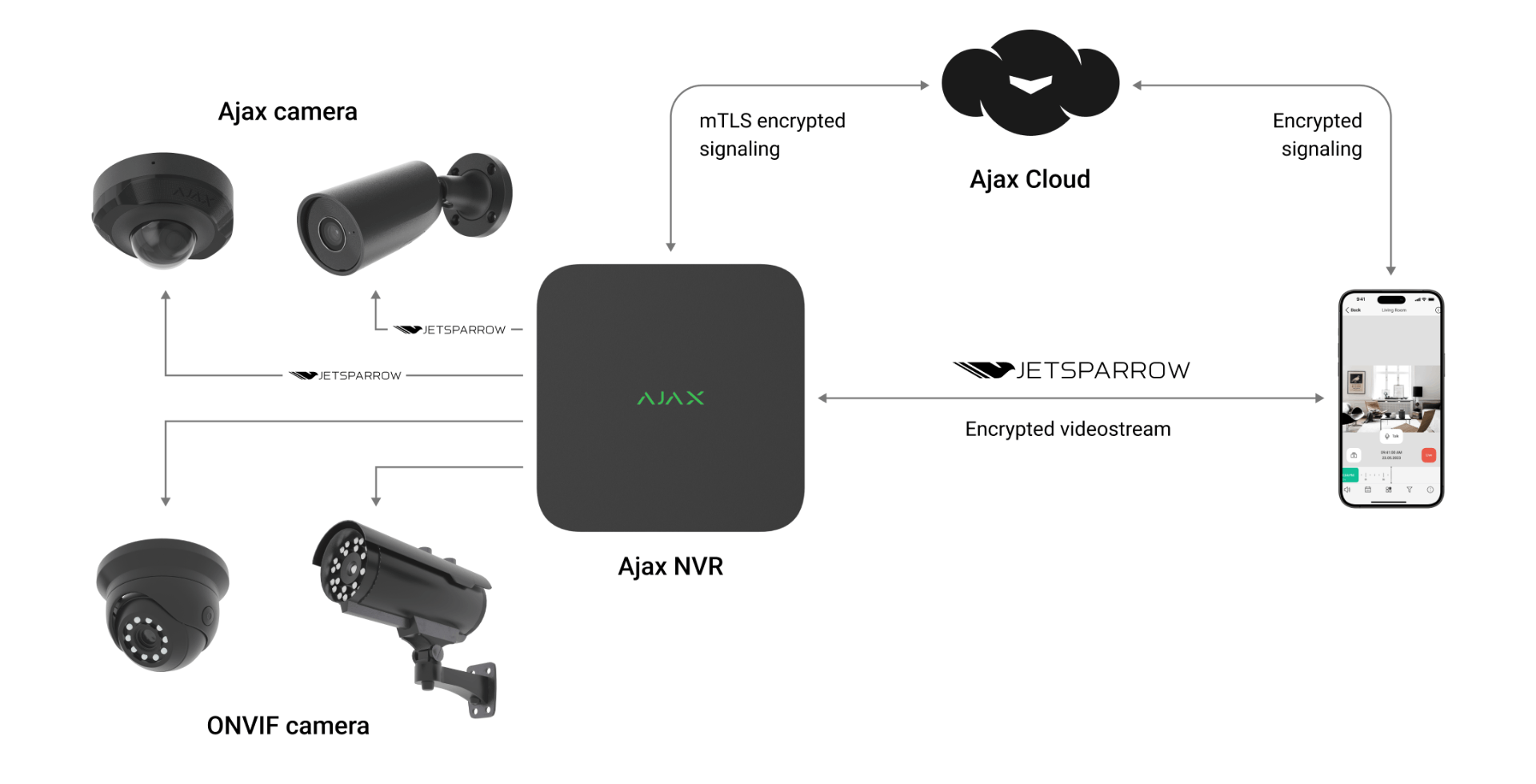

- Privacy features with smooth timeline preview
- IP20 protection class for indoor use
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper setup and network integration.
Applications
- Indoor video surveillance for residential and commercial properties
- Security monitoring with up to 16 IP cameras
- Integration with ONVIF compliant cameras for flexible system setup
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports efficient H.265 video compression reducing storage and bandwidth usage
- Enables centralized video management reducing the need for multiple devices
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX NVR NDAA 16CH H.265 ONVIF White is available for immediate purchase, ideal for indoor security surveillance applications requiring high-resolution multi-channel recording.
