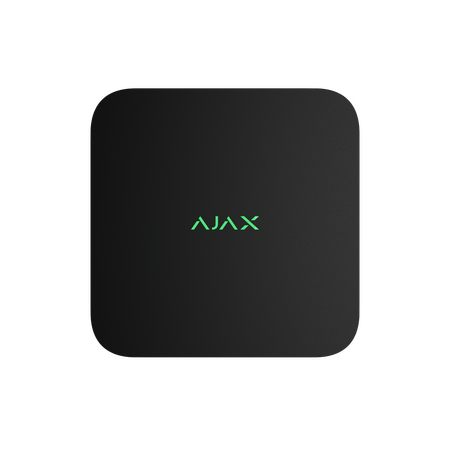

16CH H.265 ONVIF NVR | 4K Resolution | Motion Detection & Video Management | by AJAX
The 16CH H.265 ONVIF NVR is designed for high-performance video surveillance, supporting up to 4K resolution at 25/30 FPS. Ideal for both residential and commercial properties, it integrates seamlessly with Ajax security systems, offering built-in motion detection and advanced video management features. With NDAA compliance and secure data storage within the EU, this NVR ensures reliable and efficient monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 16CH H.265 ONVIF NVR | 4K Resolution | Motion Detection & Video Management | by AJAX
Brand: AJAX
SKU: 80215.122.BL
Alternatively Known As: Network Video Recorder, 16 Channel NVR, H.265 NVR, ONVIF NVR, Ajax Security NVR
Technical Specifications
- 16-channel NVR with up to 4K resolution at 25/30 FPS
- Supports ONVIF (Profile S/T) and RTSP IP cameras
- Storage: Supports hard drives up to 16 TB via SATA (3.5” size), HDD not included
- Video decoding formats: H.265, H.264
- Bandwidth: Up to 100 Mbps
- Power: Operating voltage 110–240 V~, designed for indoor installation only
- Ethernet: Up to 100 Mbps
- Bluetooth: BLE frequency band 2.400–2.4835 GHz for Ethernet setup
- Radio signal power: 2.5 mW (100 mW limit)
- Motion detection: Built-in software with option to switch between NVR or camera algorithms
- In-app video management: Videowall, event filters, timeline with smooth preview
- Operating temperature range: 0°C to +40°C
- Operating humidity: Up to 75%
- Protection class: IP20
- Dimensions (H x L x W): 47mm x 193mm x 193mm
- Weight: 0.7 kg
Key Features
- 16-channel NVR supporting up to 4K resolution at 25/30 FPS
- Compatible with ONVIF (Profile S/T) and RTSP IP cameras
- Supports hard drives up to 16 TB via SATA (3.5” size) - HDD not included
- H.265 and H.264 video decoding formats
- Up to 100 Mbps bandwidth and Ethernet speed
- Built-in motion detection software with option to switch between NVR or camera algorithms
- In-app video management system with videowall, event filters, and smooth timeline preview
- Visual verification of Ajax alarms with camera-triggered recording
- Privacy controls with access rights distribution for users and operators
- NDAA-compliant with components approved by US government
- Data securely stored within the European Union complying with EU data protection standards
- Underwent independent cybersecurity testing for safety and reliability
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper integration with Ajax systems and compliance with electrical safety standards.
Applications
- Video surveillance for residential and commercial properties

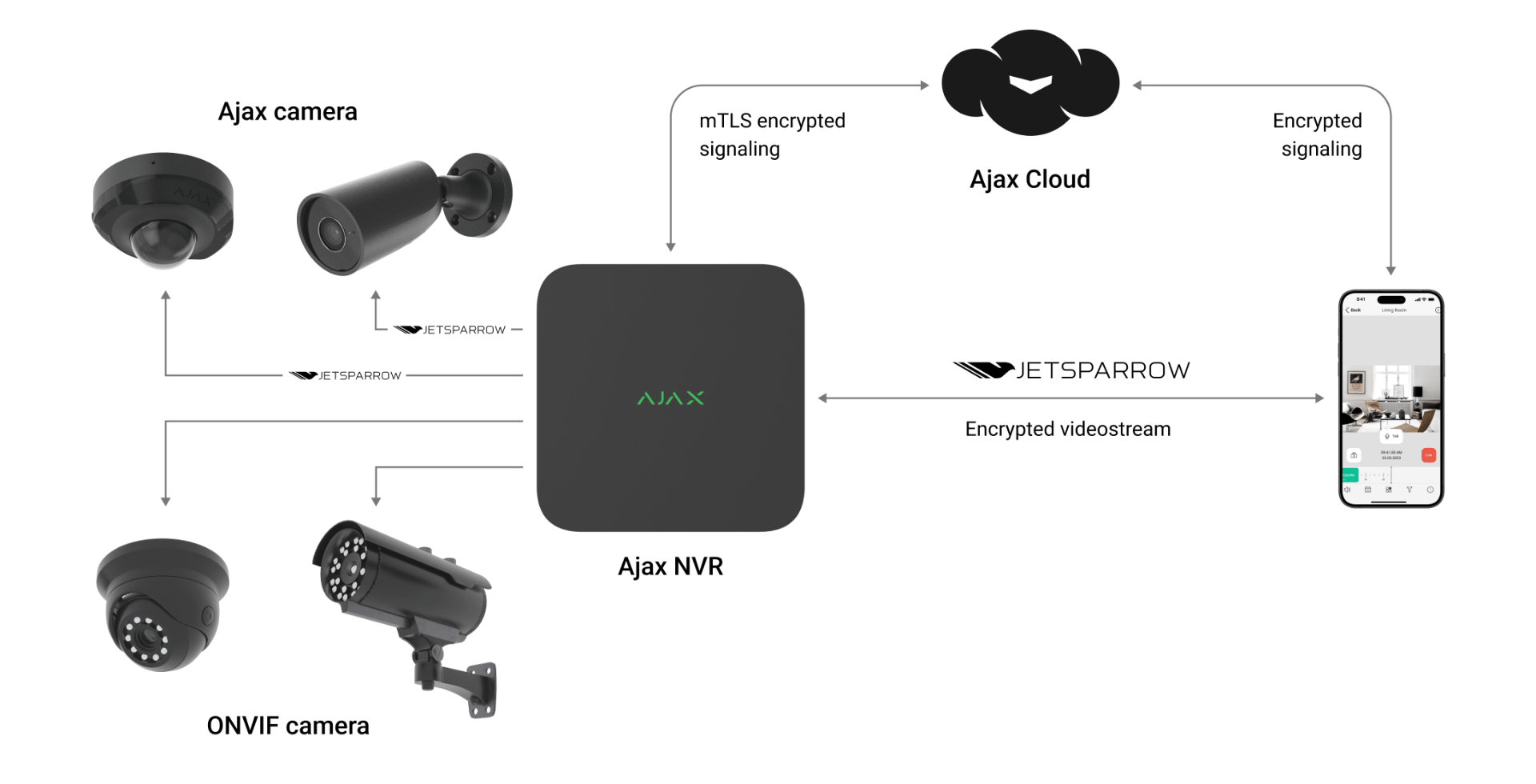

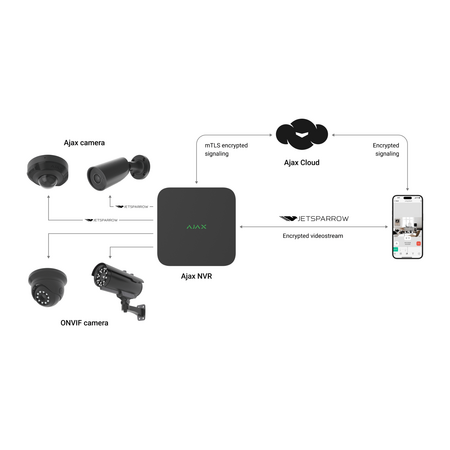

- Integration with Ajax security systems for intrusion protection and automation
- Remote video archive access and monitoring via mobile and desktop apps
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports efficient H.265 video compression reducing storage and bandwidth usage
- Enables remote monitoring reducing the need for physical site visits
Warranty Information
24 months warranty.
Available Now
The AJAX NVR NDAA 16CH H.265 ONVIF Black is available for immediate purchase, ideal for professional video surveillance and security system integration.
