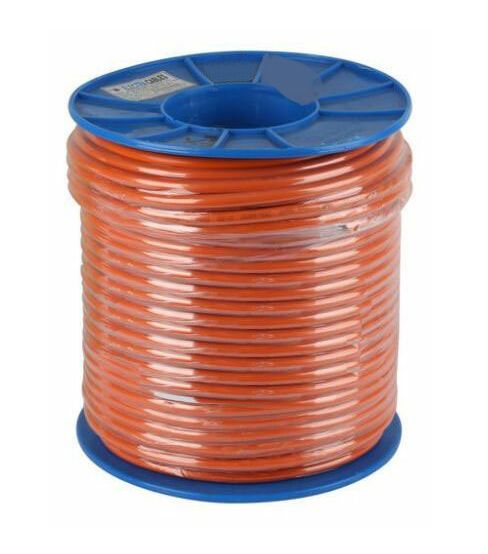

16mm² 3 Core + Earth Orange Circular Cable | XLPE Insulation | 0.6/1kV Rated | @M of 100 | by Electra Cables
The 16mm² 3 core + Earth orange circular cable is designed for reliable power distribution in commercial and industrial settings. With XLPE insulation for superior thermal performance and a durable orange PVC sheath for easy identification, this cable is perfect for both underground and above-ground installations. Supplied in a convenient 100m roll, it meets AS/NZS standards for safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 16mm² 3 Core + Earth Orange Circular Cable | XLPE Insulation | 0.6/1kV Rated | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: XLPE3160E-100OR
Alternatively Known As: 16mm 3 core and earth cable, 16mm orange circular cable, XLPE3160E-100OR, 16mm² 3C+E cable, 16mm electrical mains cable
Technical Specifications
- Conductor Size: 16mm²
- Number of Cores: 3 + Earth
- Insulation: Cross-linked Polyethylene (XLPE)
- Sheath: Orange PVC
- Voltage Rating: 0.6/1kV
- Roll Length: 100m
- Operating Temperature: -15°C to +90°C
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 25mm x 100000mm x 25mm
- Weight: 65 kg
Key Features
- 16mm² cross-sectional area for high current capacity
- 3 core plus earth configuration for enhanced safety
- XLPE insulation for superior thermal and electrical performance
- Durable orange PVC sheath for easy identification and mechanical protection
- Supplied in a 100m roll for convenience in large installations
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Suitable for mains and submains power distribution
- Ideal for commercial and industrial electrical installations
- Used in underground and above-ground installations
- Appropriate for fixed wiring in buildings and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables – Polymeric insulated
Environmental Benefits
- XLPE insulation is free from halogens, reducing toxic emissions in case of fire
- Long service life reduces the need for frequent replacements
- Recyclable copper conductors
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
Available for immediate purchase. Ideal for commercial, industrial, and infrastructure electrical installations requiring robust and compliant power cabling.
