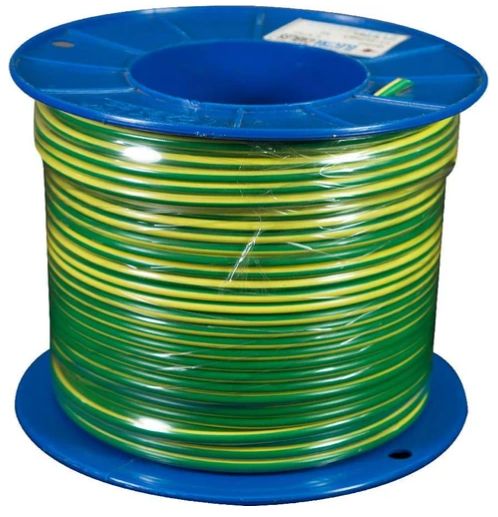

16mm Earth Green Yellow Building Wire | 7/1.7mm Stranded Copper | PVC Insulation | @M of 100 | by Electra Cables
16mm Earth Green Yellow Building Wire is designed for reliable electrical installations, featuring a 7/1.7mm stranded copper conductor and durable PVC insulation. Ideal for residential, commercial, and industrial applications, this wire ensures high current capacity and compliance with AS/NZS standards, making it perfect for earthing systems and wiring projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 16mm Earth Green Yellow Building Wire | 7/1.7mm Stranded Copper | PVC Insulation | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: SR1160-100G/Y
Alternatively Known As: 16mm earth wire, green yellow earth cable, 16mm building wire, 16mm² earth cable, earthing wire 16mm, SR1160-100G/Y
Technical Specifications
- Conductor: Stranded copper, 7/1.7mm
- Cross-sectional area: 16mm²
- Insulation: PVC, green/yellow
- Voltage rating: 0.6/1kV
- Roll length: 100m
- Operating temperature: -15°C to +90°C
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 16mm x 100000mm x 16mm
- Weight: 13.5 kg
Key Features
- 16mm² cross-sectional area for high current capacity
- Green/yellow insulation for earth/ground identification
- Stranded copper conductor (7/1.7mm) for flexibility
- Supplied in a 100m roll for convenience
- PVC insulation for durability and safety
- Low smoke, halogen-free insulation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential and commercial electrical installations
- Earthing systems in buildings
- Industrial wiring projects
- Suitable for use in conduit, duct, or trunking
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables for working voltages up to and including 0.6/1kV
Environmental Benefits
- Low smoke, halogen-free insulation reduces toxic emissions in case of fire
- Durable construction extends product lifespan, reducing replacement frequency
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for use in residential, commercial, and industrial earthing and wiring applications.
