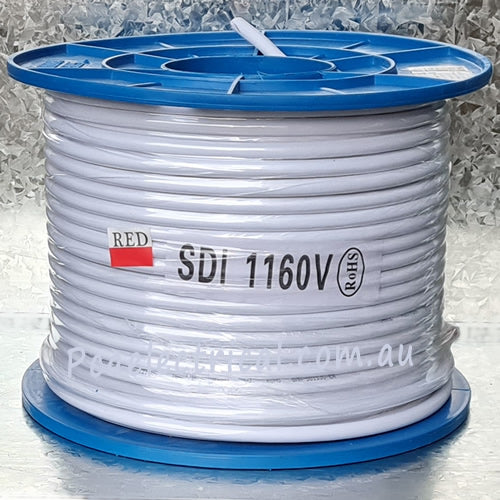

16.0mm SDI Red Electrical Cable | Double Insulated | UV Stabilised & Flame Retardant | @M of 100 | by Electra Cables
The 16.0mm SDI Red Electrical Cable is designed for high current capacity with its double insulated, single core structure. Ideal for switchboards and power distribution in residential, commercial, and industrial settings, this cable features UV stabilised and flame retardant insulation for enhanced safety and longevity. Supplied in a convenient 100m reel, it ensures easy installation and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 16.0mm SDI Red Electrical Cable | Double Insulated | UV Stabilised & Flame Retardant | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: SDI1160V-100RED
Alternatively Known As: 16mm SDI Cable, 16mm Single Core Cable, 16mm² Red Electrical Cable, SDI1160V-100RED, 16mm Switchboard Cable
Technical Specifications
- Conductor Size: 16.0mm²
- Conductor Material: Plain annealed copper
- Insulation: V-90 PVC, double insulated
- Colour: Red
- Voltage Rating: 0.6/1kV
- Length: 100m
- Operating Temperature: -15°C to +90°C
- UV Stabilised: Yes
- Flame Retardant: Yes
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 16mm x 100000mm x 16mm
- Weight: 18.5 kg
Key Features
- Single core, double insulated cable
- 16.0mm² cross-sectional area for high current capacity
- Red insulation for easy phase identification
- Supplied in a 100m reel for convenience
- UV stabilised and flame retardant insulation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules.
Applications
- Suitable for switchboards and control panels
- Ideal for power distribution in commercial and industrial installations
- Used in residential, commercial, and industrial electrical wiring
Standards & Compliance
- Complies with AS/NZS 5000.1 – Electric cables with extruded insulation and low voltage
Environmental Benefits
- UV stabilised insulation extends cable lifespan and reduces replacement frequency
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for use in switchboards, control panels, and power distribution in residential, commercial, and industrial settings.
