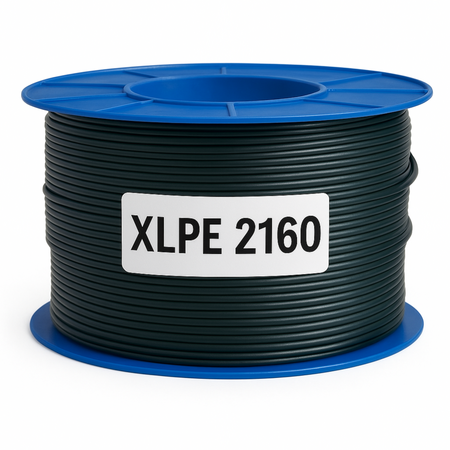

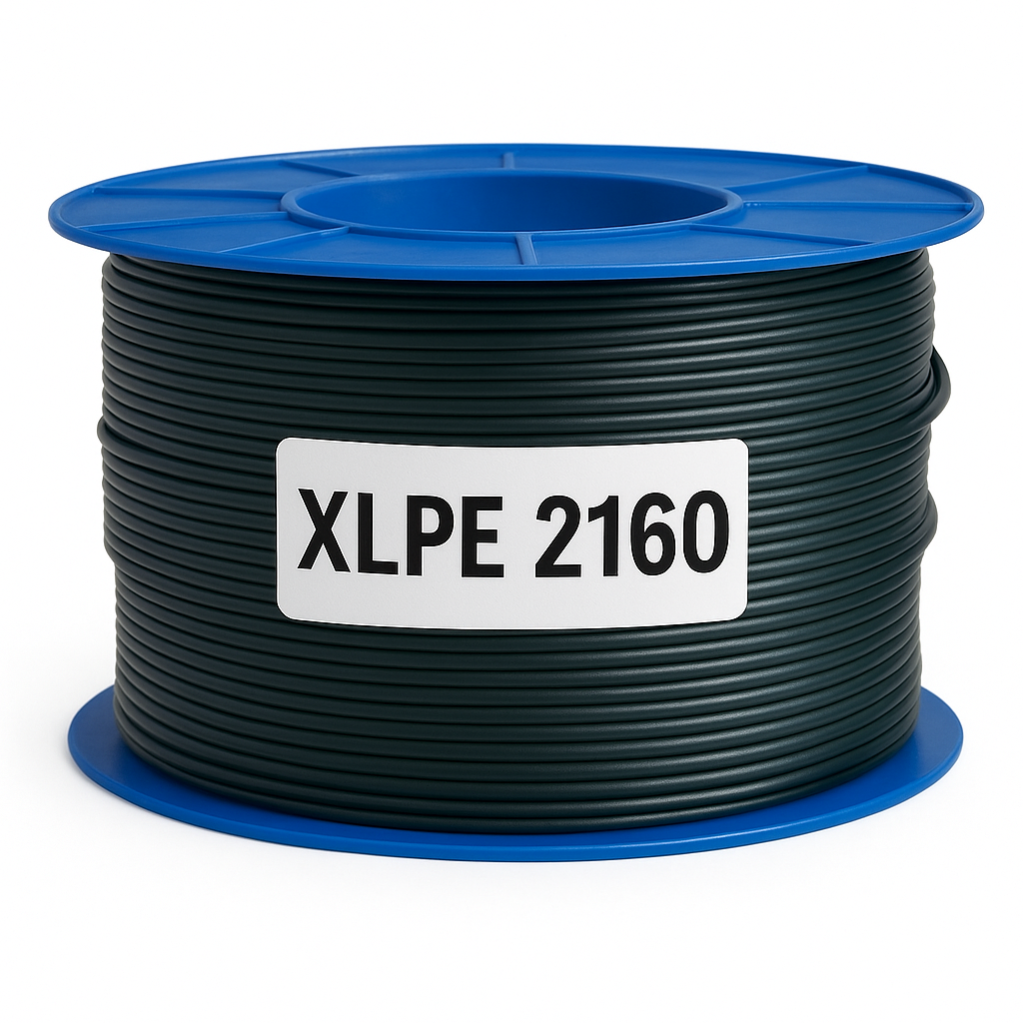

16mm² XLPE Twin Cable | 2 Core | 7 Strands of 1.70mm | 0.6/1kV Rated | by Electra Cables
The 16mm² XLPE Twin Cable is designed for reliable electrical installations, featuring a durable 2 core construction with 7 strands of 1.70mm diameter. Ideal for fixed wiring in residential, commercial, and industrial applications, this cable is rated for 0.6/1kV and operates safely at temperatures up to 90°C, ensuring long-lasting performance and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 16mm² XLPE Twin Cable, 2 Core XLPE Cable, 16mm Electrical Cable, XLPE Insulated Power Cable
Technical Specifications
- Conductor Size: 16mm²
- Conductor Construction: 7 strands of 1.70mm diameter
- Number of Cores: 2
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Sheath Material: Black PVC
- Voltage Rating: 0.6/1kV
- Temperature Rating: 90°C
- Cable Length: 100 meters
- Dimensions (H x L x W): 16mm x 100000mm x 16mm
- Weight: 2.5 kg
Key Features
- 16mm² conductor size with 7 strands of 1.70mm diameter
- Two-core cable with XLPE insulation
- Black PVC outer sheath for durability
- Rated for 0.6/1kV voltage
- Certified to operate safely at 90°C
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Fixed wiring in residential buildings
- Commercial electrical installations
- Industrial power distribution
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- XLPE insulation provides enhanced durability and longer lifespan reducing waste
- PVC sheath is recyclable and protects cable from environmental damage
Warranty Information
Standard manufacturer warranty applies, typically 5 years against manufacturing defects.
Available Now
The Electra Cables 16MM 7/1.70x 2C XLPE Twin Cable 100M is available for immediate purchase, ideal for fixed wiring in residential, commercial, and industrial applications.
