Trade Discount 25%

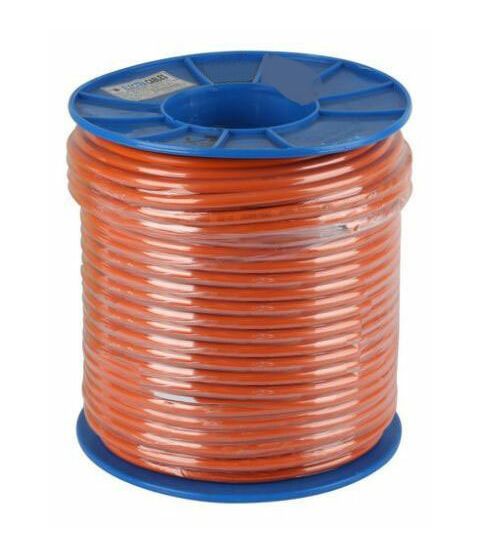

16mm² 2 Core + Earth Orange Circular Cable | XLPE Insulation | 0.6/1kV Rated | @M of 100 | by Electra Cables
The 16mm² 2 core + Earth orange circular cable is designed for reliable power distribution, featuring XLPE insulation for superior thermal and electrical properties. Ideal for commercial, industrial, and residential installations, this durable cable comes in a convenient 100m roll, ensuring compliance with AS/NZS standards for safety and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 16mm² 2 Core + Earth Orange Circular Cable | XLPE Insulation | 0.6/1kV Rated | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: XLPE2160E-100OR
Alternatively Known As: 16mm 2 core and earth cable, 16mm orange circular cable, XLPE2160E-100OR, 16mm² mains cable, 2C+E orange cable
Technical Specifications
- Conductor Size: 16mm²
- Number of Cores: 2 + Earth
- Insulation: Cross-linked Polyethylene (XLPE)
- Sheath: Orange PVC
- Voltage Rating: 0.6/1kV
- Roll Length: 100m
- Operating Temperature: -15°C to +90°C
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 20mm x 100000mm x 20mm
- Weight: 45 kg
Key Features
- 16mm² cross-sectional area for high current capacity
- 2 core plus earth configuration for safety and compliance
- XLPE insulation for superior thermal and electrical properties
- Durable orange PVC sheath for easy identification and added protection
- Supplied in a 100m roll for convenience
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules and local regulations.
Applications
- Suitable for mains and submains power distribution
- Ideal for use in commercial, industrial, and residential electrical installations
- Commonly used for underground and fixed wiring where mechanical protection is required
Standards & Compliance
- Complies with AS/NZS 5000.1 for electric cables with extruded insulation and sheath
Environmental Benefits
- XLPE insulation is free from halogens, reducing toxic emissions in case of fire
- Long service life reduces the need for frequent replacements
- Recyclable copper conductors
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
Available for immediate purchase. Ideal for commercial, industrial, and residential power distribution applications.
