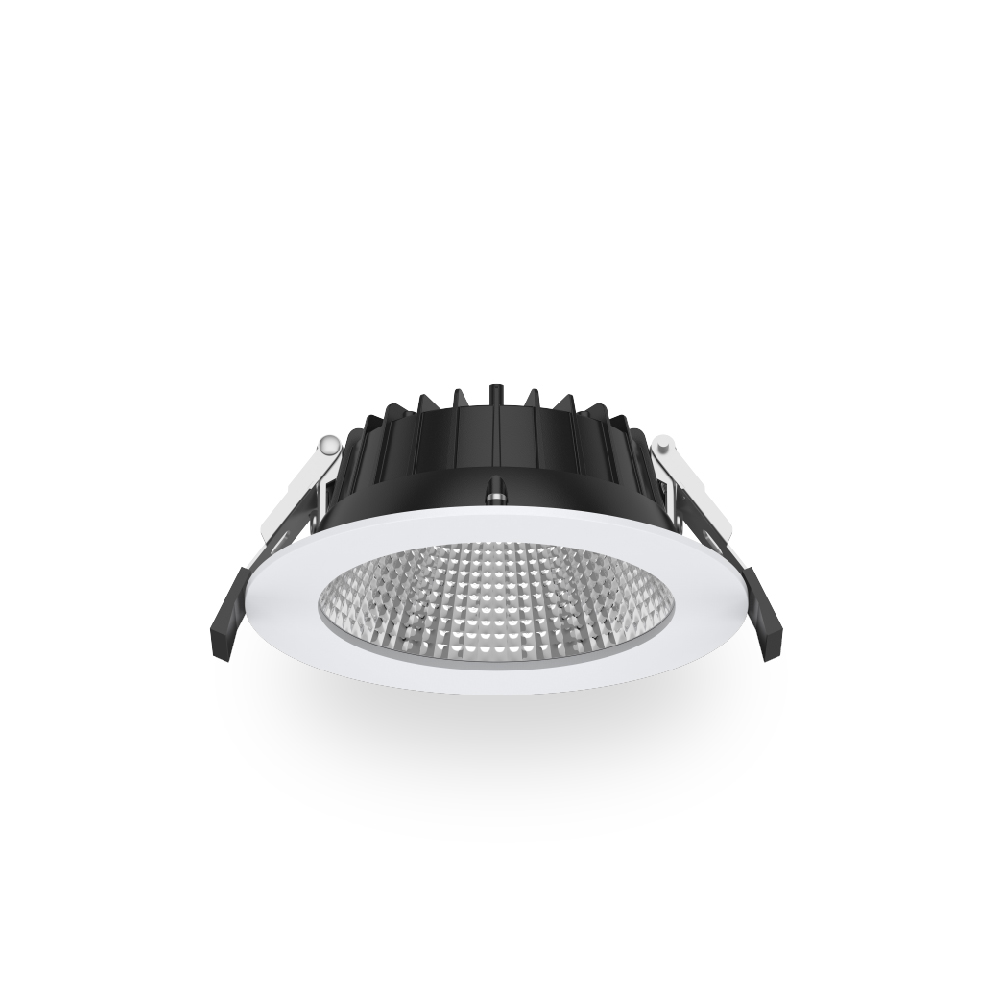

16W LED Downlight with Dimmable Driver | Tri-CCT | IP44 Rated | 60° Beam Angle | by atom
The 16W LED downlight with a dimmable driver offers versatile Tri-CCT options, allowing you to choose between warm white, cool white, and daylight settings. Perfect for both residential and commercial spaces, this recessed light features an IP44 rating for moisture resistance and a 60° beam angle for focused illumination. With a long LED lifetime of over 54,000 hours, it’s designed for efficiency and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED recessed downlight, tri-color temperature LED downlight, dimmable LED ceiling light, white LED downlight
Technical Specifications
- Power: 16W
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Color Rendering Index (CRI): >80
- Beam Angle: 60°
- LED Voltage: 36 V
- LED Current: 400 mA
- IP Rating: IP44 front face only
- IC Rating: IC-4
- Operating Temperature Range: -10 to 40 °C
- Driver Type: Dimmable (phase cut), constant current
- Flex & Plug Length: 1200 mm
- UGR: <19
- Macadam Steps: 5-step MacAdam ellipse
- LED Lifetime: >54,000 hours (TM-21 report)
- Dimensions (H x L x W): 80mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- Tri-CCT configuration with warm white (3000K), cool white (4000K), and daylight (5700K) options
- Dimmable driver with phase cut technology
- High system efficiency up to 137 lm/W
- IP44 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Fixed adjustability with powder-coated white finish
- Long LED lifetime greater than 54,000 hours
- 5-step MacAdam ellipse for consistent color quality
- Beam angle of 60° for focused lighting
- Inline switch type with re-wireable flex and plug
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential lighting: homes, apartments, and living spaces
- Commercial lighting: offices, retail, hospitality
- Recessed ceiling installations requiring adjustable color temperature lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for D.C. or A.C. Supplied Electronic Control Gear for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High energy efficiency reduces electricity consumption
- Long LED lifespan minimizes waste and replacement frequency
- Compliant with energy savings schemes (Ipart, REES, VEU)
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The Atom 16W LED Downlight with dimmable driver is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
