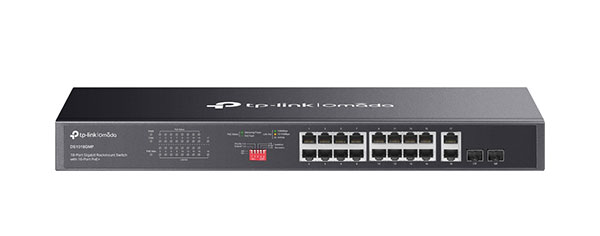

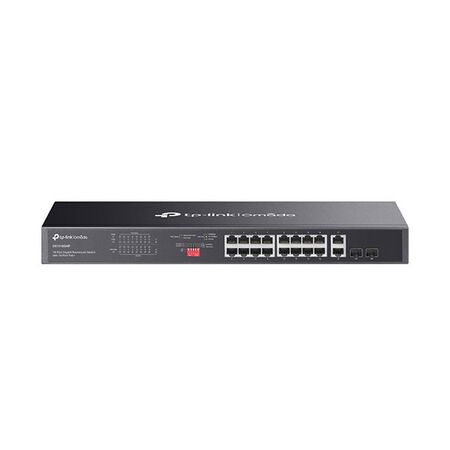

18-Port Gigabit PoE+ Switch 250W Rackmount TP-Link Ness
Ness TP-Link 18-port gigabit PoE+ switch features a 250W power budget and rackmount design. Ideal for CCTV and network installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TP-Link DS1018GMP, 18-Port PoE+ Switch, 16-Port Gigabit PoE+ Switch, 250W PoE Switch
Technical Specifications
- Model: DS1018GMP
- Network Ports: 16× 10/100/1000 Mbps PoE+ RJ45 ports
- Uplink Ports: 2× combo Gigabit SFP slots
- PoE Standard: IEEE 802.3af/at
- PoE Power Budget: 250 W total
- Maximum PoE Output: 30 W per port
- Switching Capacity: 36 Gbps
- Packet Forwarding Rate: 26.78 Mpps
- MAC Address Table: 8K entries
- Jumbo Frame: 10 KB
- Power Supply: 100–240 VAC, 50/60 Hz
- Maximum Power Consumption: 19 W without powered devices; 293.34 W at full PoE load
- Operating Temperature: 0°C to 50°C
- Operating Humidity: 10–90% RH, non-condensing
- Casing: Durable metal
- Mounting: 19-inch rackmountable, 1U
- Certification Markings: CE, FCC and RoHS
- Dimensions (H x L x W): 44mm x 180mm x 440mm
- Weight: 3.03 kg
Key Features
- 16 Gigabit PoE+ ports with a 250 W aggregate power budget
- Two combo Gigabit SFP slots for fibre uplinks
- Plug-and-play unmanaged operation
- PoE Auto Recovery for automatically rebooting unresponsive powered devices
- Extend Mode supports transmission distances up to 250 m on ports 1–4, with port speed reduced to 10 Mbps
- Priority Mode for ports 1–4
- Isolation Mode for separating client traffic
- 802.1p and DSCP Quality of Service support
- Suitable for IP cameras, wireless access points, IP phones and other PoE devices
- Rackmount kit included
Professional Installation Requirements
- No specialist installation is required for the switch itself; connect it to a suitable mains outlet and configure the network cabling in accordance with applicable electrical and structured-cabling requirements.
Applications
- CCTV and IP surveillance installations
- Commercial and small-business networks
- Wireless access point deployment
- VoIP telephone systems
- Network video recorder and security system connections
- Rack-mounted structured network infrastructure
Standards & Compliance
- AS/NZS 62368.1:2026: applicable safety standard for audio/video and information and communication technology equipment; product-specific Australian declaration of conformity was not published in the reviewed sources
Environmental Benefits
- Energy-efficient switching technology can reduce operating power consumption
- PoE combines power and data over a single Ethernet cable, reducing separate power cabling and installation materials
- RoHS marking indicates restriction of specified hazardous substances
- Durable metal construction may support longer service life and reduce replacement waste
Warranty Information
TP-Link Australia lists a 5-year limited warranty for Omada business networking switches purchased in Australia or New Zealand through an authorised retailer, subject to the published warranty terms and Australian Consumer Law.
Available Now
Available through Ness and authorised Australian TP-Link distributors, subject to current stock availability.
