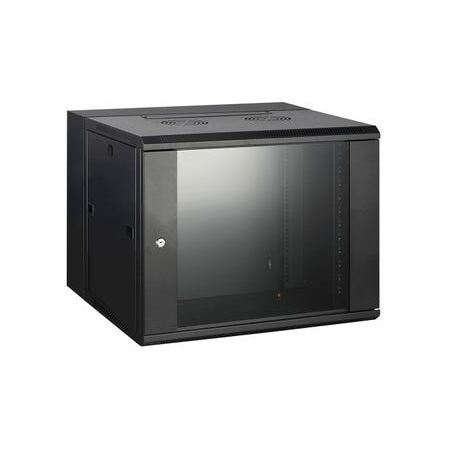

18RU Swing Frame Cabinet 60kg Load Steel Construction Cabac
Cabac Cabac Swing Frame 18RU features Material: SPCC high quality cold rolled steel, Rail thickness: 1.5mm. Suited for server rooms and network installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: SPCC high quality cold rolled steel
- Rail thickness: 1.5mm
- Frame thickness: 1.2mm
- Side panels thickness: 1.0mm
- Weight capacity: 60kg
- Finish: Powder coat
- Standard compliance: ANSI-310-D, IEC 297-2, DIN 41491/41494
- Dimensions (H x L x W): 900mm x 600mm x 600mm
- Weight: 20 kg
Key Features
- Swing-away feature for full rear access to equipment
- Sturdy welded frame from SPCC high quality cold rolled steel
- Rails thickness: 1.5mm, frame thickness: 1.2mm, side panels: 1.0mm
- Supports up to 60kg weight load when properly installed
- Fully assembled with powder coat finish
- Includes 6-Way PDU, fixed shelf, and cage nuts
- Designed and built to ANSI-310-D, IEC 297-2, DIN 41491/41494 standards
Professional Installation Requirements
- Professional installation recommended to ensure secure mounting on suitable walls and compliance with manufacturer instructions.
Applications
- Data centers and server rooms
- Telecommunications equipment housing
- Network and IT infrastructure installations
- Underneath stairwells or tight corner installations
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction extends product lifespan reducing waste
- Powder coat finish reduces the need for frequent repainting and maintenance
Warranty Information
Warranty details available upon request from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Cabac Swing Frame 18RU 600W 600D 900H is available for immediate purchase, ideal for server rooms, data centers, and network infrastructure setups.
