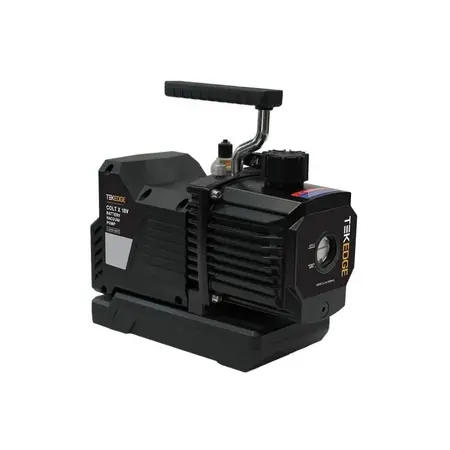

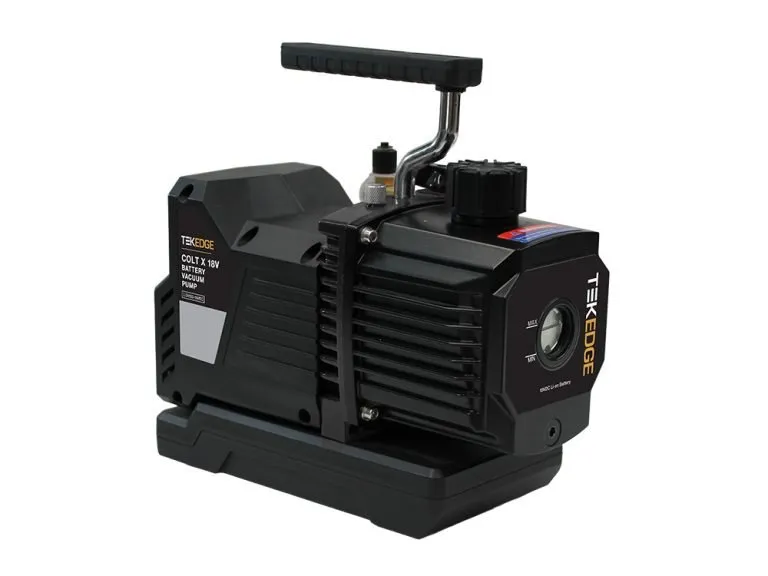

18V Cordless HVAC Vacuum Pump 4CFM w/ Solenoid Valve TEKEDGE
TEKEDGE 18V cordless HVAC vacuum pump, 4CFM, with isolation solenoid valve. Battery-powered evacuation for A/C and refrigeration work.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TEKEDGE Colt X 18V Battery Vacuum Pump, DV120-18VDC, 18V Cordless HVAC Vacuum Pump, Double Stage Vacuum Pump
Technical Specifications
- Model: DV120-18VDC
- Pump Type: Double stage vacuum pump
- Free Air Displacement: 4.3CFM / 120L/min
- Power: 190W
- Voltage: 18V DC
- Ultimate Vacuum: 15 microns / 2 Pa
- Oil Capacity: 300ml
- Dimensions: 271 x 120 x 260mm
- Weight: 7kg
- Dimensions (H x L x W): 260mm x 271mm x 120mm
- Weight: 7 kg
Key Features
- Double-stage vacuum pump design
- 18V DC battery-powered operation
- 4.3CFM / 120L/min free air displacement
- 190W power output
- 15 micron / 2 Pa ultimate vacuum
- Integrated isolation solenoid valve
- 300ml oil capacity
- Cordless design for portable HVAC service work
- Suitable for A/C and refrigeration evacuation applications
Professional Installation Requirements
- Use by a suitably trained HVAC or refrigeration technician is recommended. Follow the equipment manufacturer's operating instructions and applicable workplace safety procedures when evacuating A/C and refrigeration systems.
Applications
- Air conditioning system evacuation
- Refrigeration system evacuation
- HVAC installation and servicing
- Air conditioning maintenance
- Refrigeration maintenance and service work
- Portable field HVAC service applications
Environmental Benefits
- Cordless battery-powered operation provides flexibility for field service applications
- Portable design can reduce the need for mains power access at the work location
Warranty Information
Warranty information should be confirmed with Aspen Pumps Australia or the authorised distributor.
Available Now
Available from Aspen Pumps Australia.
