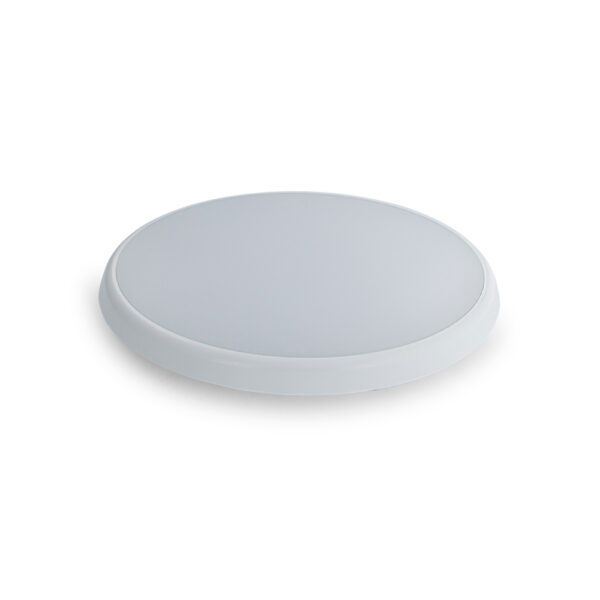

18W LED 300mm Round Low Profile Dimmable | IP54 Rated | TRI-CCT Color Options | by atom
The 18W LED 300mm Round Low Profile Dimmable light is perfect for both residential and commercial spaces, offering IP54 protection against dust and water. With TRI-CCT color temperature options (3000K, 4000K, 5700K) and a high efficiency of up to 111 lm/W, this versatile fixture ensures optimal lighting for any environment. Its durable polycarbonate construction and dimmable feature make it an ideal choice for energy-efficient lighting solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 18W LED Oyster Light, Round LED Ceiling Light, Low Profile LED Panel, Dimmable LED Downlight, TRI-CCT LED Light
Technical Specifications
- Total System Efficiency: up to 111 lm/W
- IP Rating: IP54
- IK Rating: IK08
- Colour Rendering Index (CRI): >80
- Colour Temperature Options: 3000K, 4000K, 5700K (TRI-CCT)
- LED Lifetime: >54,000 hours (L70B10)
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Input Current: 0.1 A (for 18W model)
- Driver Type: Dimmable phase cut, integrated constant current
- Operating Temperature Range: -20 to 45 °C
- Wiring: Re-wireable terminal block (3 pin)
- Installation Type: Wall or ceiling fixed mount
- Dimensions (H x L x W): 50mm x 300mm x 300mm
- Weight: 0.8 kg
Key Features
- Dimmable LED with phase cut driver
- TRI-CCT colour temperature configuration (3000K, 4000K, 5700K)
- IP54 rated for dust and water resistance
- IK08 impact resistance
- Polycarbonate body and diffuser for durability
- Fixed adjustability
- Integrated constant current driver with re-wireable terminal block
- High system efficiency up to 111 lm/W
- Long LED lifetime greater than 54,000 hours (L70B10 rating)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Wall or ceiling installation in residential and commercial spaces
- Suitable for indoor and outdoor environments requiring IP54 rated lighting
- Ideal for areas needing adjustable colour temperature lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Particular Requirements for Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS 61347.2.13 – Particular Requirements for D.C. or A.C. Supplied Electronic Control Gear for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable feature allows for reduced energy use when full brightness is not needed
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms and conditions.
Available Now
The Atom 18W LED 300mm Round Low Profile Dimmable IP54 Polycarbonate Oyster Light is available for immediate purchase, ideal for residential and commercial wall or ceiling lighting applications.
